DTC P0171, P0174: Fuel Injection System Function
›
Wiring Diagram
›
Bank 2
Bank 2

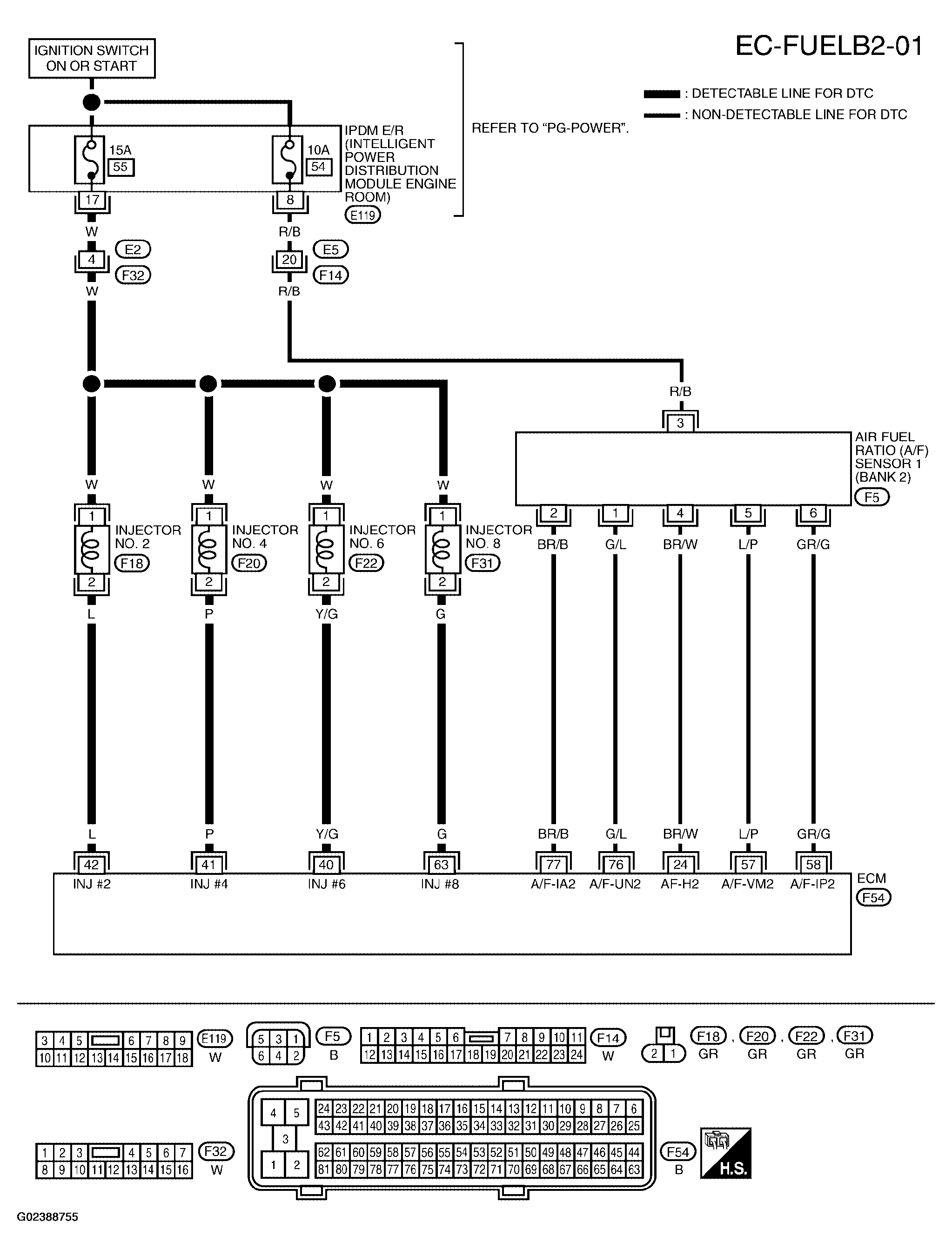

Fig 1: Wiring Diagram - EC-FUELB2-01
