FixVault
Home
›
Infiniti
›
2005
›
QX56 AWD
›
Repair and Diagnosis
›
Steering
›
Power Steering System
›
Service Data And Specifications (SDS)
›
Steering Gear
Steering Gear

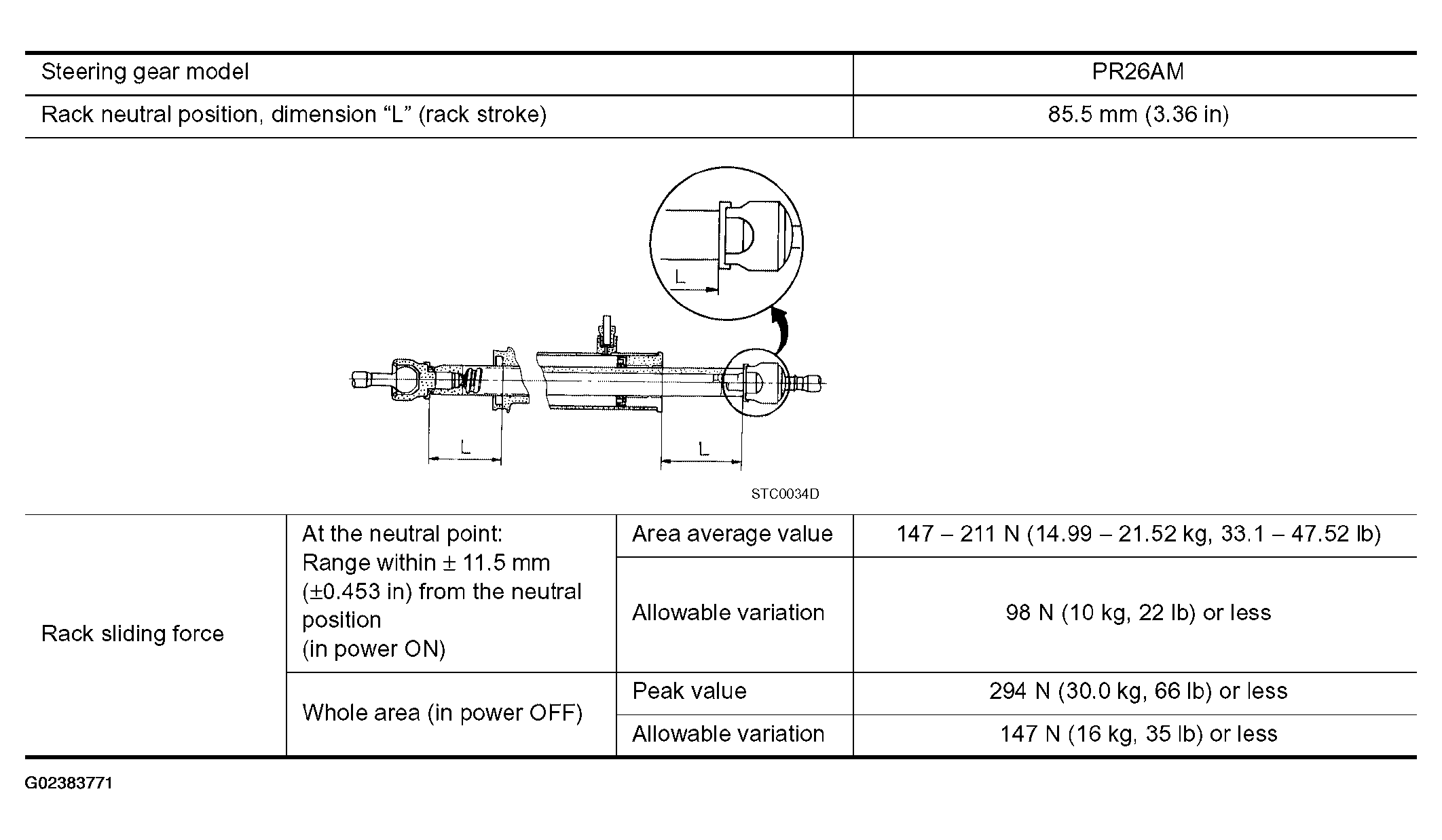

Fig 1: Identifying Steering Gear Rack Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
