Steering Outer Socket and Inner Socket

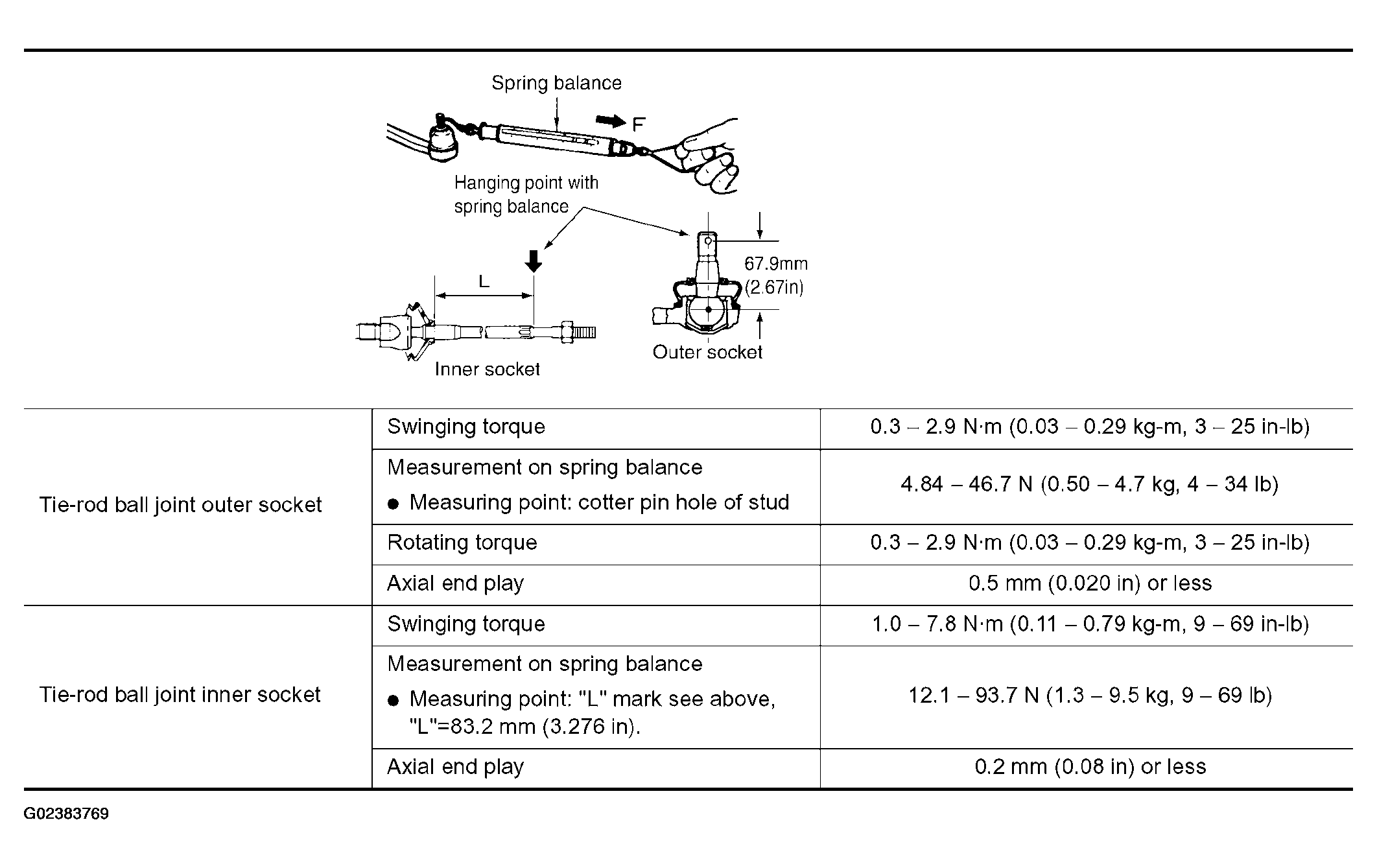

Fig 1: Socket And Ball Joint Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Steering Inner Socket Length

Courtesy of NISSAN MOTOR CO., U.S.A.
