Control Valve, TCM and A/T Fluid Temperature Sensor 2: Components

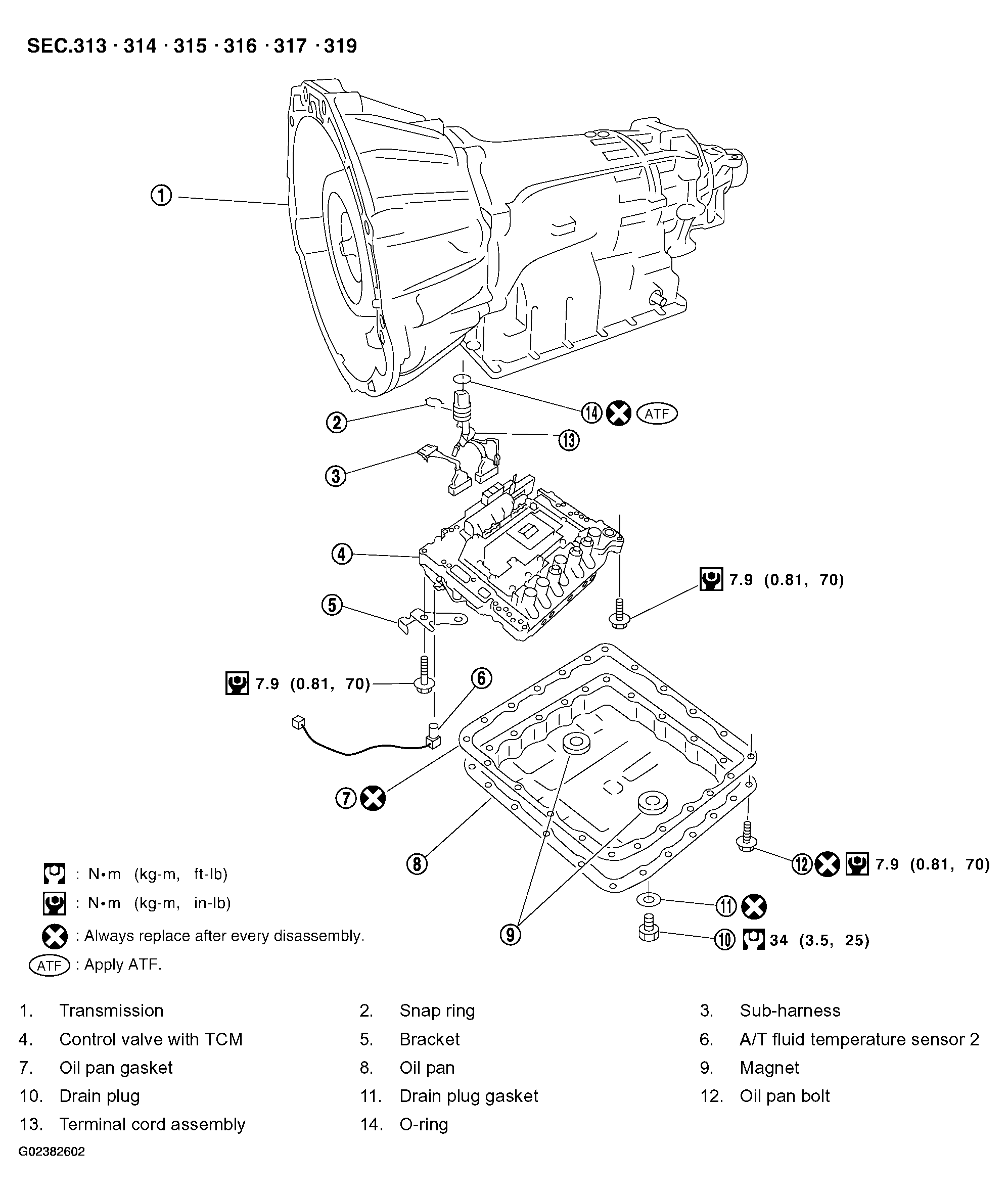

Fig 1: Control Valve With TCM & A/T Fluid Temperature Sensor 2 Replacement Components - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
