Oil Pump: Components

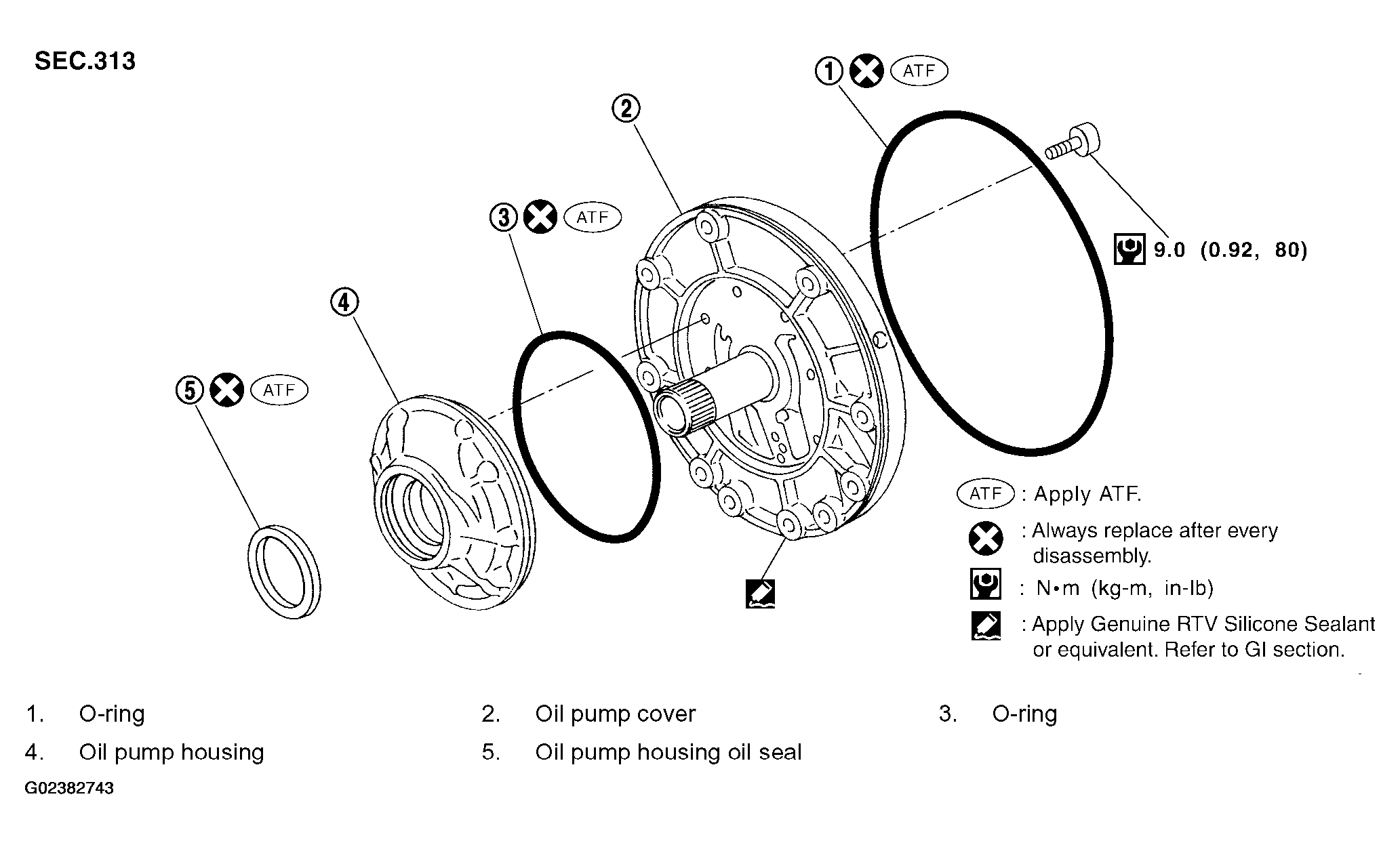

Fig 1: Oil Pump Replacement Components - With Torque Specifications
G02382743Courtesy of NISSAN MOTOR CO., U.S.A.
