A/T Fluid Temperature Sensor

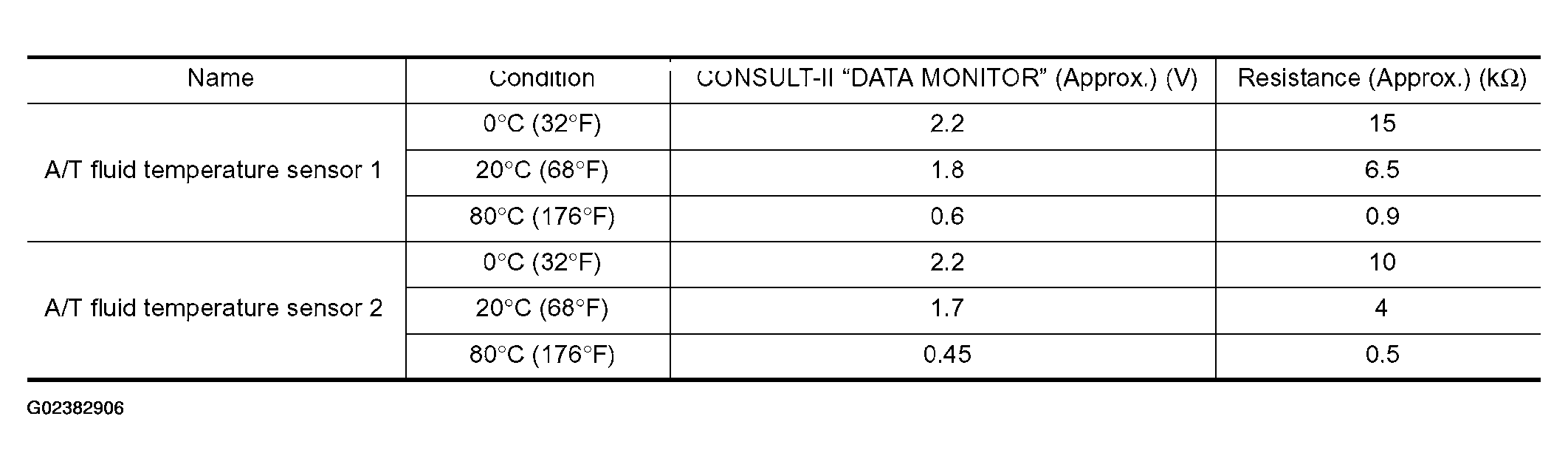

Fig 1: A/T Fluid Temperature Sensor Terminals Resistance & Voltage Chart
G02382906Courtesy of NISSAN MOTOR CO., U.S.A.
