Rear Case

Remove the rear case bolts.

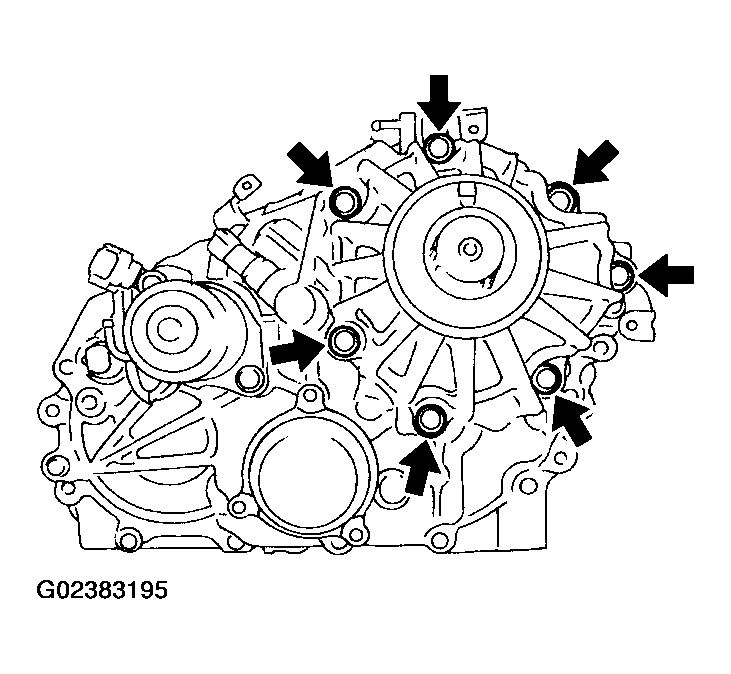

Fig 1: Identifying Rear Case Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the rear case from the center case.

Fig 2: Identifying Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the dust cover, using suitable tool.

Fig 3: Removing Dust Cover Using Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the oil seal, using suitable tool.
CAUTION: Do not damage rear case.
Remove the air breather.

Fig 4: Removing Air Breather
Courtesy of NISSAN MOTOR CO., U.S.A.
