Specifications with CONSULT-II

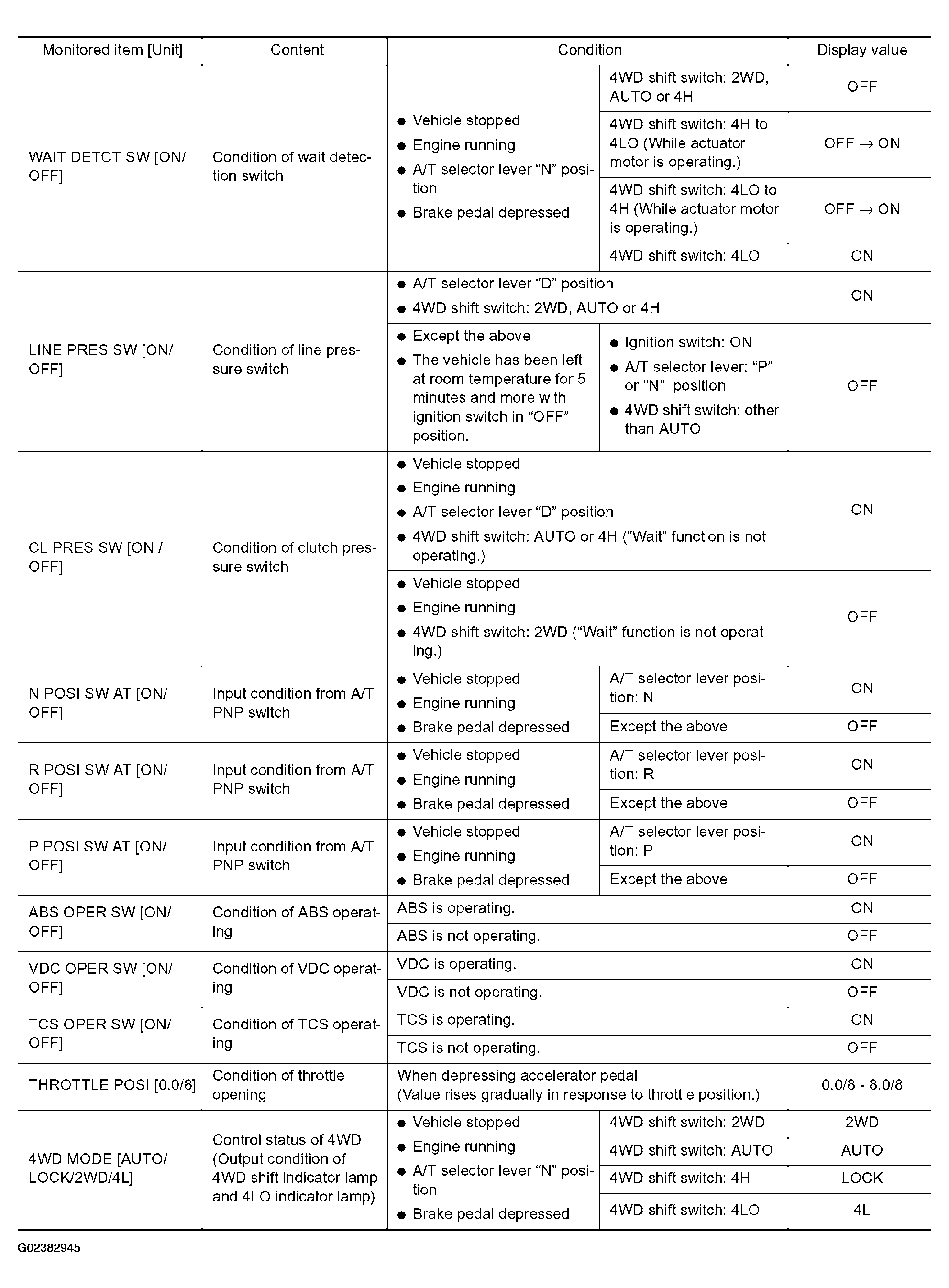

Fig 1: Specifications With CONSULT-II (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

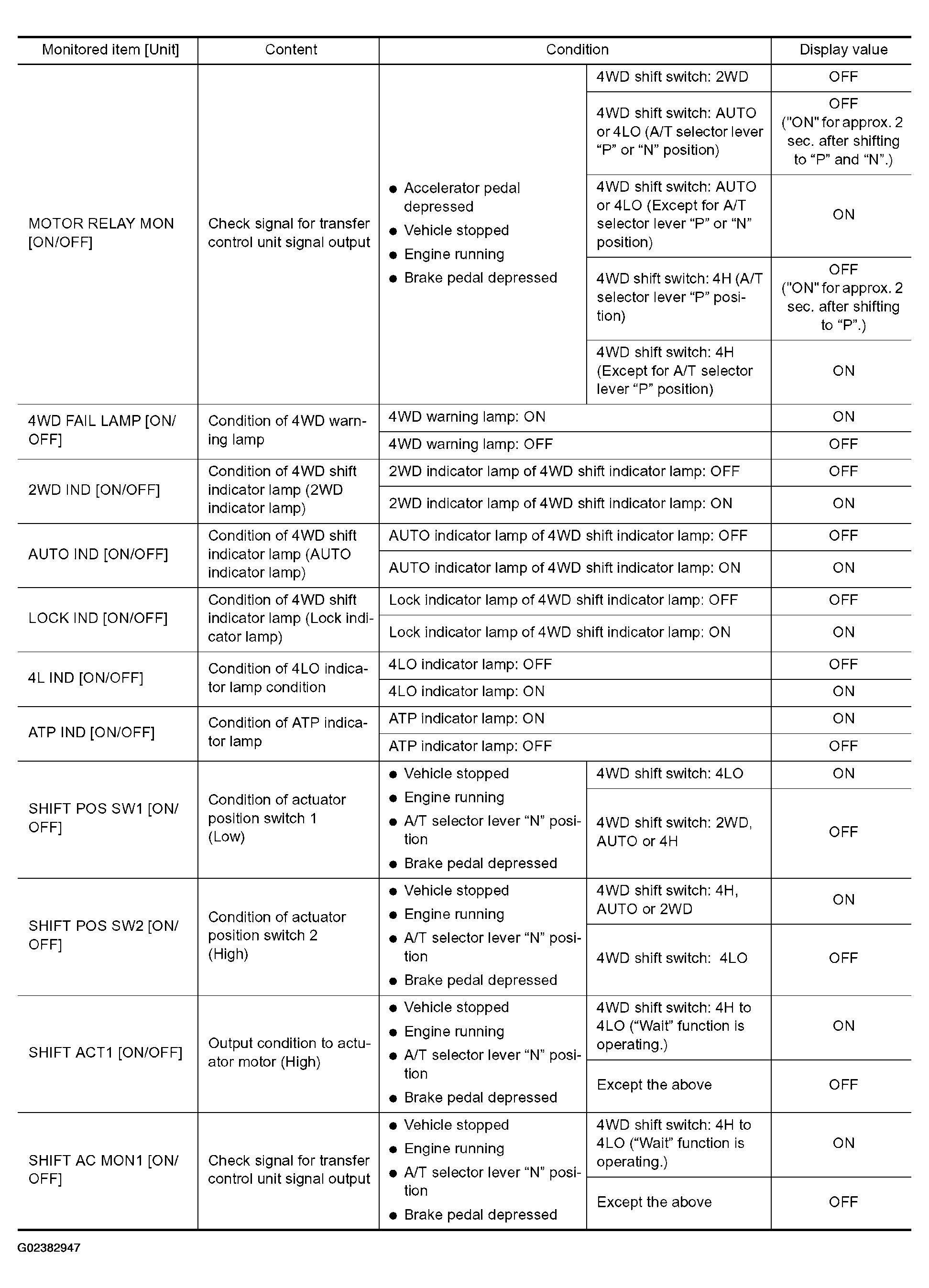

Fig 2: Specifications With CONSULT-II (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

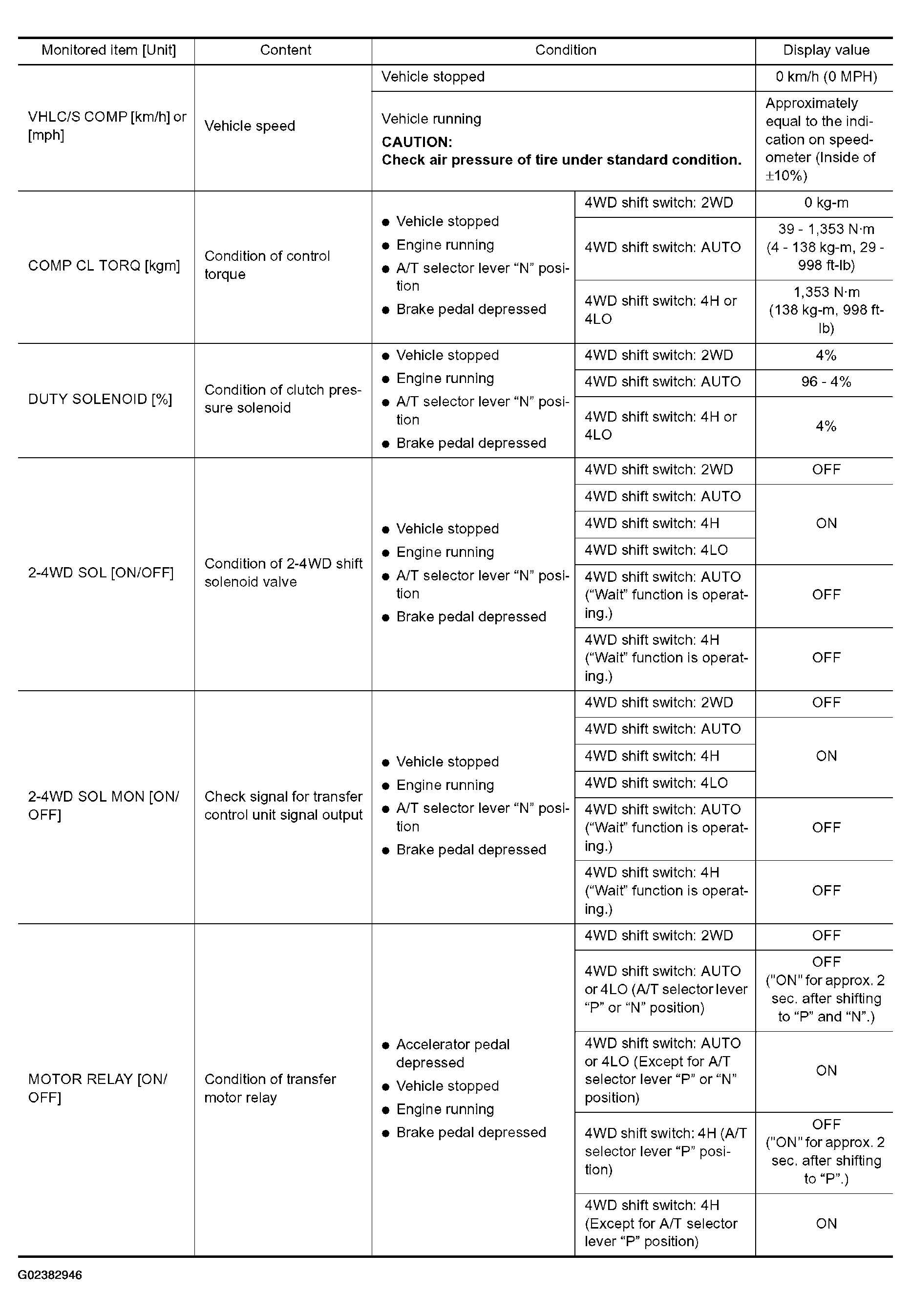

Fig 3: Specifications With CONSULT-II (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

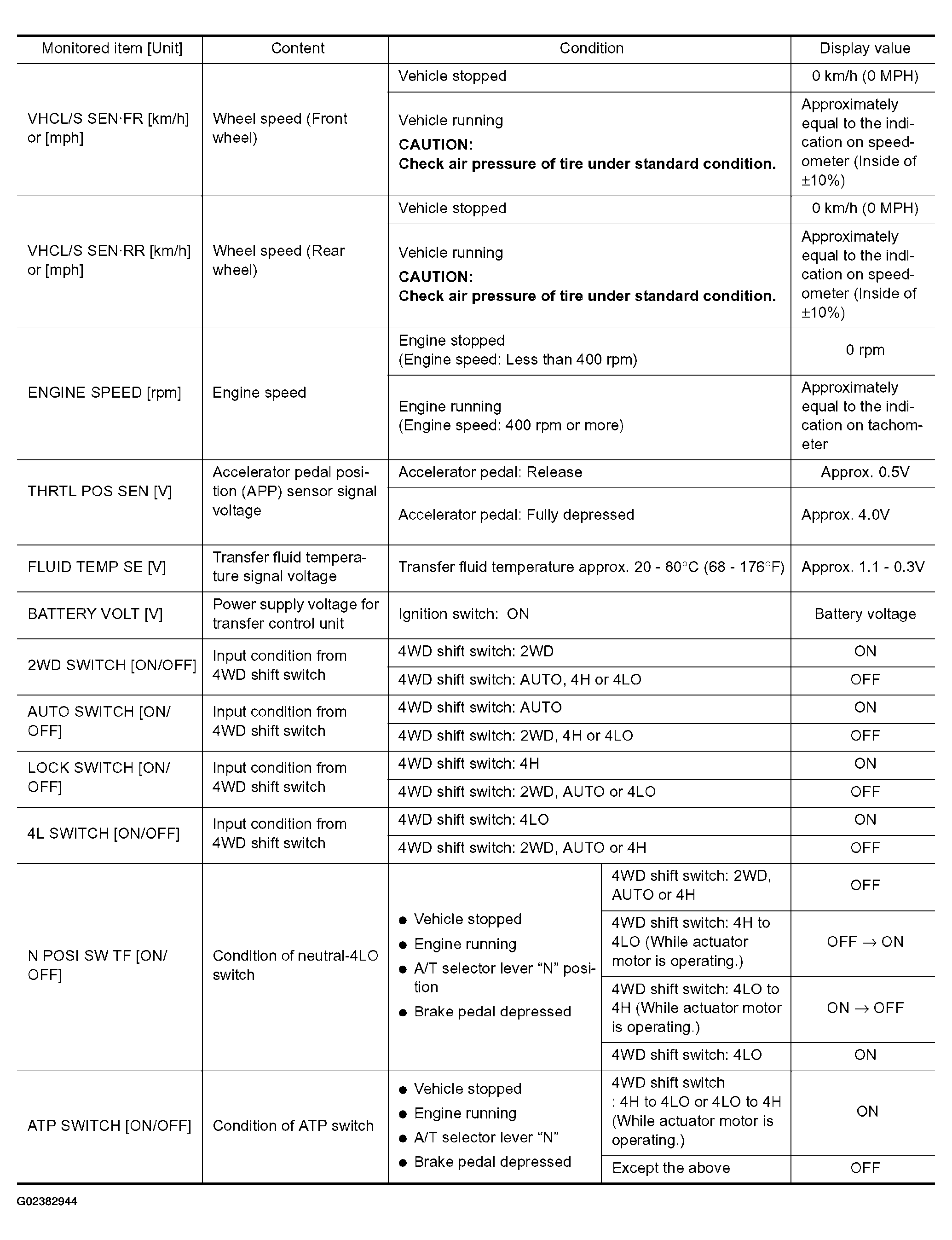

Fig 4: Specifications With CONSULT-II (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

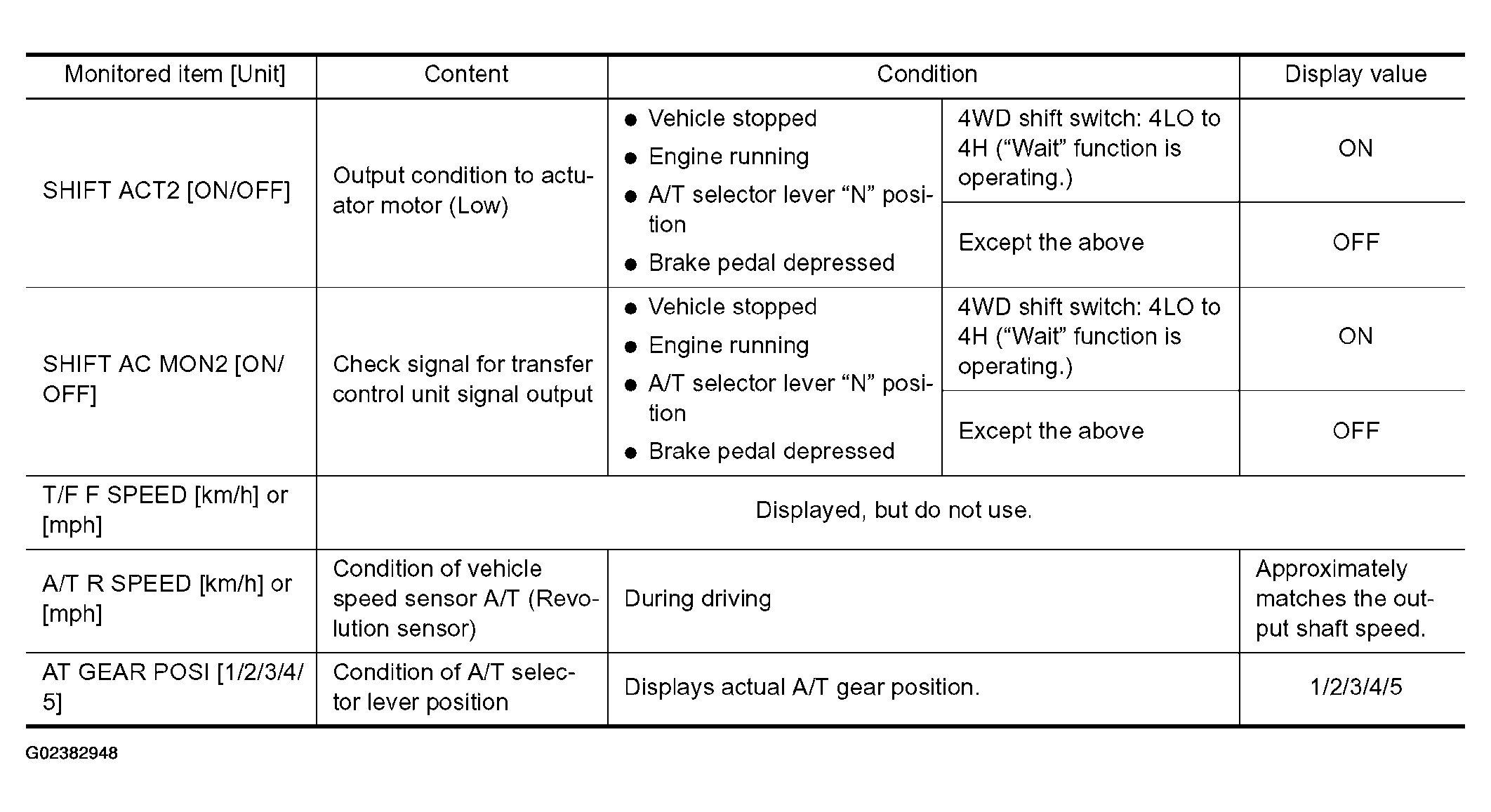

Fig 5: Specifications With CONSULT-II (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
