Adjustment of A/T Position

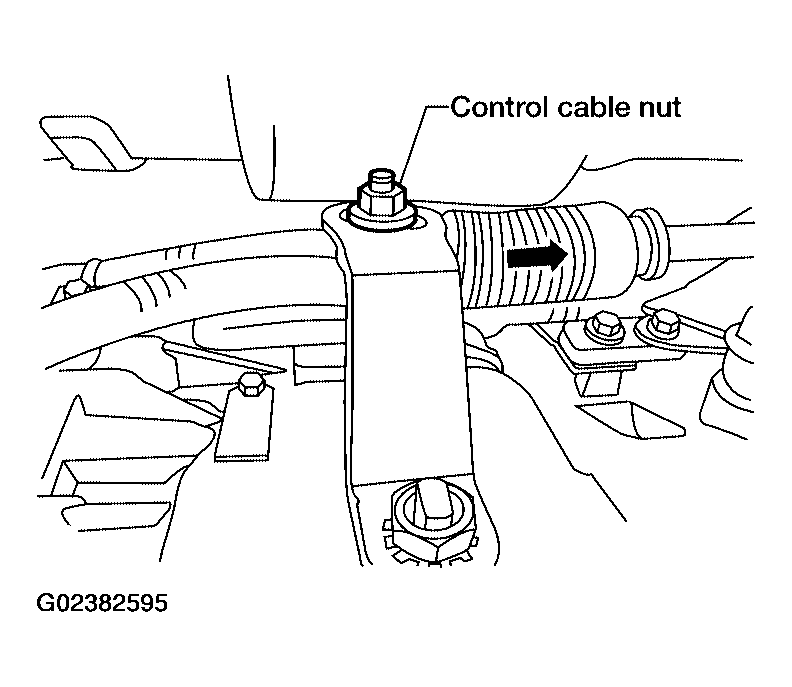

- Loosen nut of control cable.
- Place PNP switch and selector lever in "P" position.
- After pushing the control cable in the direction shown with a force of 9.8 N-m (1kg-m, 2.2 lb-ft), release it. This is in the natural state, tighten control cable nut to specifications.
- Control cable nut: 14.5 N.m (1.5 kg-m, 11 ft-lb)
