Engine Compartment: Measurement

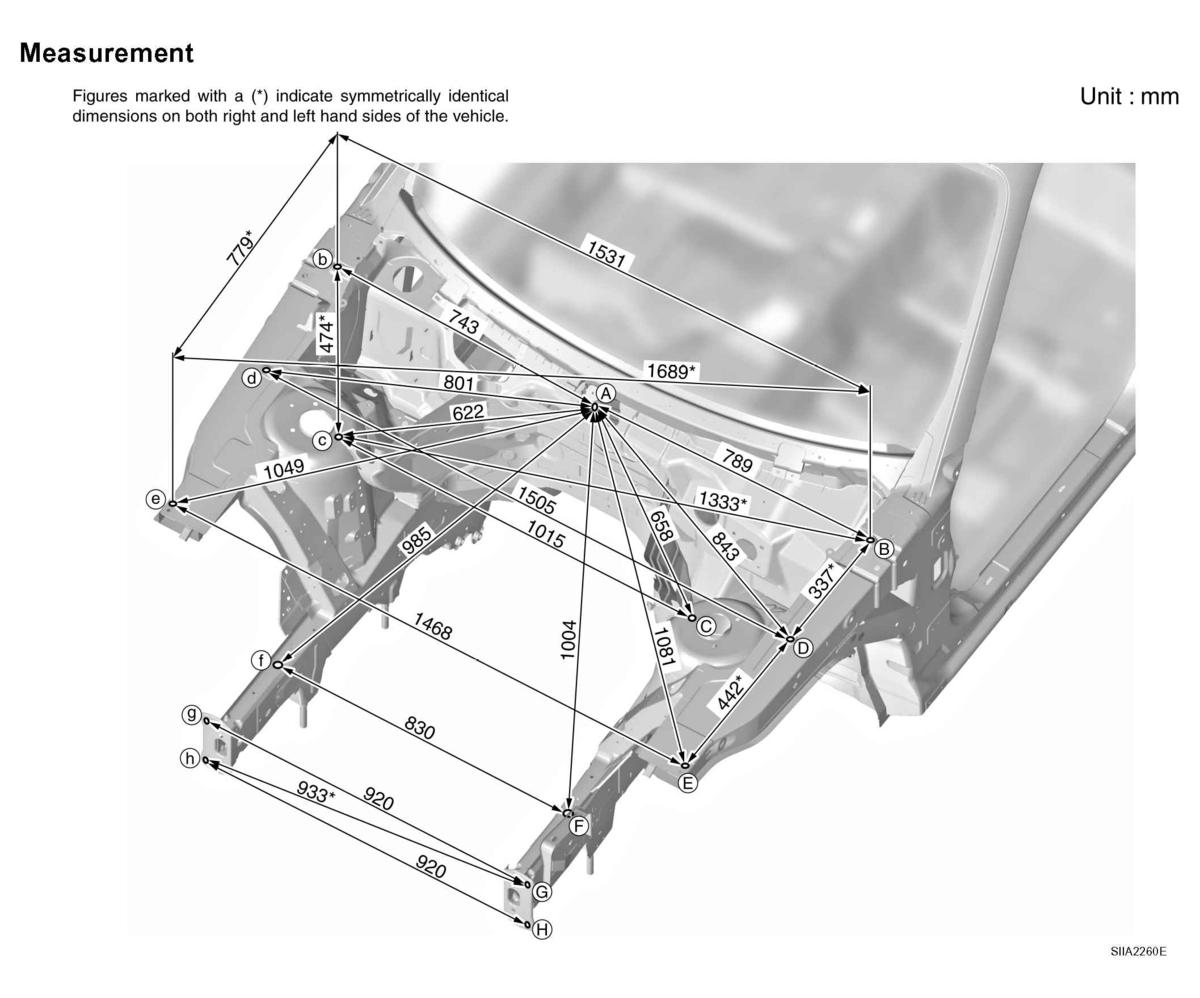

Fig 1: Identifying Engine Compartment Dimensions
G04077271Courtesy of NISSAN MOTOR CO., U.S.A.
