Front Side Member (Partial Replacement)
›
Notes
Front Side Member (Partial Replacement): Notes

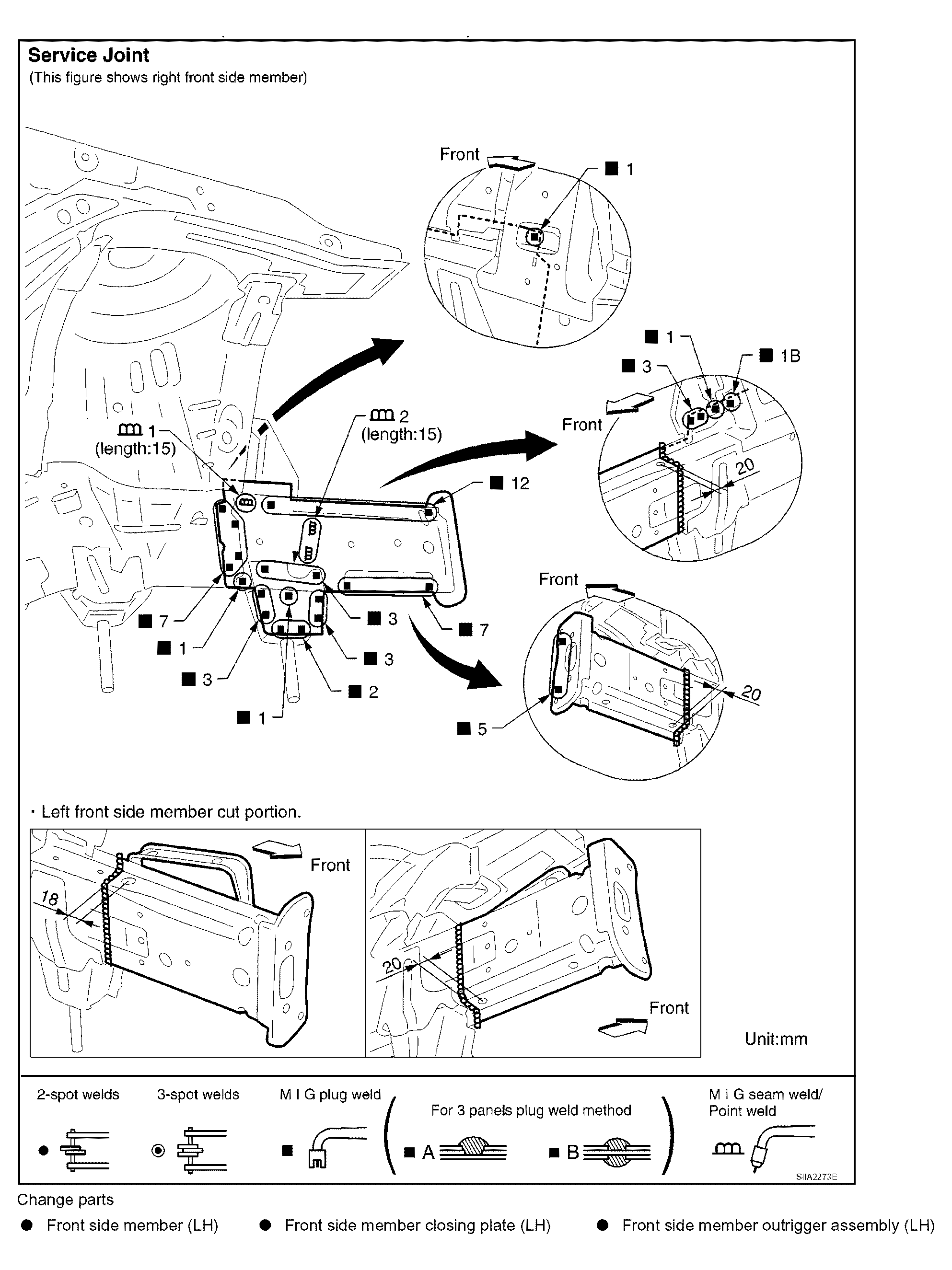

Fig 1: Front Side Member - Service Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
