Replacement Operations: HOODLEDGE

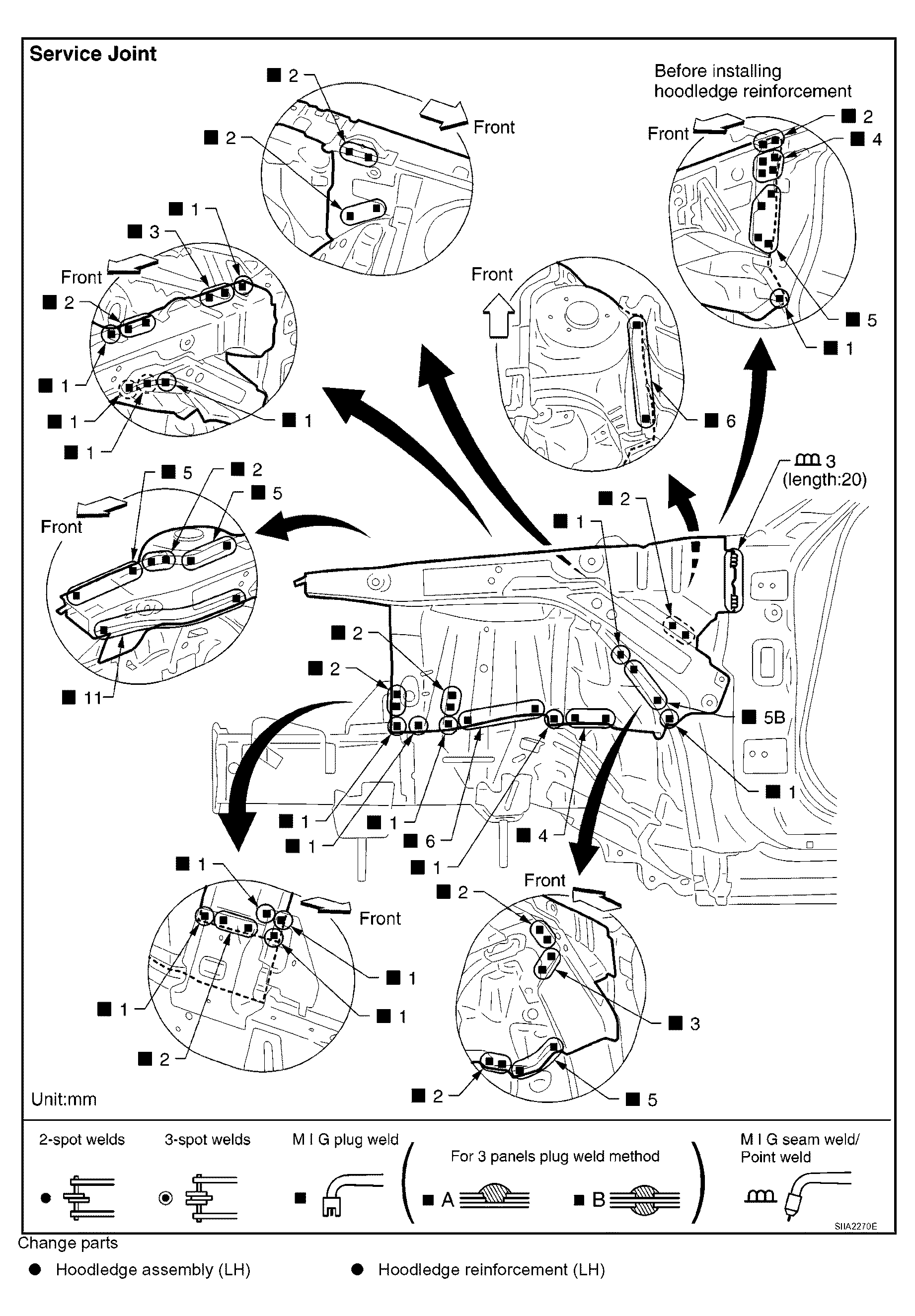

Fig 1: Hoodledge - Service Joint

G04077295

Courtesy of NISSAN MOTOR CO., U.S.A.
