Body, Lock & Security System
›
Intelligent Key System
›
Diagnosis Procedure
›
Work Flow
Work Flow

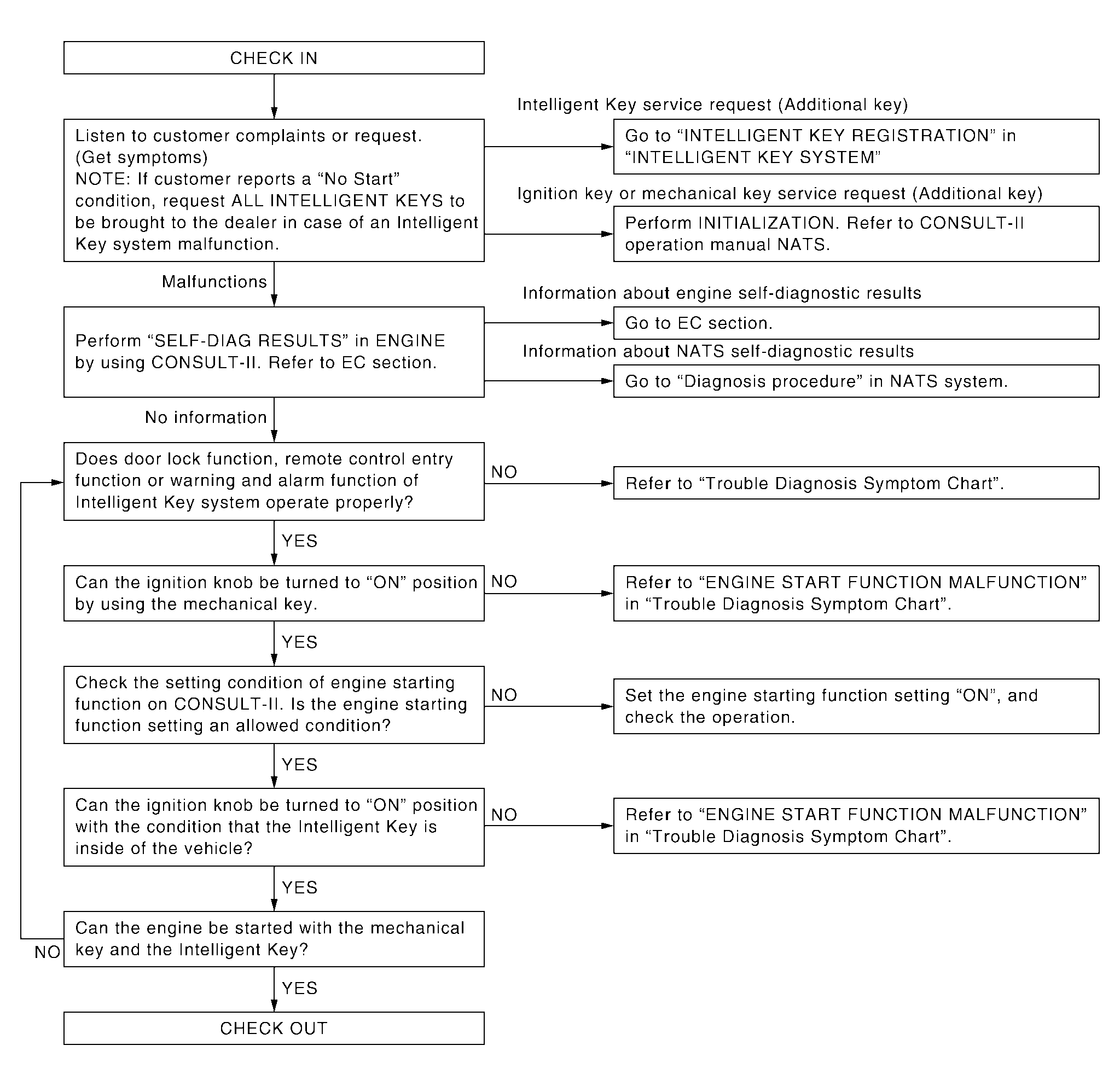

Fig 1: Diagnosis Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
