Infiniti
›
2006
›
FX35 AWD
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Body, Lock & Security System
›
Power Door Lock System
›
Schematic/Without Intelligent Key
Schematic/Without Intelligent Key

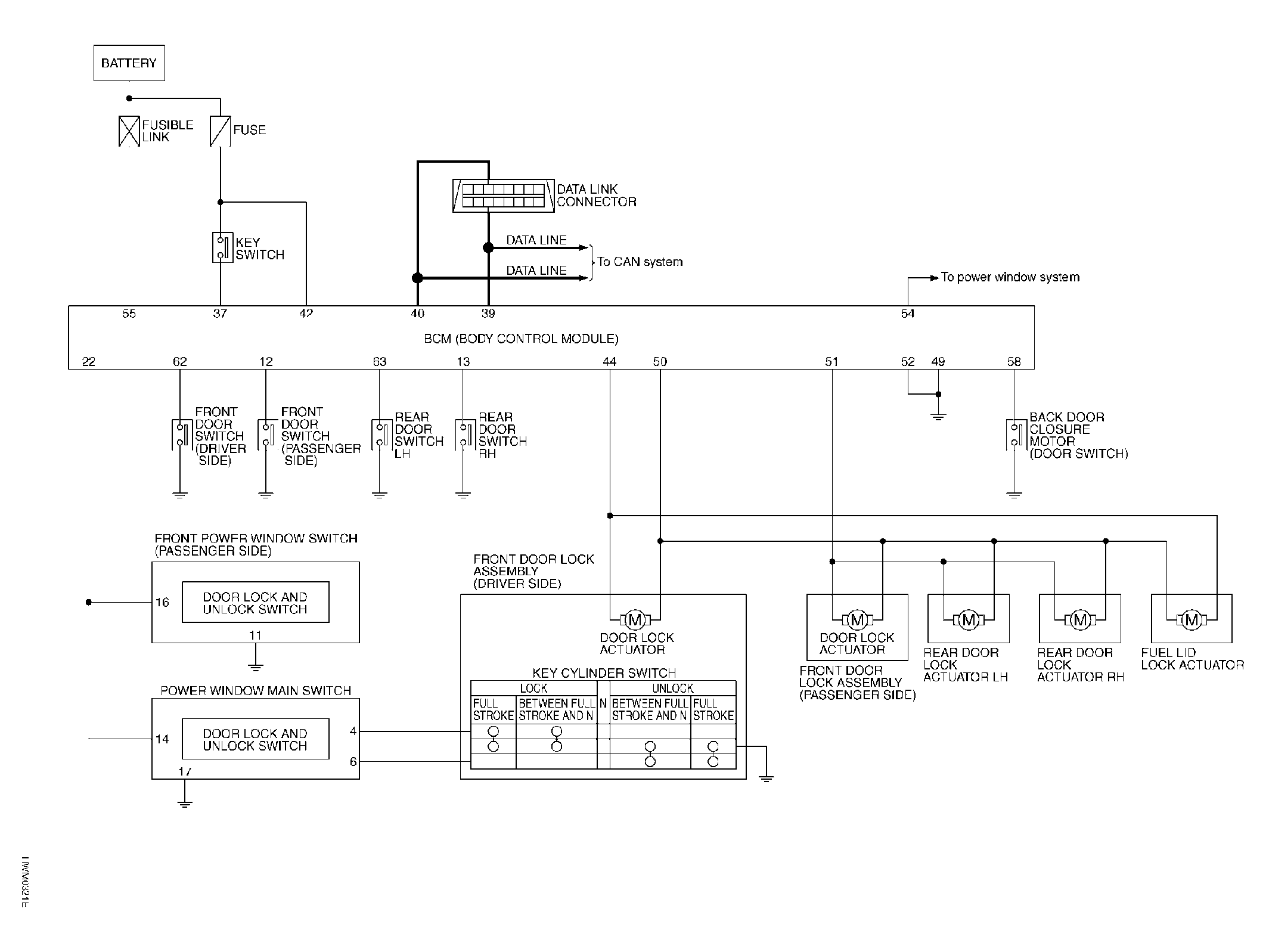

Fig 1: Schematic/Without Intelligent Key - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
