Infiniti
›
2006
›
FX35 AWD
›
Repair and Diagnosis
›
Electrical
›
Gauges
›
Driver Information System
›
Compass
›
Wiring Diagram - COMPAS -
Wiring Diagram - COMPAS -
For PG, go to
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
.

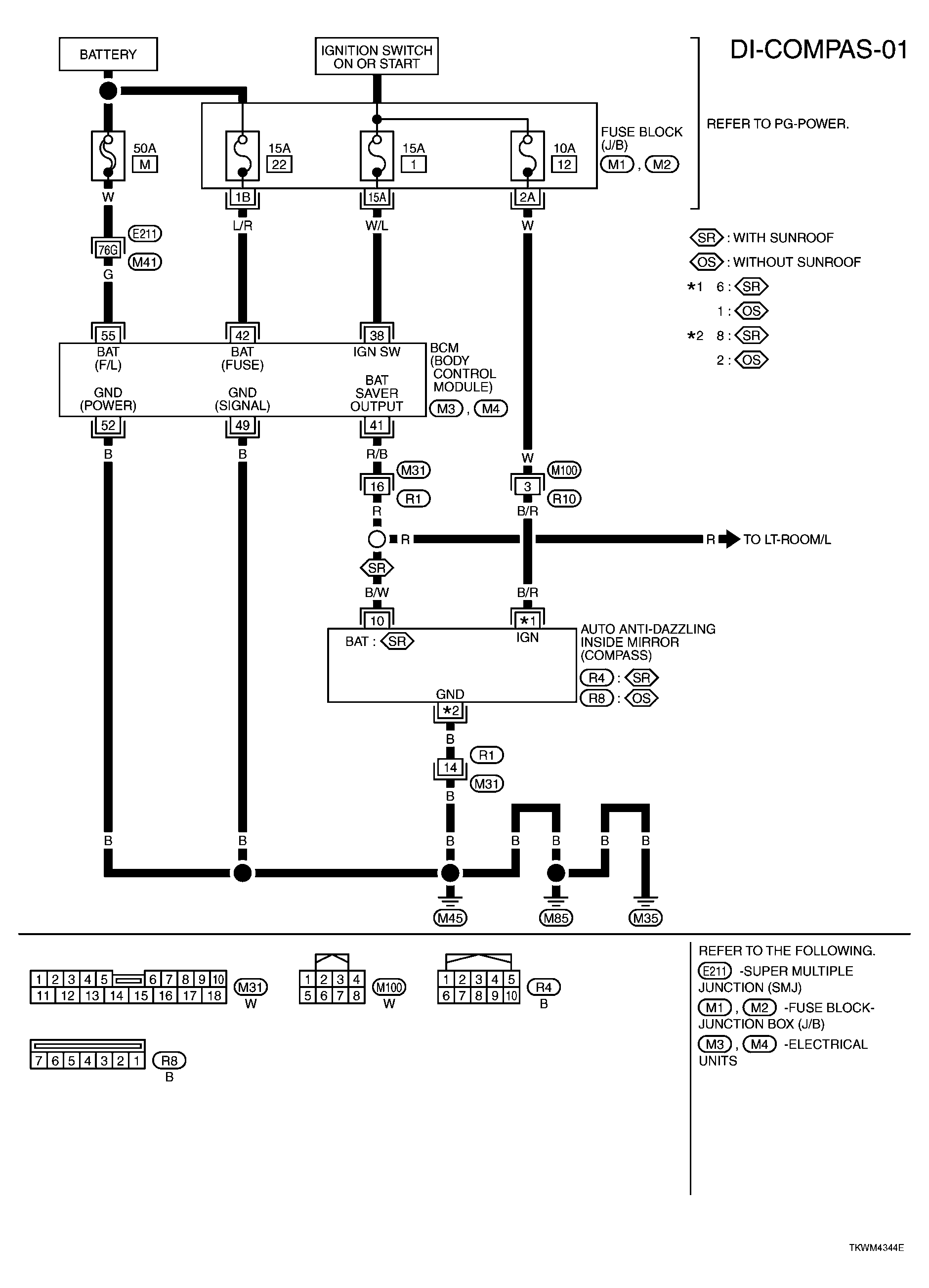

Fig 1: DI-COMPAS-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
