Instrument Panel Assembly
›
Component Parts Drawing
Component Parts Drawing

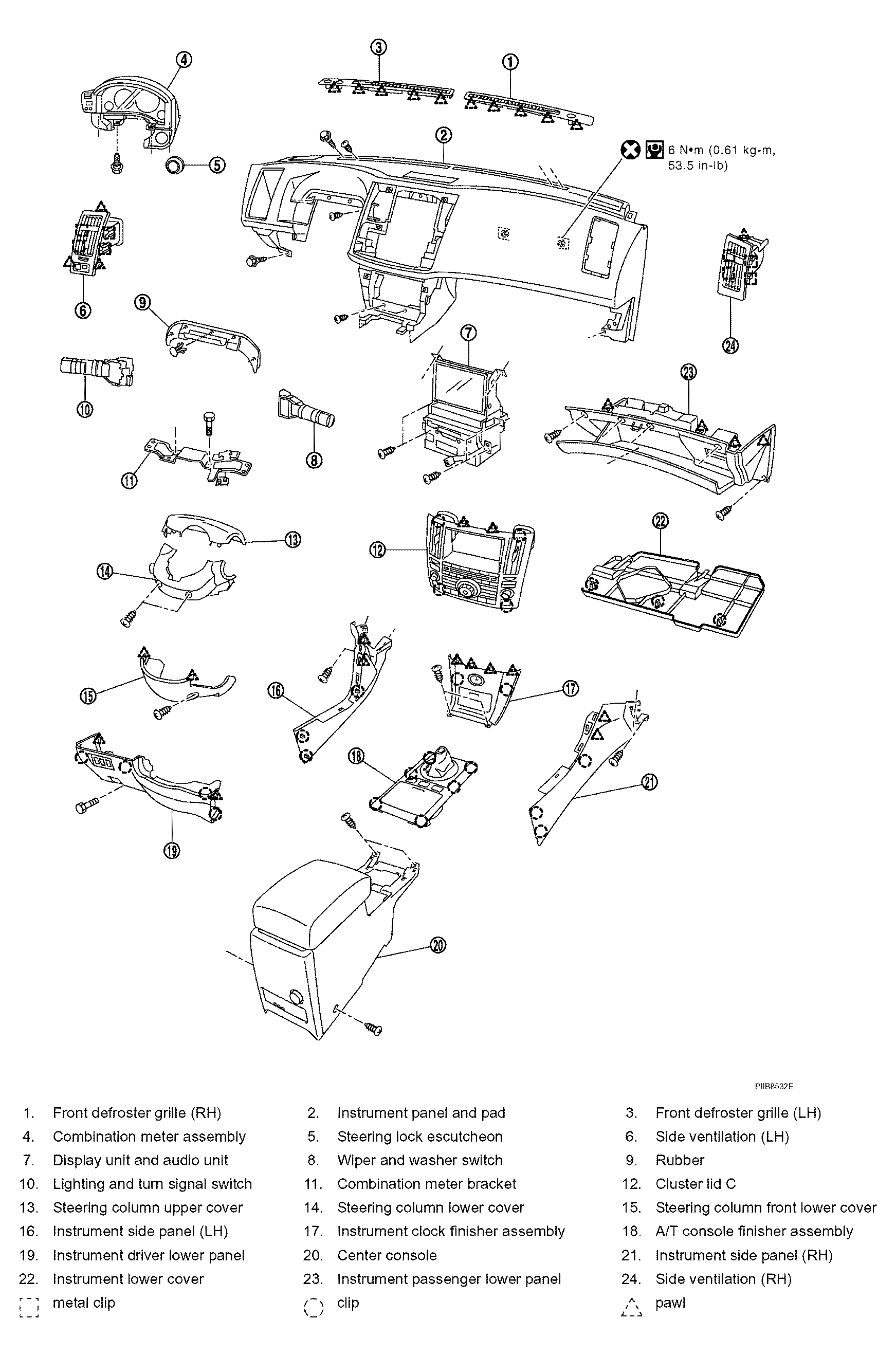

Fig 1: Replacement Components Instrument Panel Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
