Engine Control System - Introduction (VQ35DE)
›
Trouble Diagnosis
›
Symptom Matrix Chart
›
System -- Basic Engine Control System
System -- Basic Engine Control System

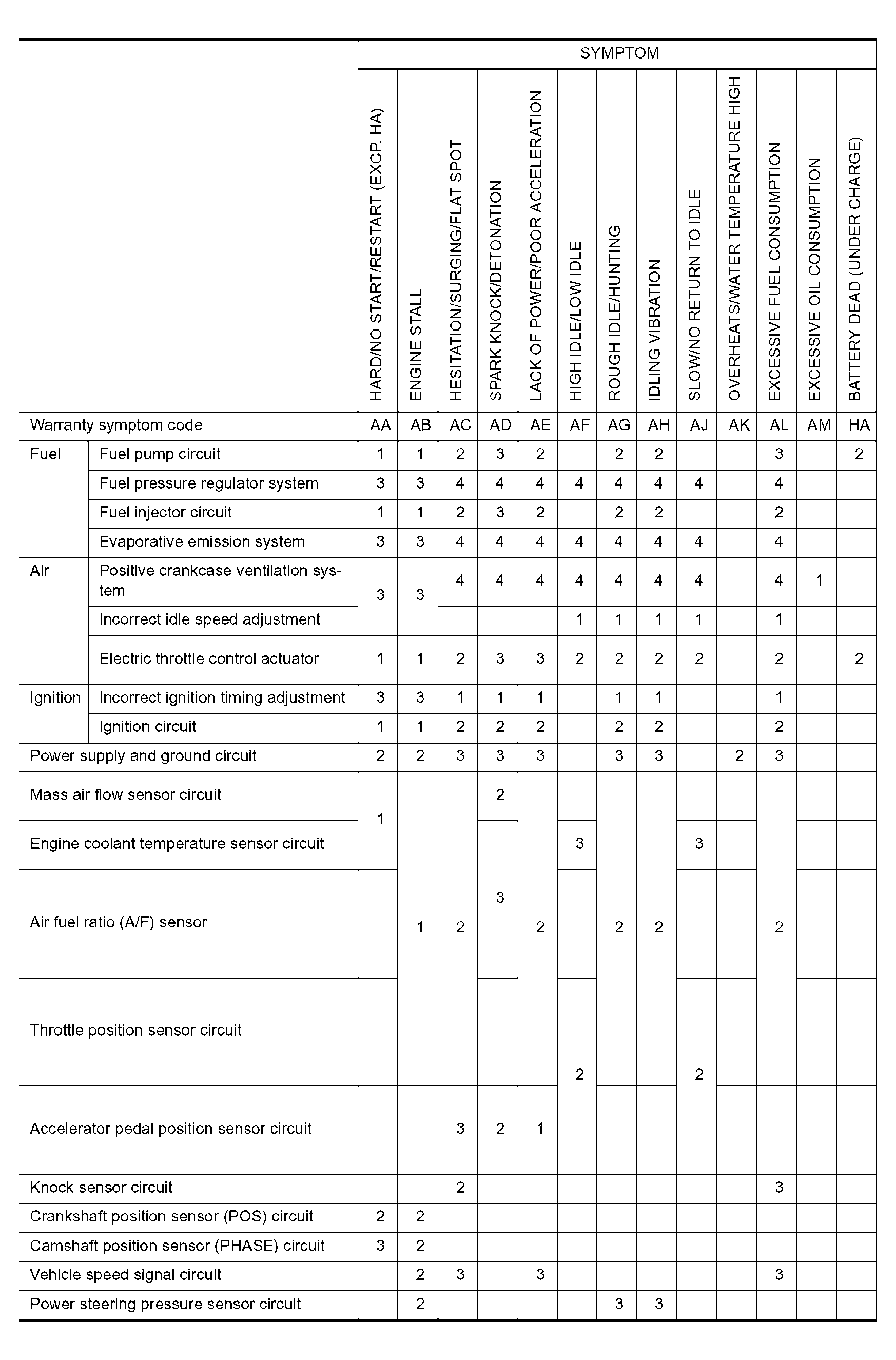

Fig 1: System -- Basic Engine Control System Symptom Matrix Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

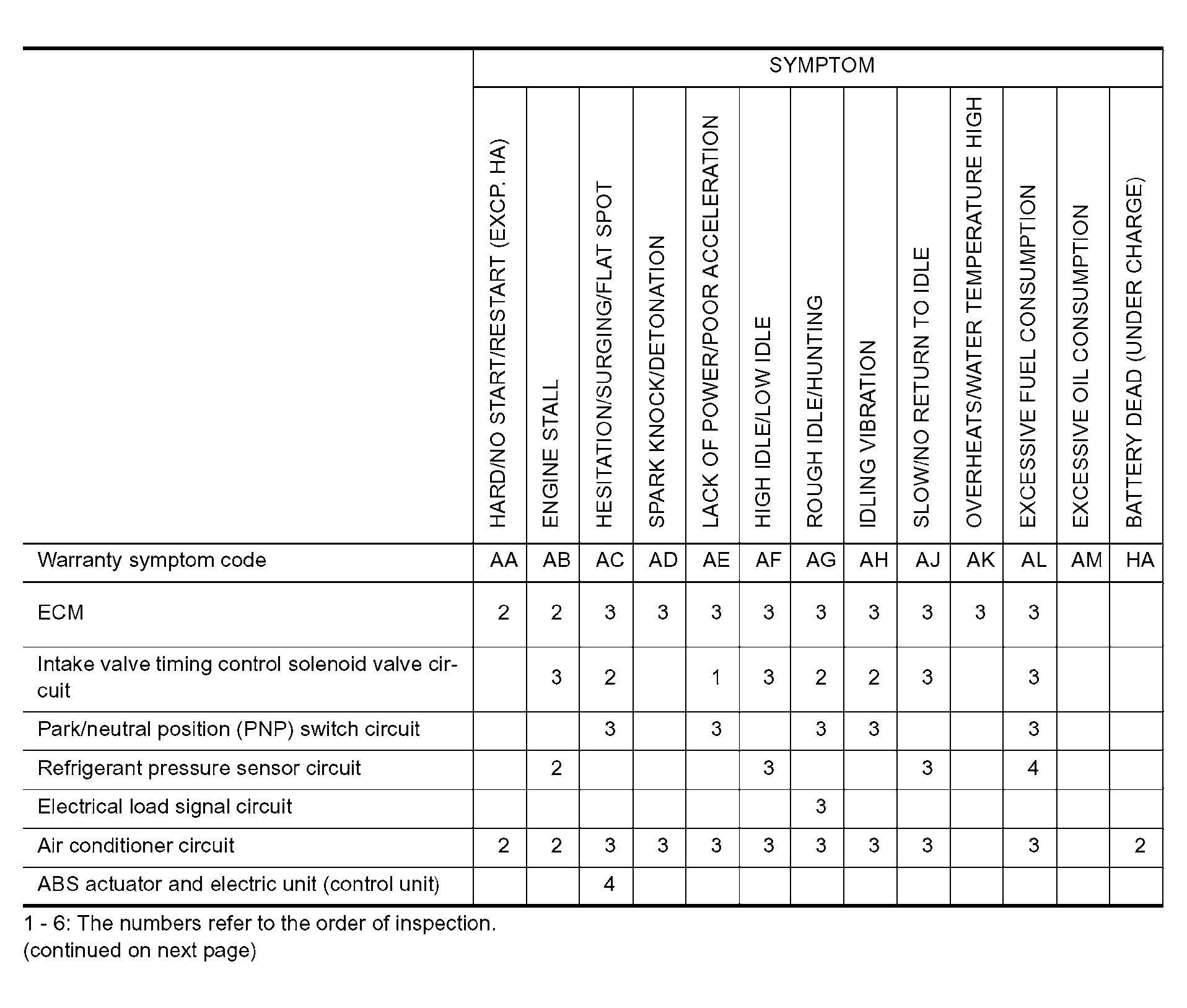

Fig 2: System -- Basic Engine Control System Symptom Matrix Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
