Front Carrier, Input Clutch, Rear Internal Gear: Components: Notes

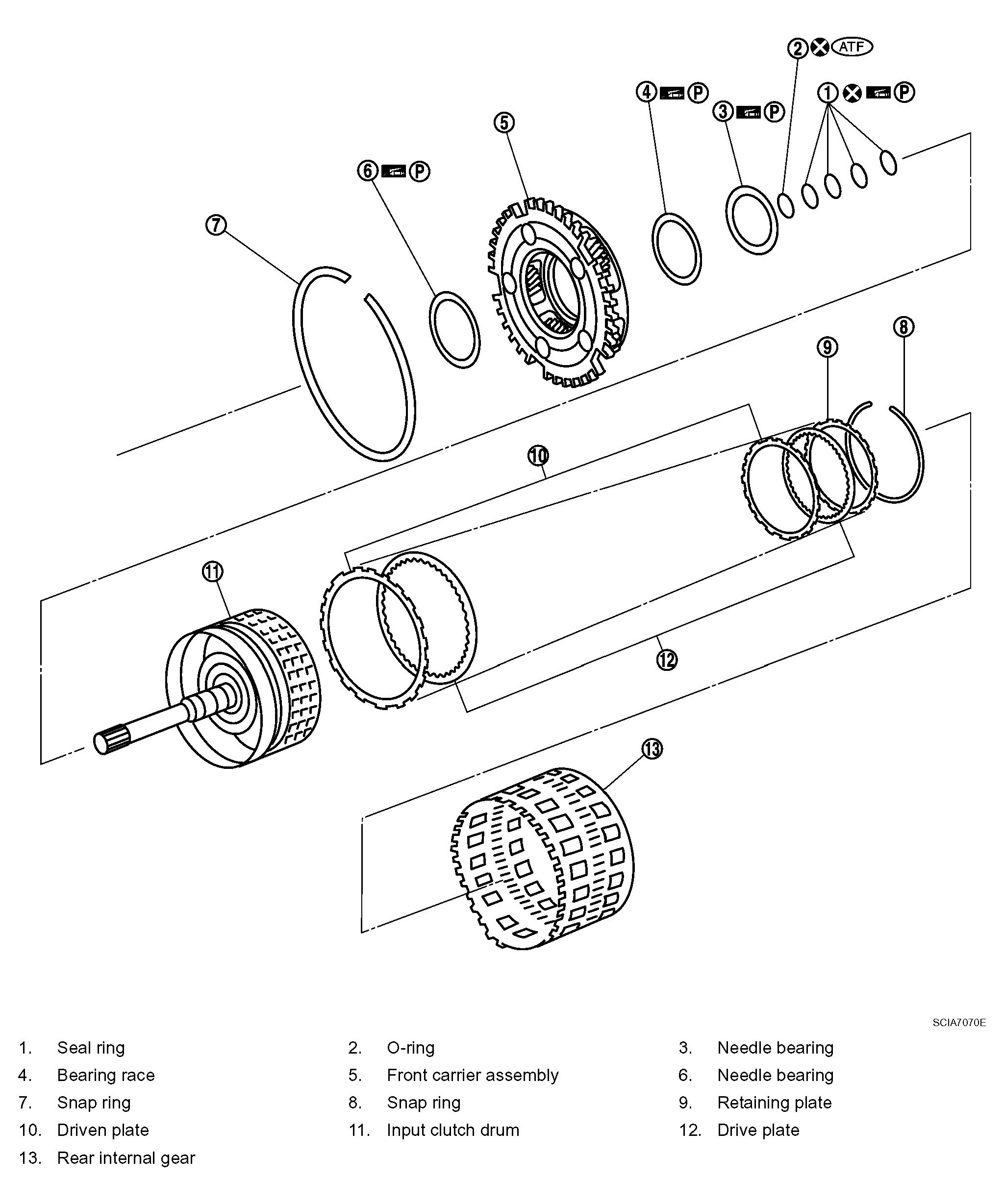

Fig 1: Identifying Front Carrier, Input Clutch, Rear Internal Gear Components (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

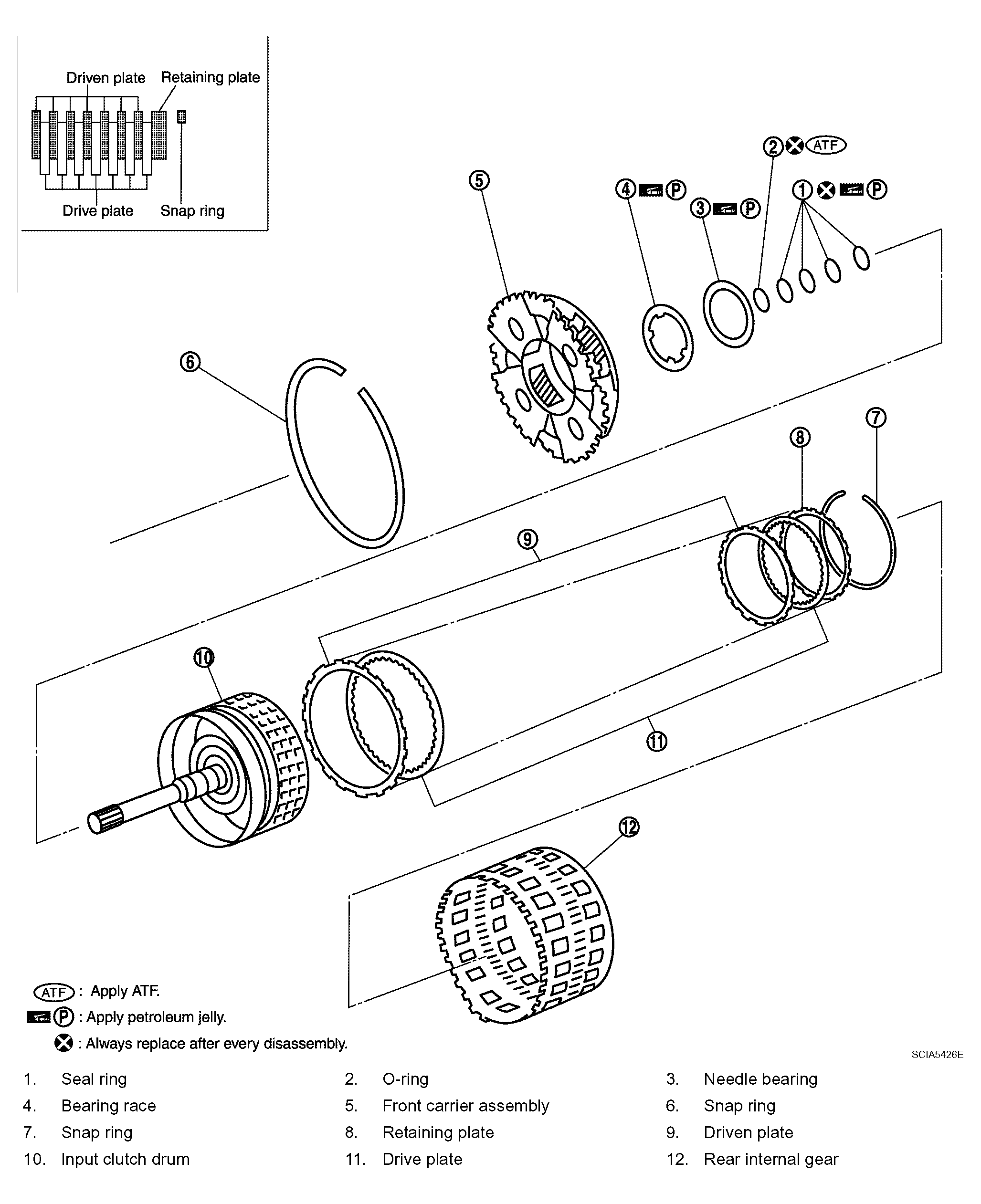

Fig 2: Identifying Front Carrier, Input Clutch, Rear Internal Gear Components (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
