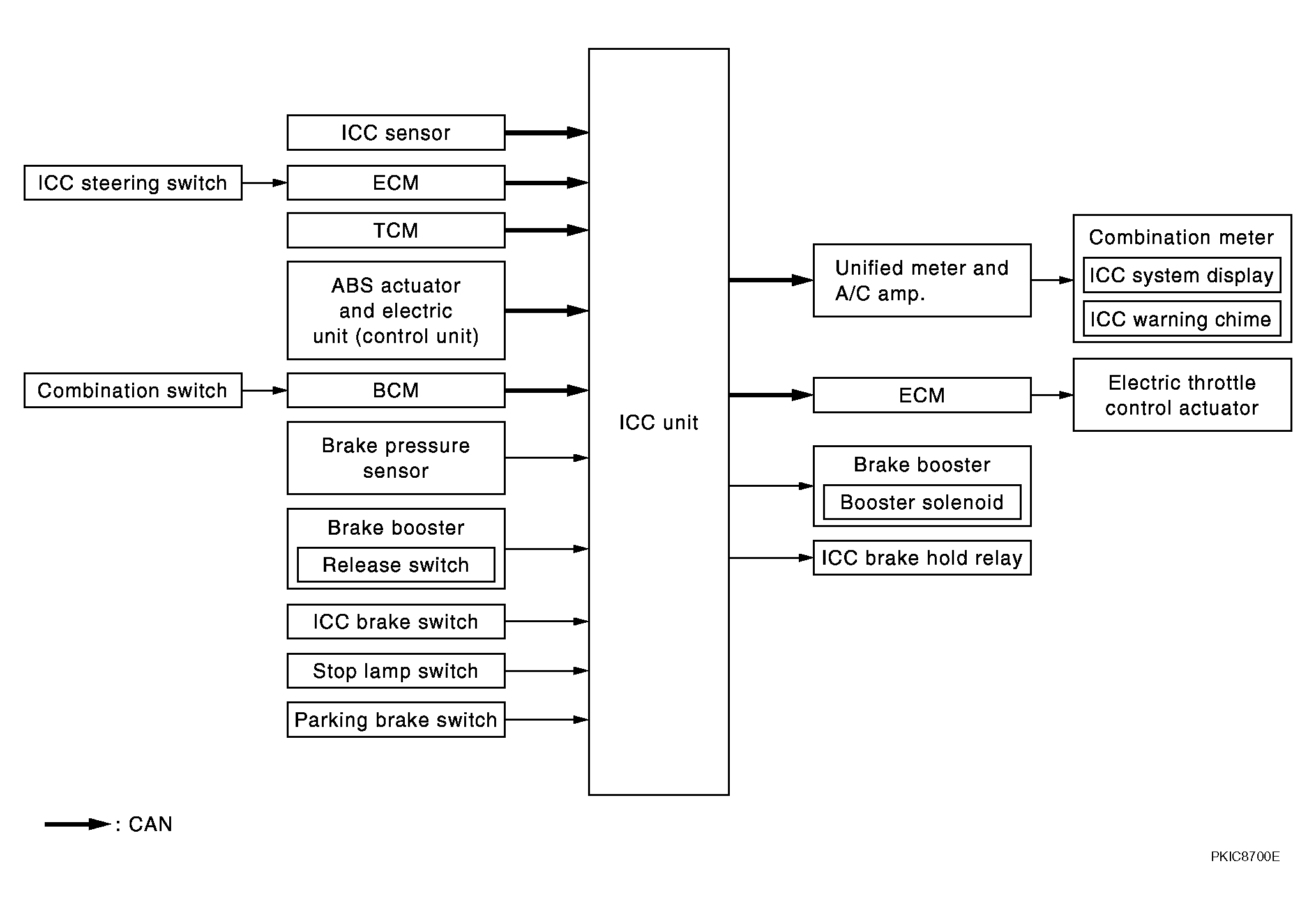

Functional Diagram
Items of input/output signal to be checked with CONSULT-II
INPUT ITEM CHART
| Input | Data monitored Item [unit] | CAN | Description |
|---|---|---|---|
| ECM | THRTL OPENING [%] | x | Indicates throttle angle read by ICC unit through CAN communication (ECM transmits throttle angle through CAN communication). |
| ENGINE RPM [rpm] | x | Indicates engine speed read by ICC unit through CAN communication (ECM transmits engine speed through CAN communication). | |
| MAIN SW [ON/OFF] | x | Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steering switch signal through CAN communication). | |
| SET/COAST SW [ON/OFF] | x | Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steering switch signal through CAN communication). | |
| CANCEL SW [ON/OFF] | x | Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steering switch signal through CAN communication). | |
| RESUME/ACC SW [ON/OFF] | x | Indicates [ON/OFF] status as judged from steering switch signal (ECM transmits steering switch signal through CAN communication). | |
| IDLE SW [ON/OFF] | x | Indicates [ON/OFF] status of idle switch read by ICC unit through CAN communication (ECM transmits ON/OFF status through CAN communication). | |
| TCM | VHCL SPD AT [km/h] or [mph] | x | Indicates vehicle speed calculated from AT vehicle speed sensor by ICC unit through CAN communication (TCM transmits AT vehicle speed sensor signal through CAN communication). |
| GEAR [1, 2, 3, 4, 5] | x | Indicates AT gear position read by ICC unit through CAN communication (TCM transmits gear position through CAN communication). | |
| D RANGE SW [ON/OFF] | x | Indicates [ON/OFF] status of "D" position read by ICC unit through CAN communication (TCM transmits ON/OFF condition of "D" position through CAN communication). | |
| NP RANGE SW [ON/OFF] | x | Indicates PNP switch signal read by ICC unit through CAN communication (TCM transmits PNP switch signal through CAN communication). | |
| ABS actuator and electric unit (control unit) | VHCL SPEED SE [km/h] or [mph] | x | Indicates vehicle speed calculated from wheel sensor by ICC unit through CAN communication (ABS actuator and electric unit (control unit) transmits wheel speed sensor signal through CAN communication). |
| BCM | WIPER SW [OFF/LOW/HIGH] | x | Indicates wiper [OFF/LOW/HIGH] status (BCM transmits front wiper request signal through CAN communication). |
| Brake pressure sensor | PRESS SENS [bar] | Indicates brake fluid pressure value calculated from signal voltage of pressure sensor. | |
| Release switch | RELEASE SW NO [ON/OFF] | Indicates [ON/OFF] status as judged from release switch signal. ON when brake is depressed. OFF when brake is not depressed. |
|
| RELEASE SW NC [ON/OFF] | Indicates [ON/OFF] status as judged from release switch signal. ON when brake is not depressed. OFF when brake is depressed. |
||
| ICC brake switch | BRAKE SW [ON/OFF] | Indicates [ON/OFF] status as judged from ICC brake switch signal. | |
| Stop lamp switch | STOP LAMP SW [ON/OFF] | Indicates [ON/OFF] status as judged from stop lamp switch signal. |
OUTPUT ITEM CHART
| Output | Data monitored Item [unit] | CAN | Description |
|---|---|---|---|
| ICC warning chime | BUZZER O/P [ON/OFF] | x | Indicates [ON/OFF] status of ICC warning chime output. |
| ICC brake hold relay | STP LMP DRIVE [ON/OFF] | Indicates [ON/OFF] status of brake hold relay drive output. |
OUTPUT ITEM CHART
| Output | CONSULT-ll ICC [ACTIVE TEST] Item | CAN | Description |
|---|---|---|---|
| Combination meter | ICC BUZZER 1 | x | Able to start ICC warning chime with a driving signal from ICC unit. |
| METER LAMP | x | Able to turn ICC system display ON with a driving signal from ICC unit. | |
| ICC brake hold relay | STOP LAMP | Able to start ICC brake hold relay with a driving signal from ICC unit. | |
| Booster solenoid | BOOSTER SOL/V 3 | Able to start booster solenoid with a driving signal from ICC unit. |
