Component Installation Location
Component Installation Location

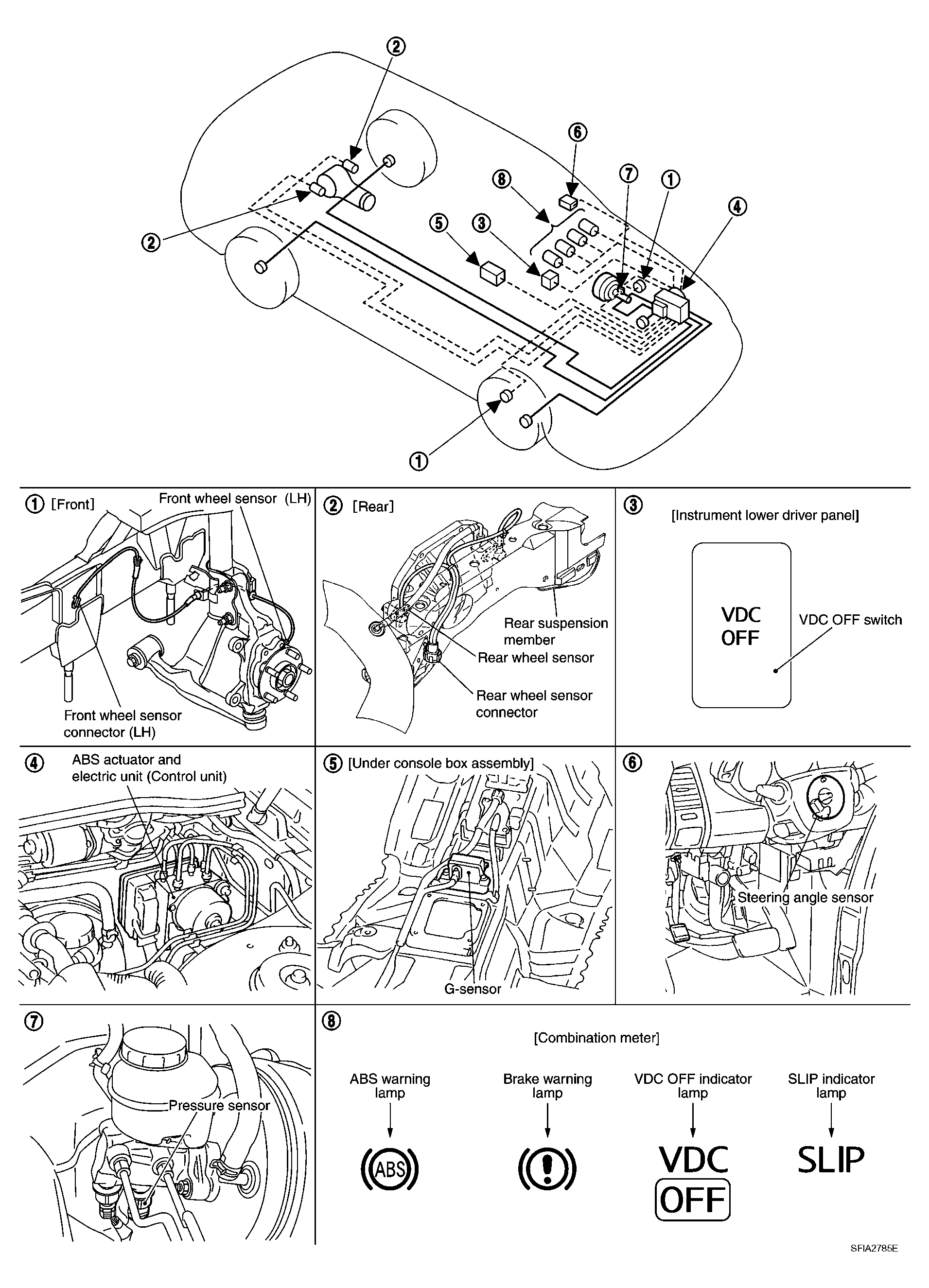

Fig 1: Identifying Component Installation Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
