Component Description

ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.

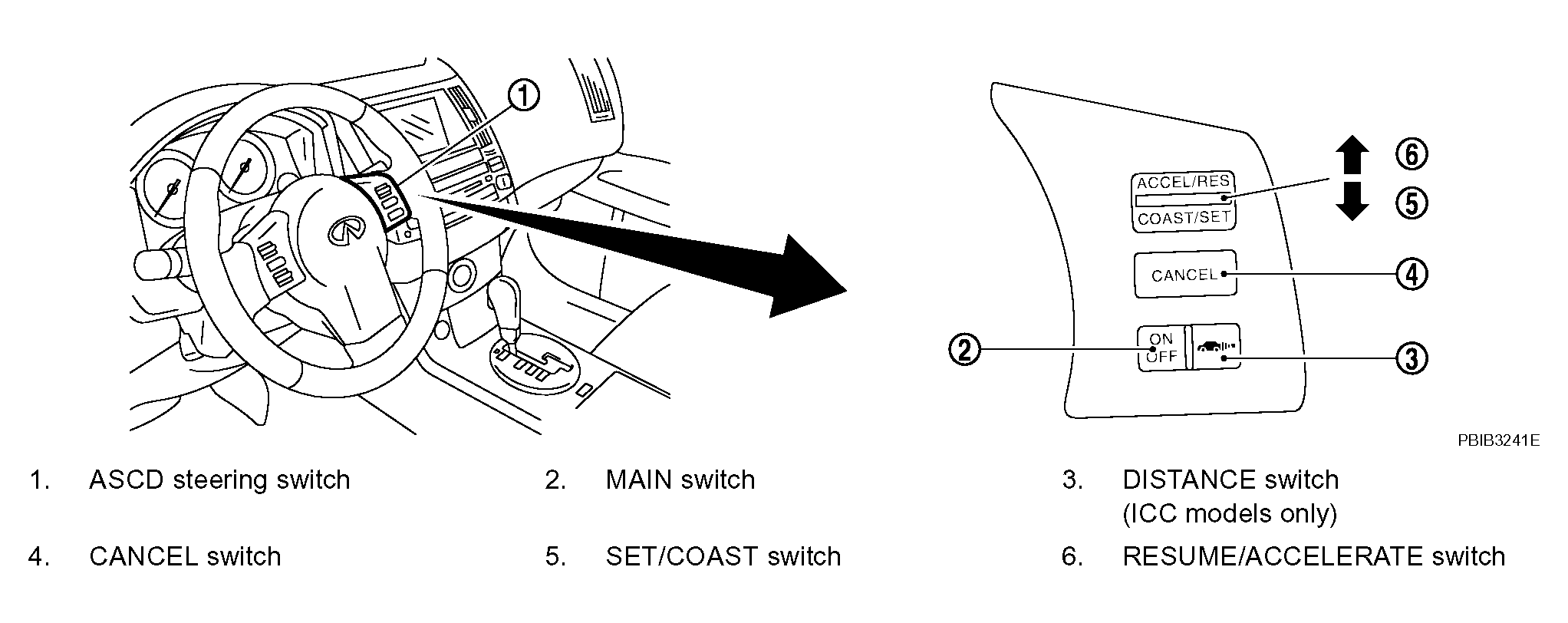

Fig 1: Identifying ASCD Steering Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

1. ASCD steering switch
2. MAIN switch
3. DISTANCE switch

   (ICC models only)

4. CANCEL switch
5. SET/COAST switch
6. RESUME/ACCELERATE switch

Refer to "AUTOMATIC SPEED CONTROL DEVICE (ASCD) " for the ASCD function.
