Engine Control System - Introduction (VK45DE)
›
Basic Service Procedure
›
Idle Speed and Ignition Timing Check
›
Ignition Timing
›
Method B
Method B
Remove ignition coil No. 6.

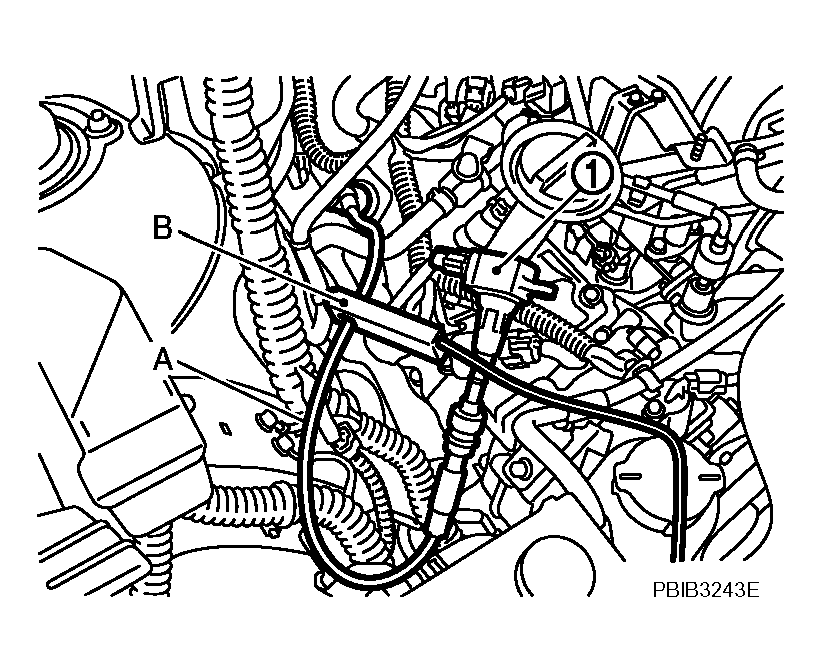

Connect ignition coil No. 6 (1) and spark plug No. 6 with suitable high-tension wire A as shown, and attach timing light clamp B to this wire.
Fig 1: Attaching Timing Light Clamp To Wire
Courtesy of NISSAN MOTOR CO., U.S.A.

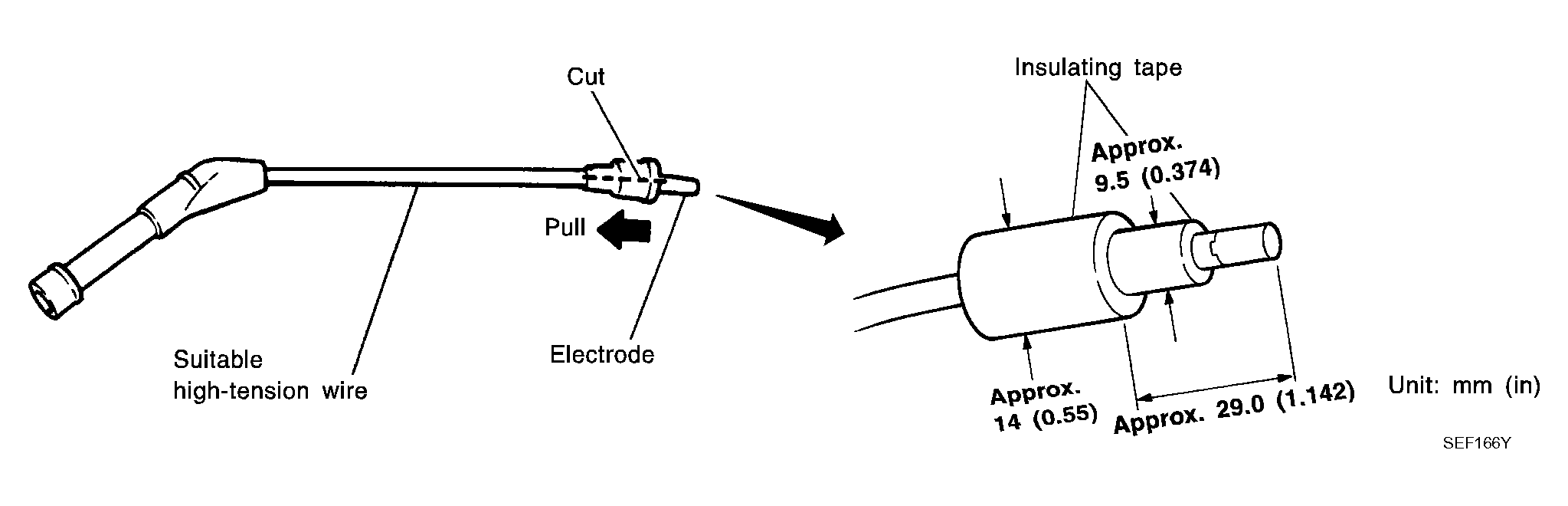

Fig 2: Identifying Timing Light
Courtesy of NISSAN MOTOR CO., U.S.A.
Check ignition timing.
Fig 3: Identifying Ignition Timing
Courtesy of NISSAN MOTOR CO., U.S.A.
