Engine Control System - Introduction (Sedan)
›
Engine Control System
›
System Diagram (A/T Models)
System Diagram (A/T Models)

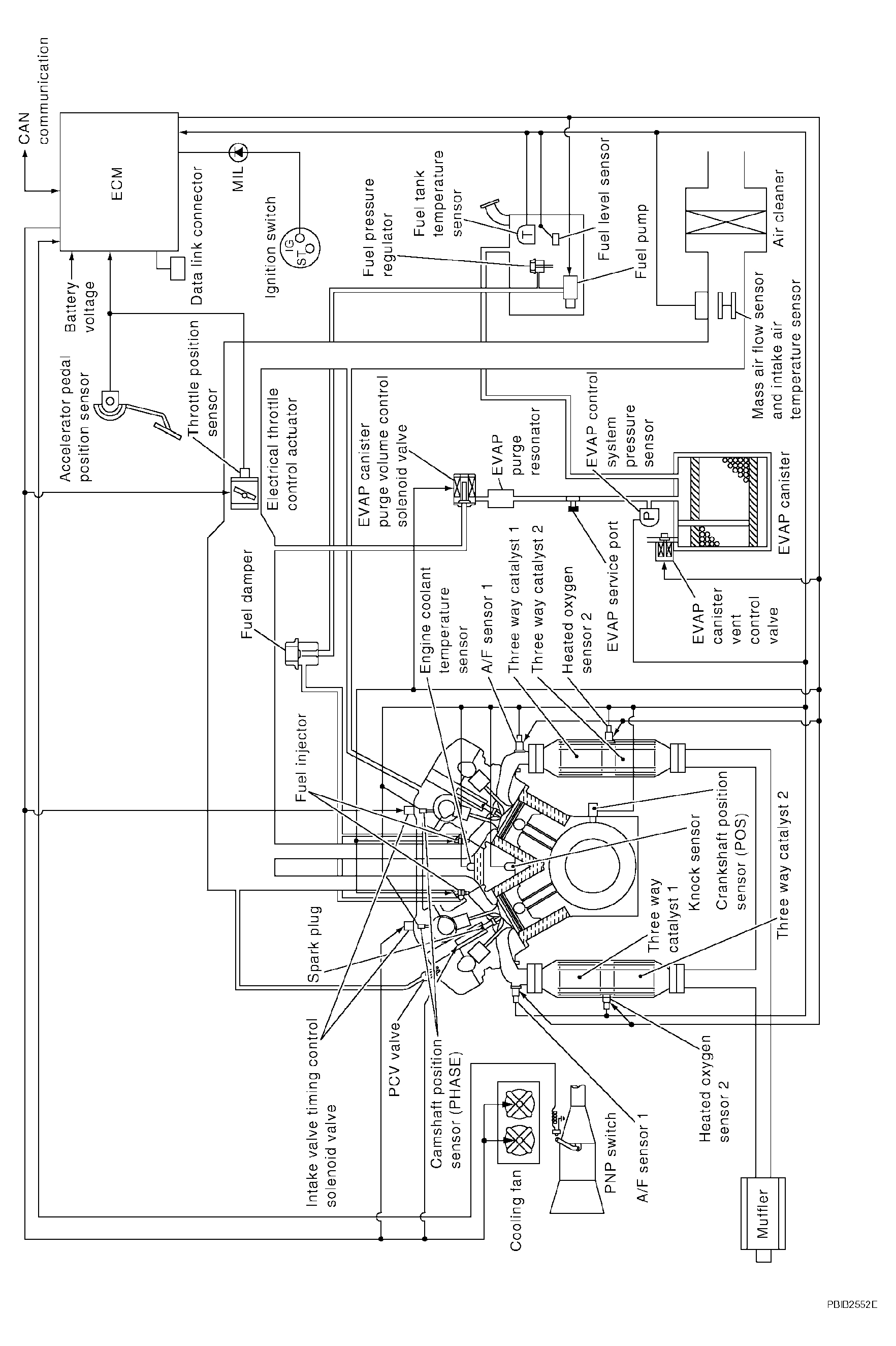

Fig 1: Engine Control System Diagram (A/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
