System Diagram (M/T Models)

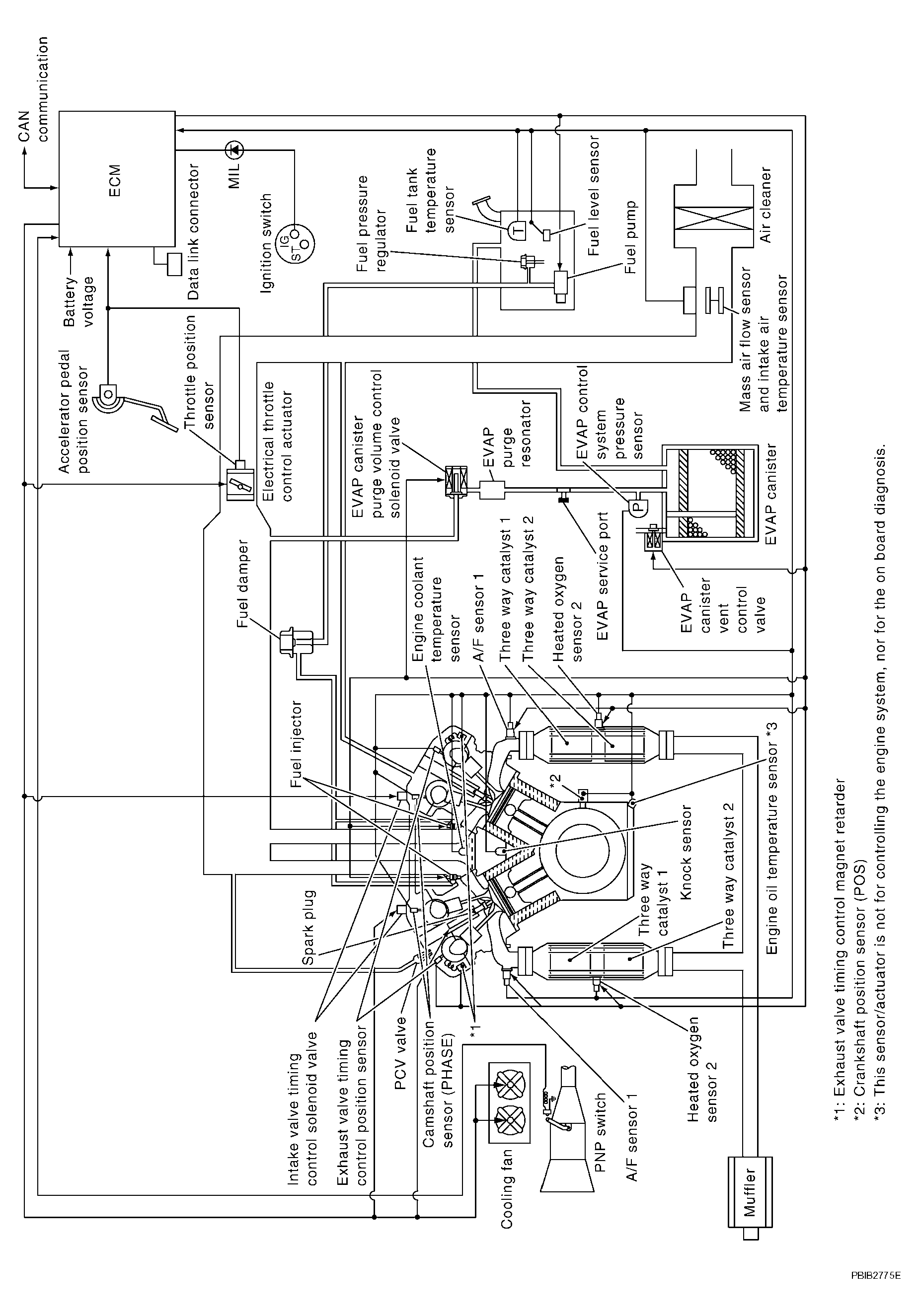

Fig 1: Engine Control System Diagram (M/T Models)
G04119499Courtesy of NISSAN MOTOR CO., U.S.A.
