Engine Control System - Introduction (Sedan)
›
Trouble Diagnosis
›
Circuit Diagram
›
2WD Models
2WD Models

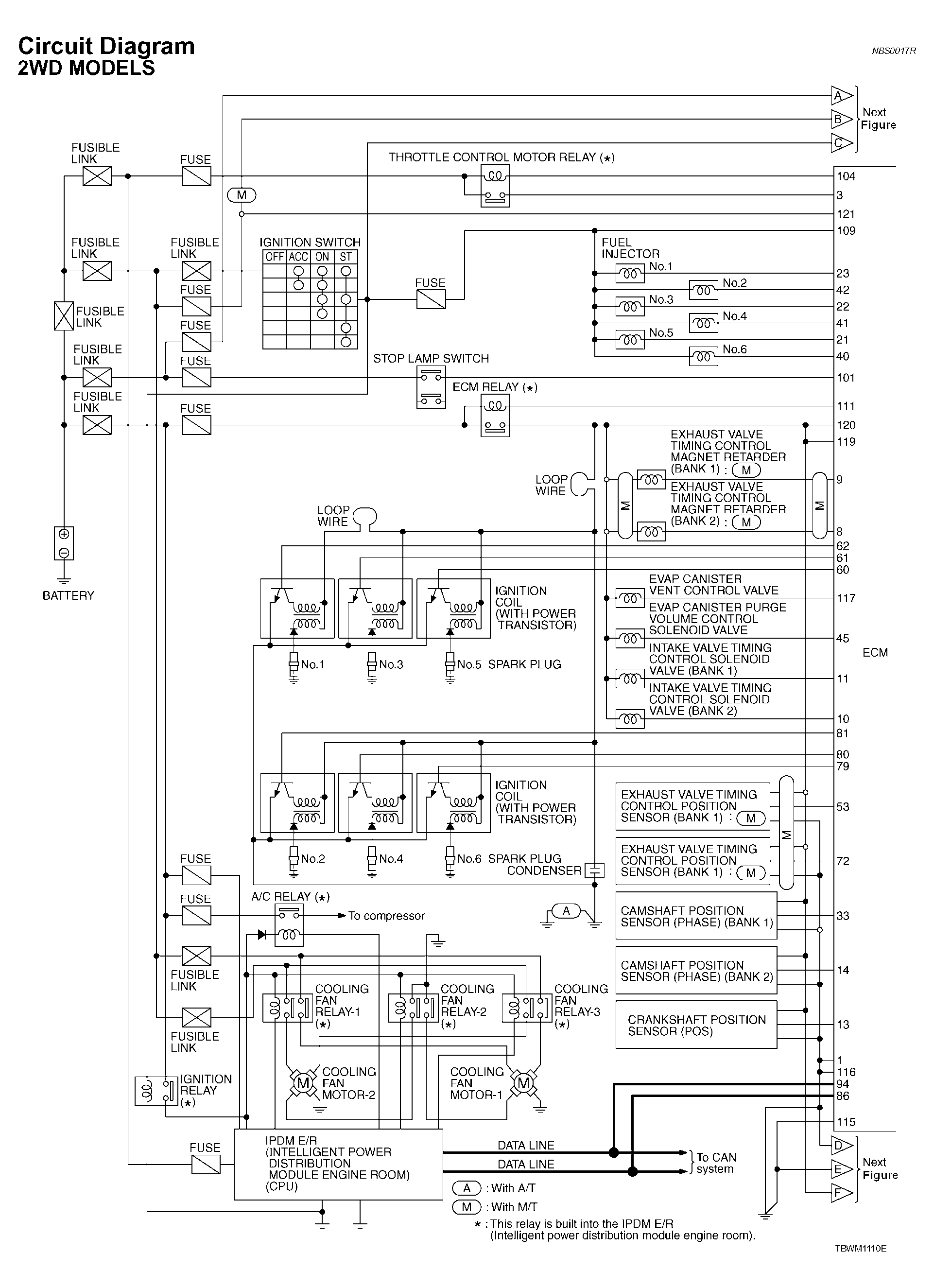

Fig 1: Engine Control System Circuit Diagram - 2WD Models (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

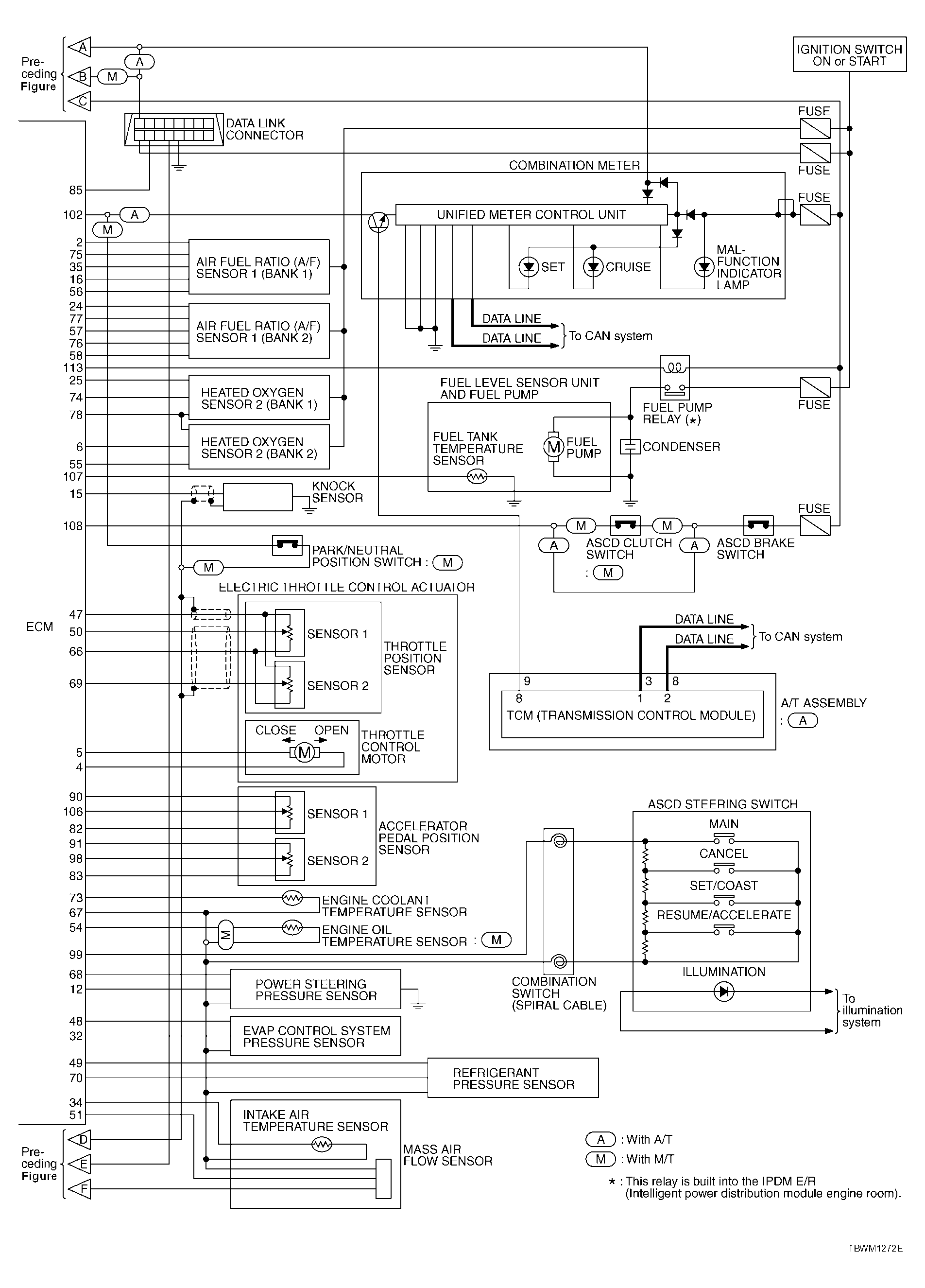

Fig 2: Engine Control System Circuit Diagram - 2WD Models (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
