Removal and Installation: Removal
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

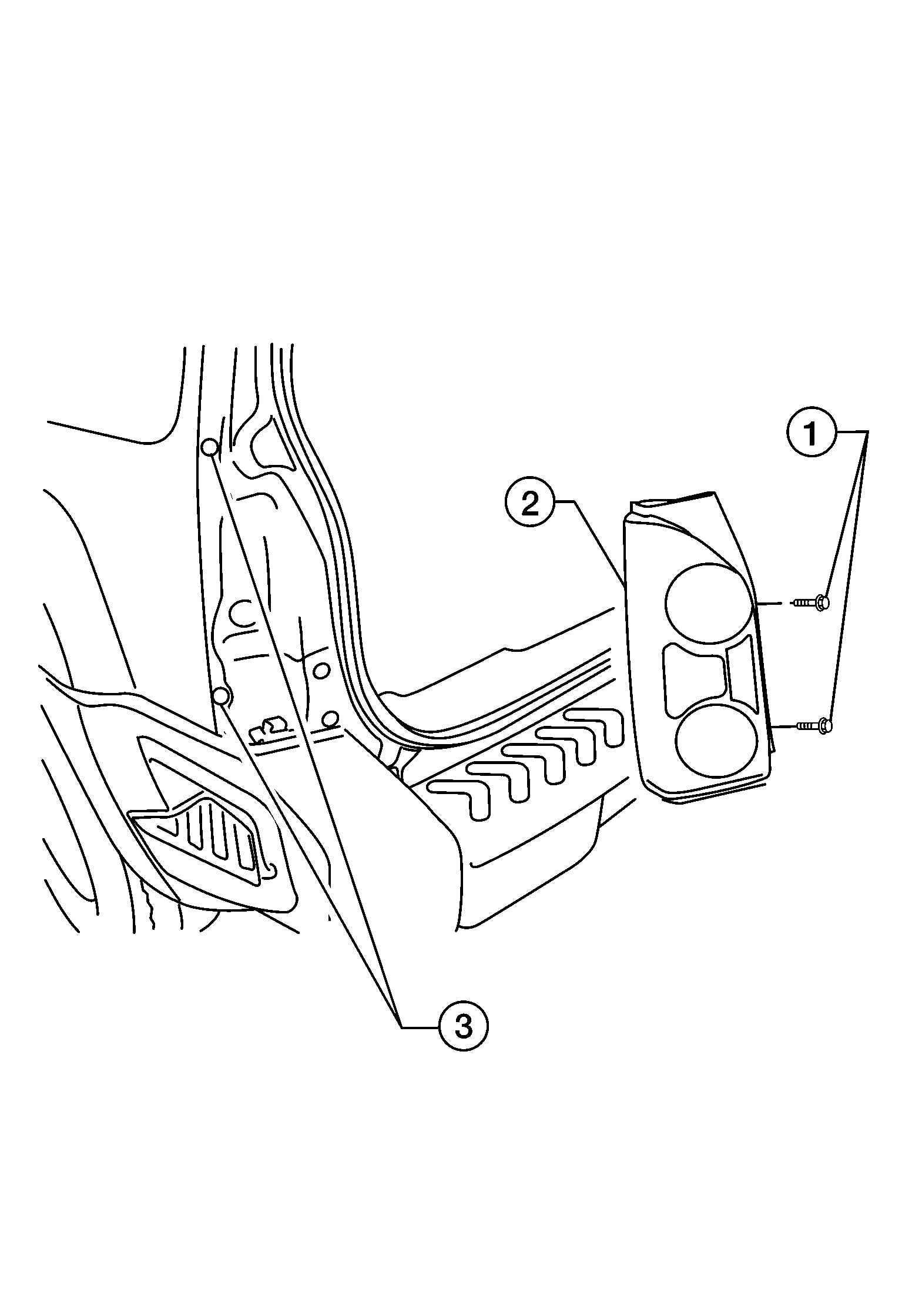

- Remove rear combination lamp bolts (1).
- Rear combination lamp locator (3)
- Pull the lamp assembly (2) rearward to remove from the vehicle.
- Disconnect the connector and remove the rear combination lamp.
Courtesy of NISSAN MOTOR CO., U.S.A.
