Components (AWD Models)

CAUTION: Securely insert harness connector to pressure sensor.

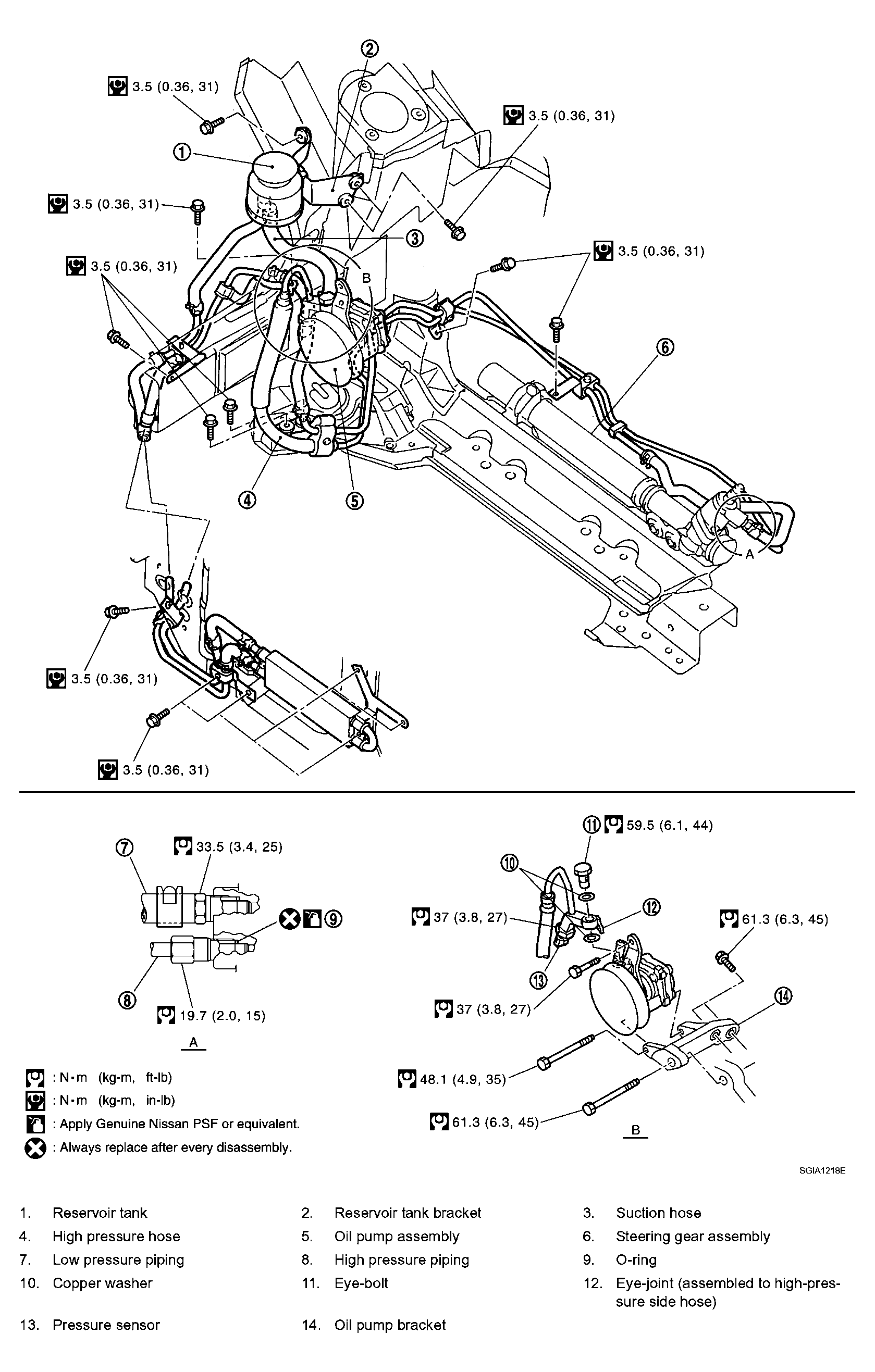

Fig 1: Hydraulic Line Replacement Components With Torque Specifications (AWD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
