Disassembly and Assembly: Disassembly

Remove all parts from jacket tube assembly.

• When remove tilt lever, perform as shown in the figure.
  Fig 1: Identifying Tilt Lever

  Courtesy of NISSAN MOTOR CO., U.S.A.

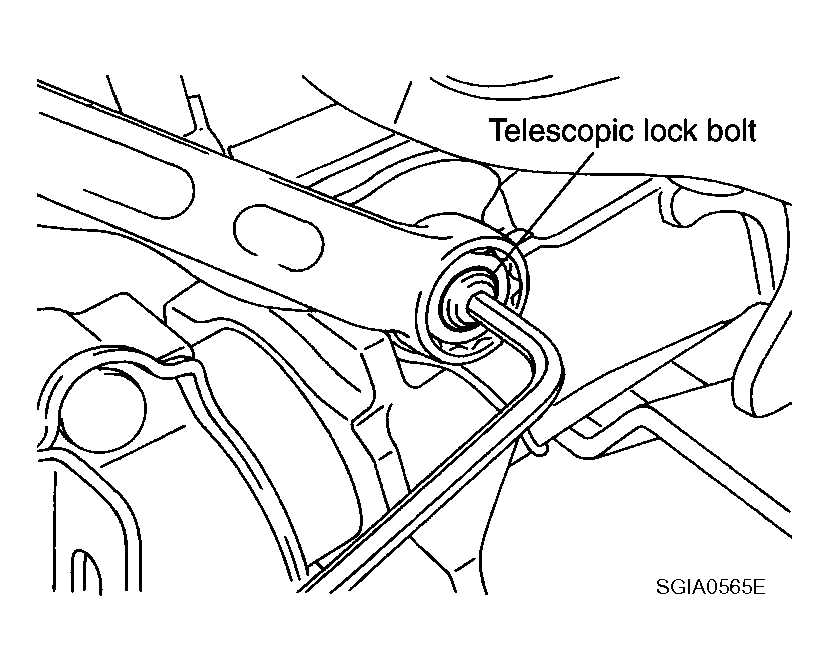

• When remove telescopic lever, perform as shown in the figure.
  Fig 2: Identifying Telescopic Lever

  Courtesy of NISSAN MOTOR CO., U.S.A.

Remove parts from jacket tube assembly. Refer to COMPONENT (WITH AUTOMATIC DRIVE POSITIONER)
