Intelligent Key System/Engine Start Function: Schematic

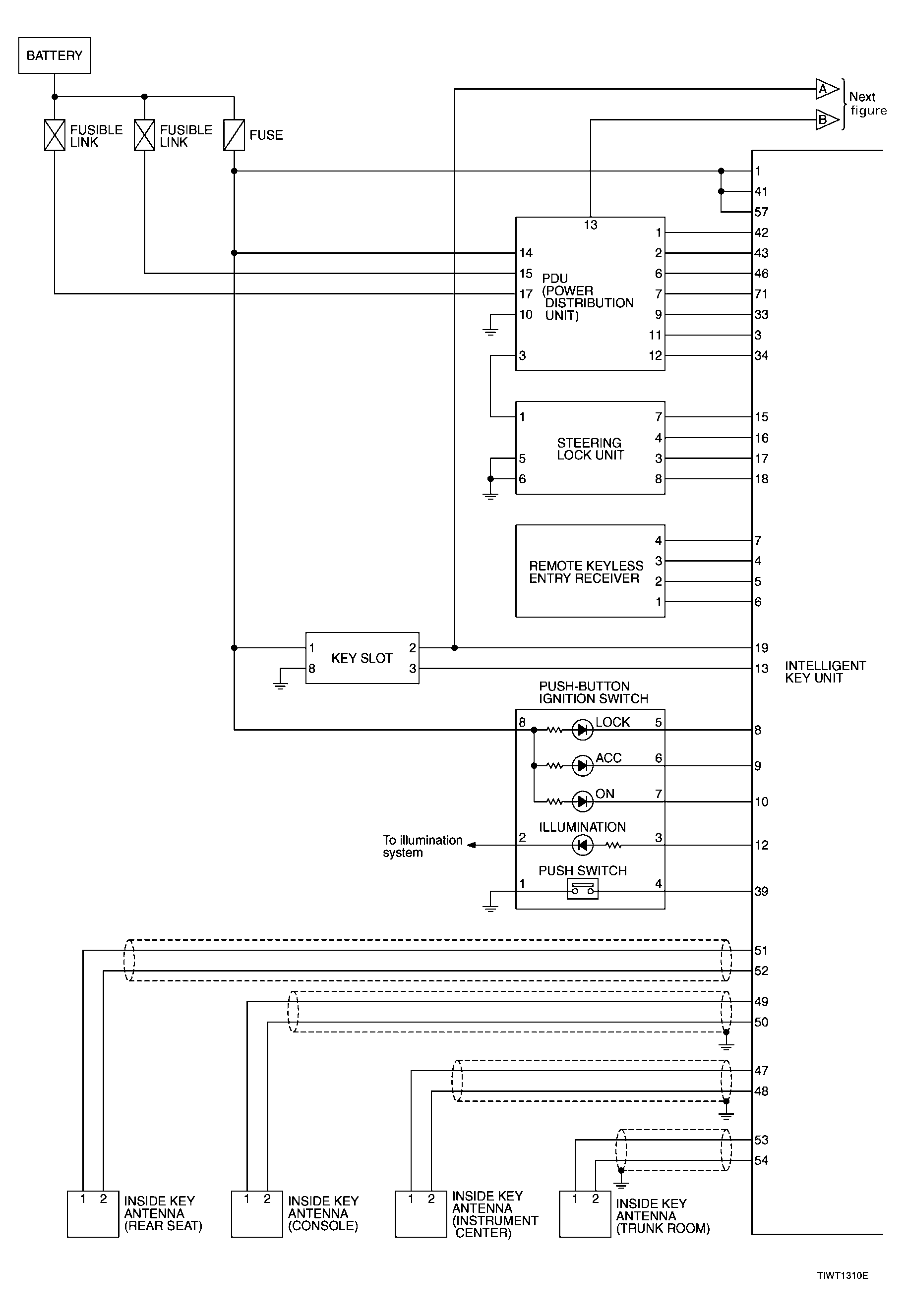

Fig 1: Intelligent Key System/Engine Start Schematic Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

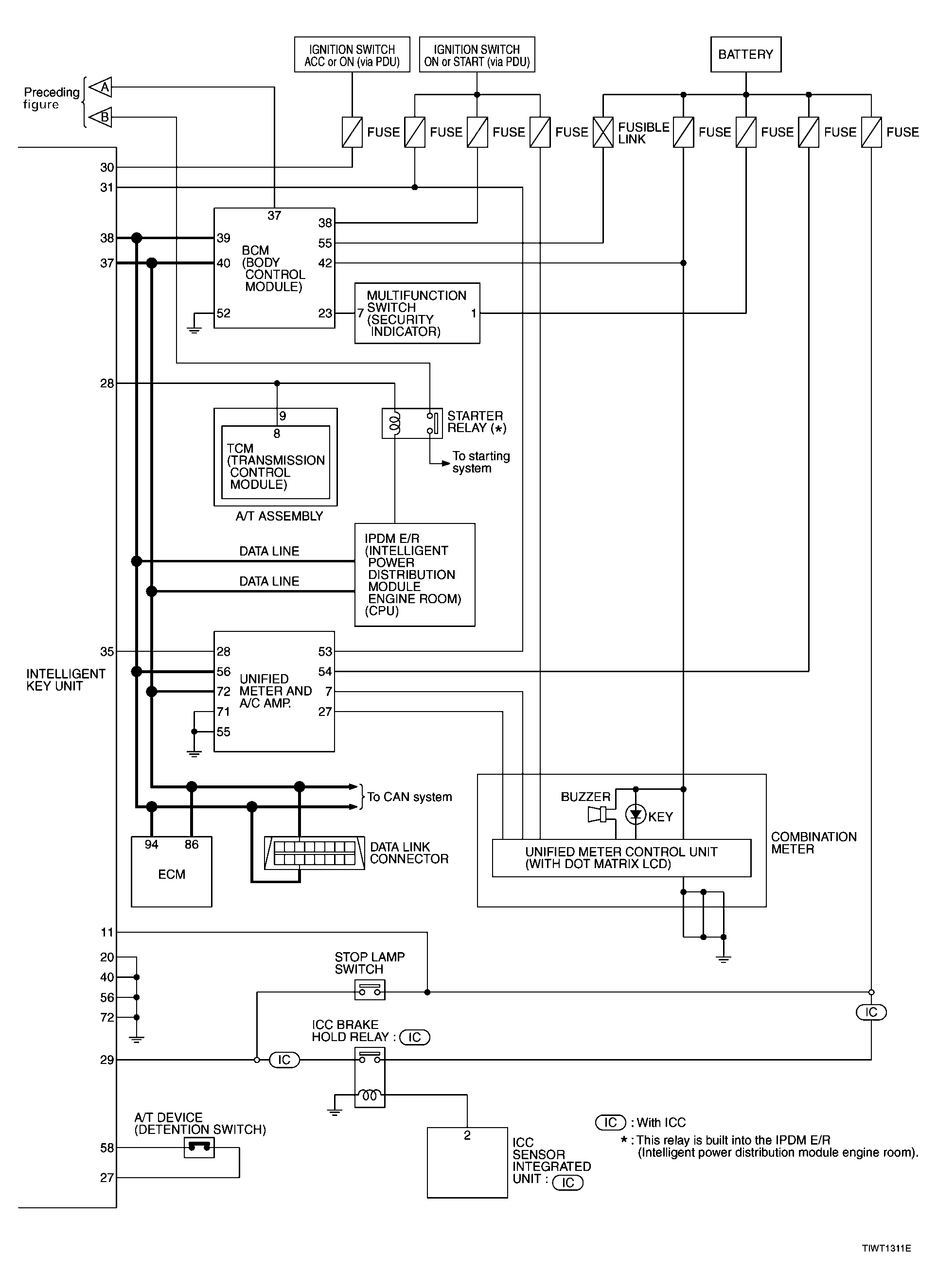

Fig 2: Intelligent Key System/Engine Start Schematic Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
