CAN Communication Unit
›
Input/Output Signal Chart
›
2WD models
2WD models

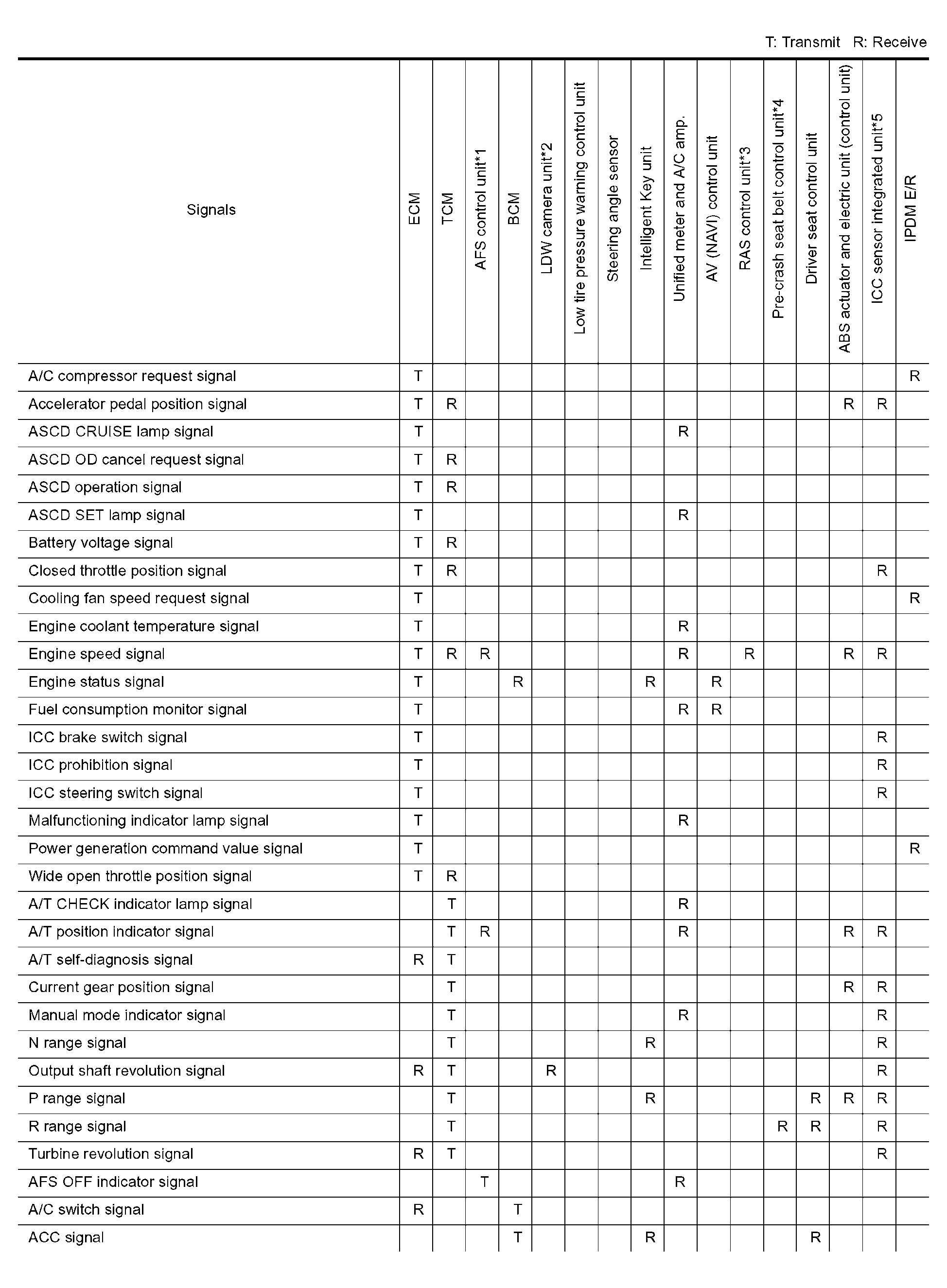

Fig 1: Input/Output Signal Chart - 2WD Models (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

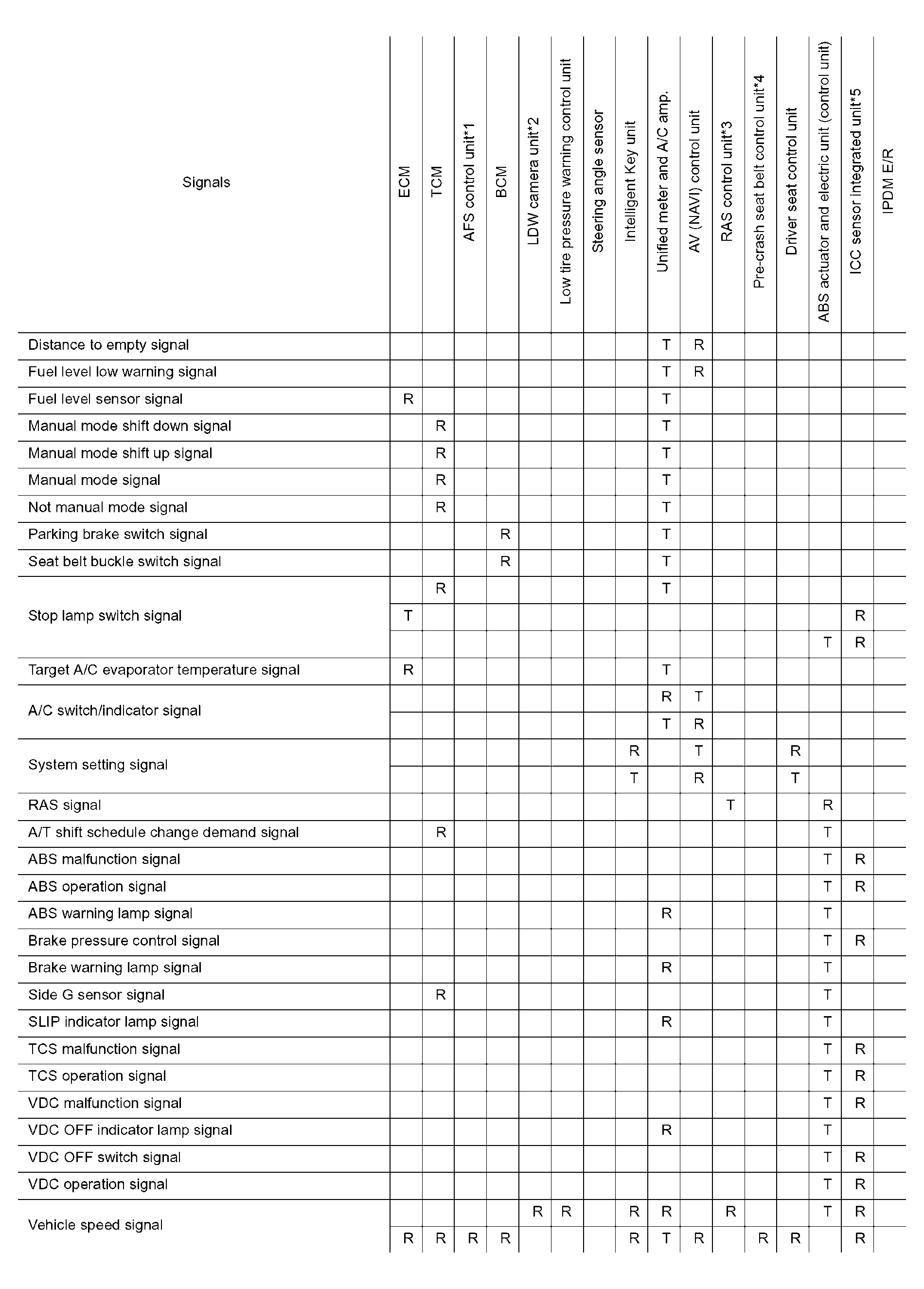

Fig 2: Input/Output Signal Chart - 2WD Models (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

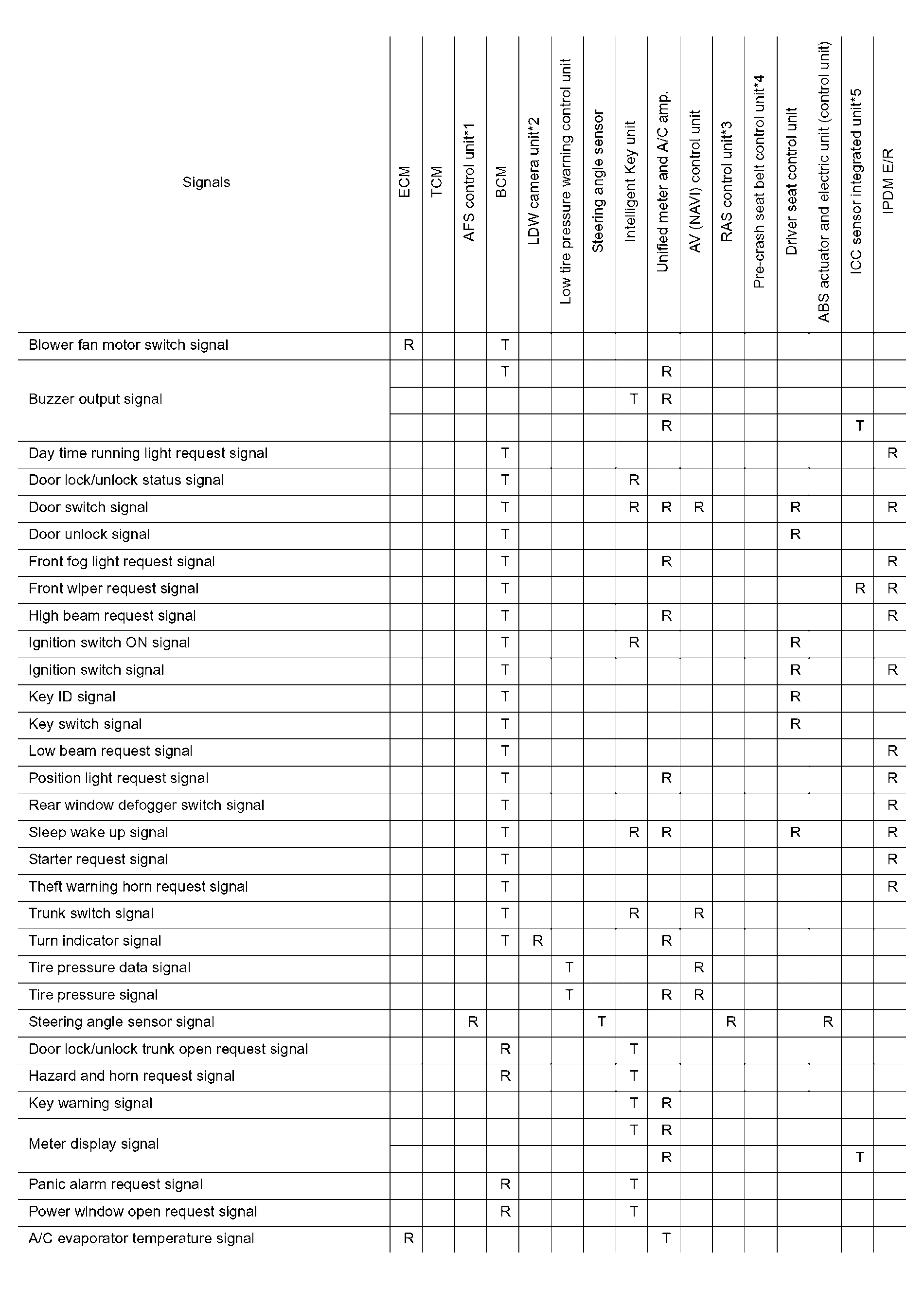

Fig 3: Input/Output Signal Chart - 2WD Models (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

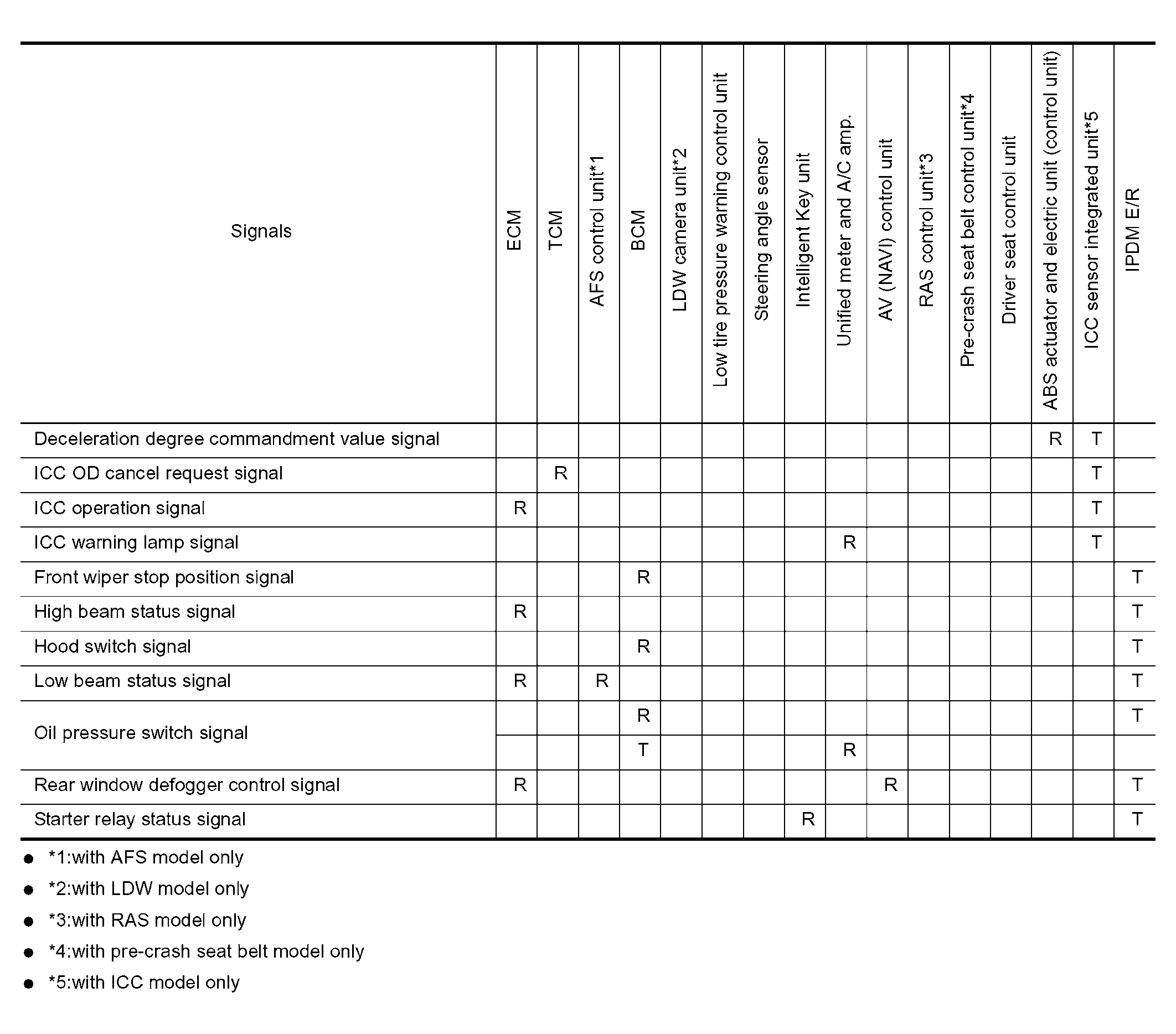

Fig 4: Input/Output Signal Chart - 2WD Models (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
