Can Communication
›
CAN Communication Unit
›
Input/Output Signal Chart
›
AWD models
AWD models

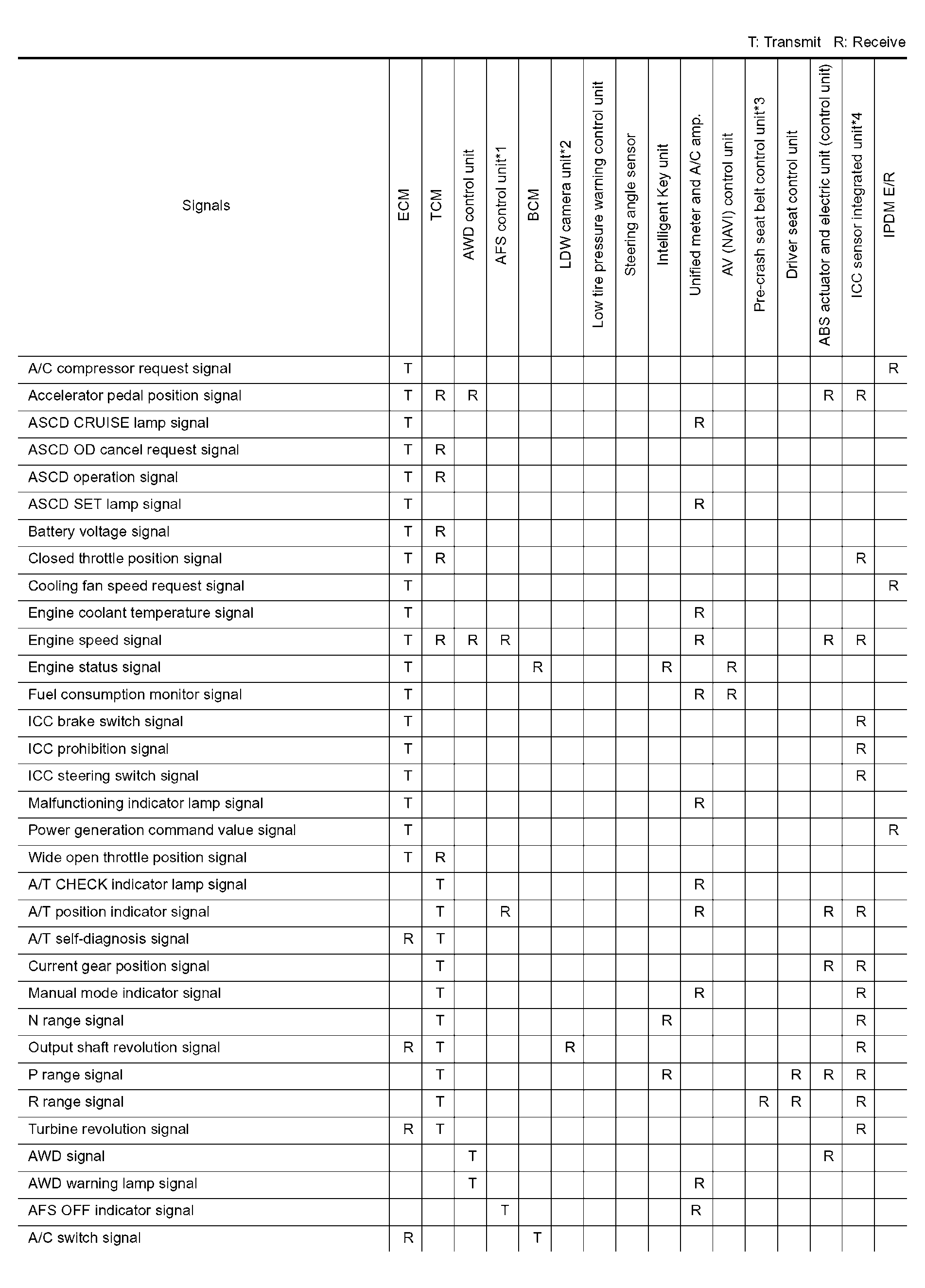

Fig 1: Input/Output Signal Chart - AWD Models (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Input/Output Signal Chart - AWD Models (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

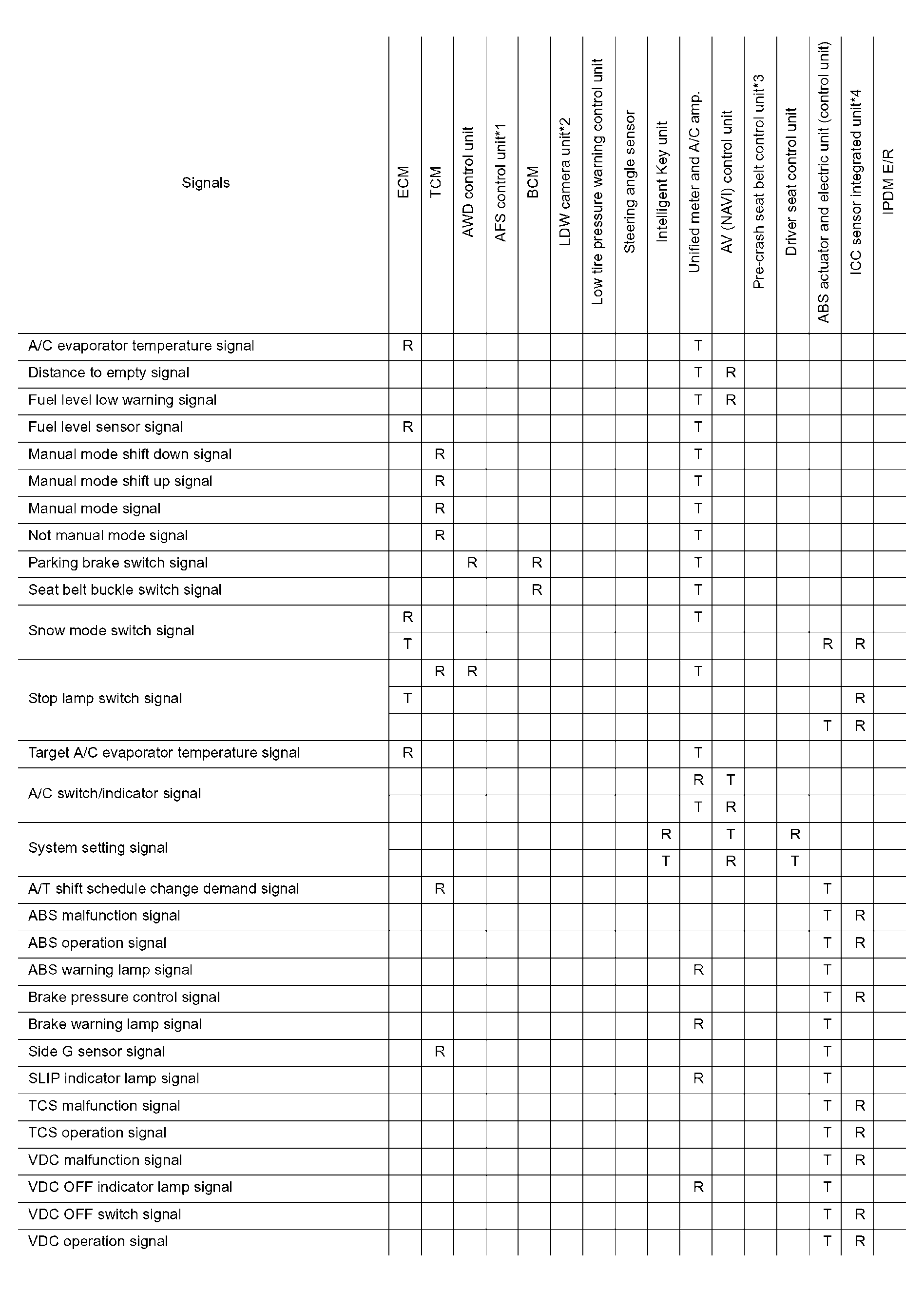

Fig 3: Input/Output Signal Chart - AWD Models (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

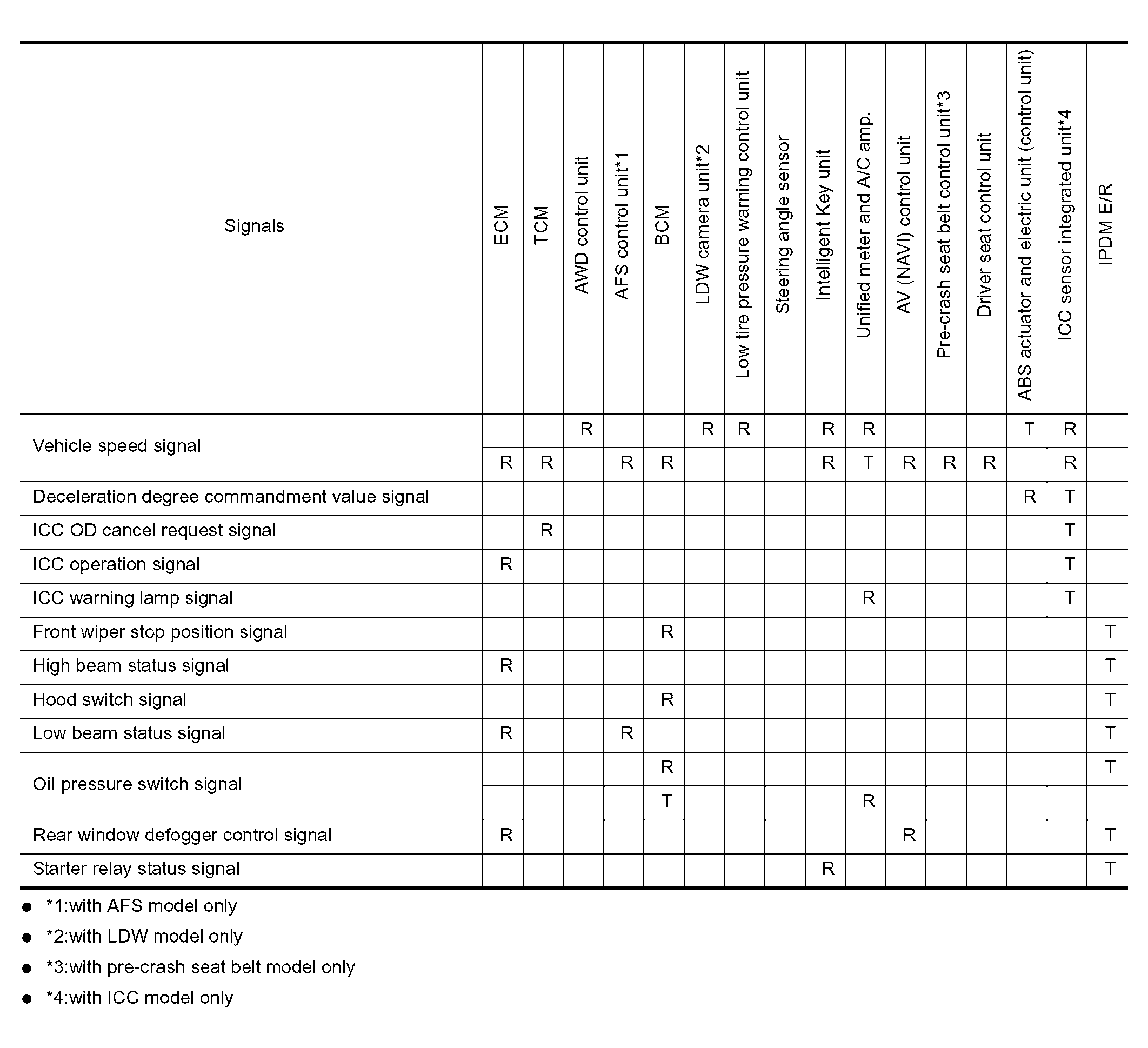

Fig 4: Input/Output Signal Chart - AWD Models (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
