Passenger Compartment: Measurement

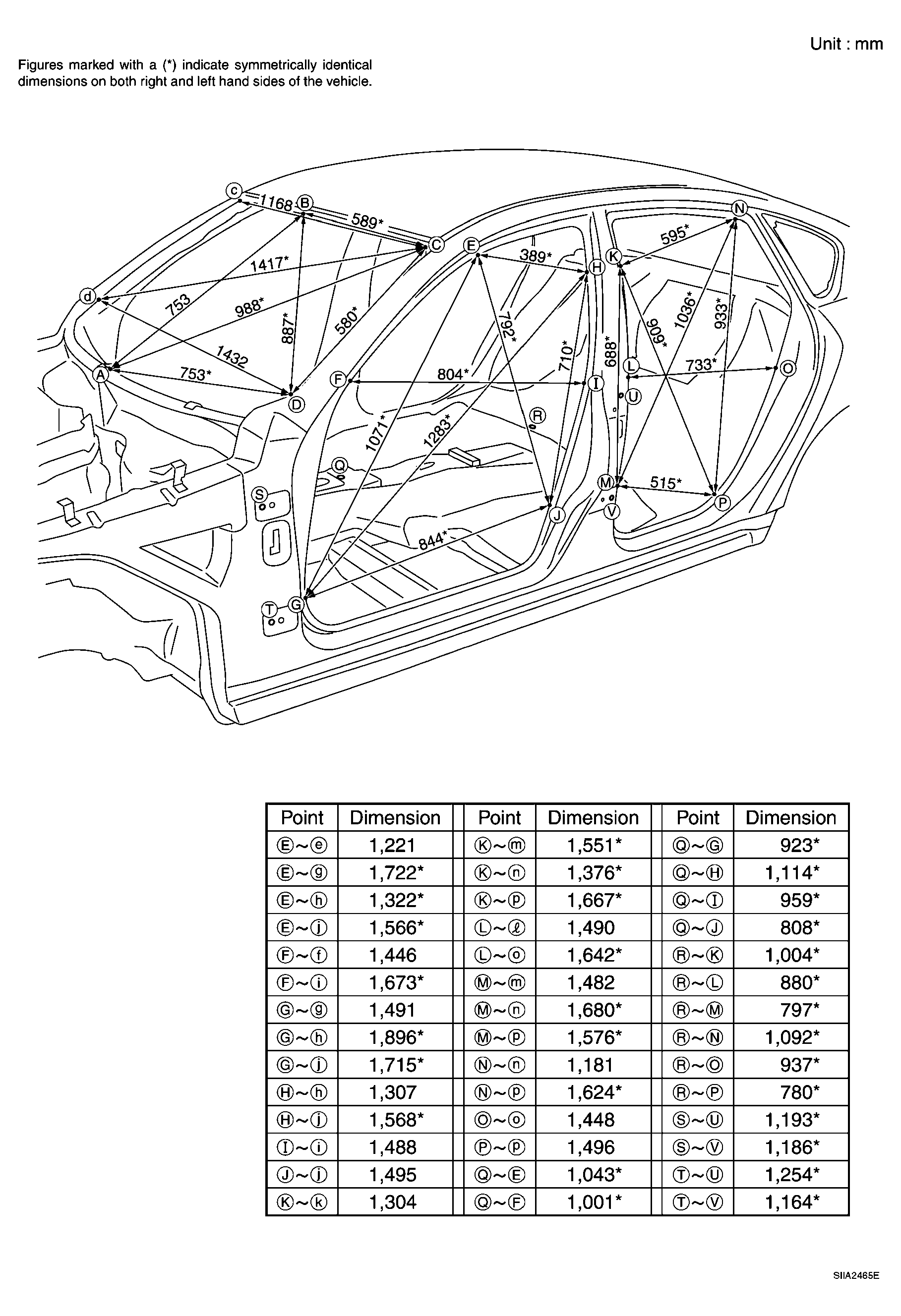

Fig 1: Identifying Passenger Compartment Measurement
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
