CONSULT-II Function (BCM): Notes

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II FUNCTION (BCM)

BCM diagnostic test item Check item diagnostic test mode Content
RETAINED PWR Work support Changes setting of each function.
Data monitor Displays the input data of BCM in real time.
Active test Gives a drive signal to a load to check the operation.
  1. Turn ignition switch "ON".
  2. Connect "CONSULT-II and CONSULT-II CONVERTER" to the data link connector (1).

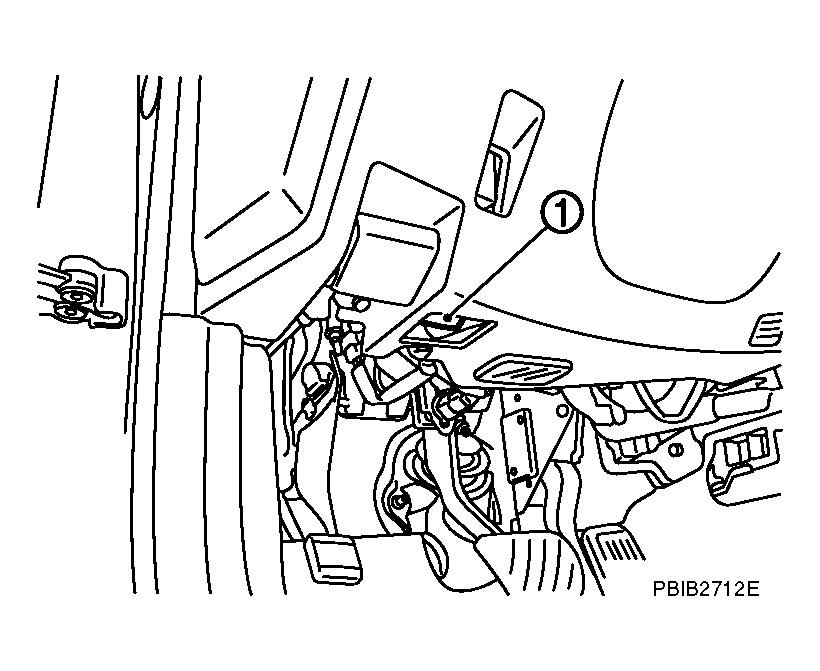

    Fig 1: Connecting Consult-II And Consult-II Converter To Data Link Connector
    G04145762Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Consult-II Display Screen
    G04151184Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "BCM".

    If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: Consult-II SELECT SYSTEM Display Screen
    G04083859Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "RETAINED PWR".
    Fig 4: CONSULT II Display - Select Test Item
    G04083213Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Select diagnosis mode.

    "ACTIVE TEST", "WORK SUPPORT" and "DATA MONITOR" are available.

    Fig 5: Consult-II SELECT DIAG MODE Display Screen
    G04083861Courtesy of NISSAN MOTOR CO., U.S.A.
