Removal and Installation: Removal

  1. Remove center console. Refer to "COMPONENT PARTS DRAWING ".
  2. Disconnect yaw rate/side G sensor harness connector.
  3. Remove mounting bolts. Remove yaw rate/side G sensor. (Shown in Fig 1 ).

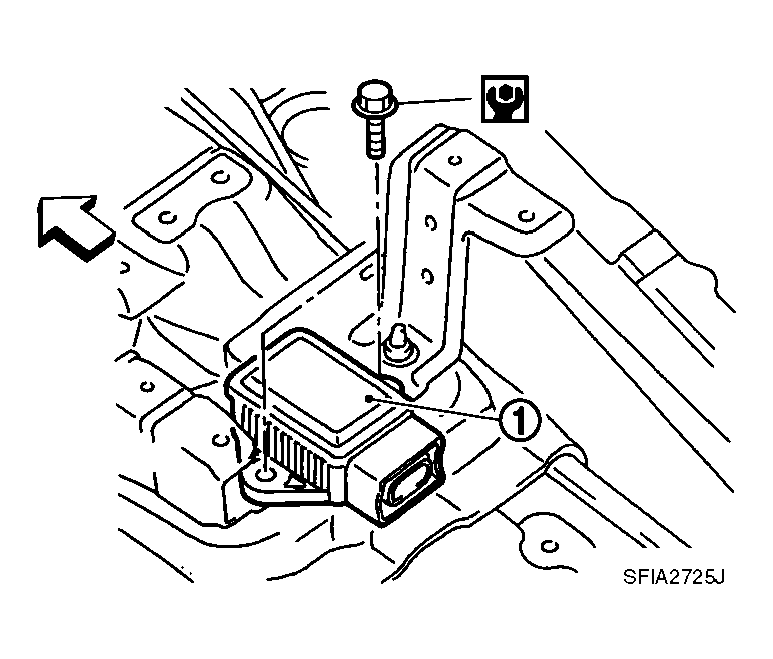

    Fig 1: Identifying G-Sensor
    G04144805Courtesy of NISSAN MOTOR CO., U.S.A.
