Removal and Installation: Removal

  1. Remove spiral cable assembly. Refer to "SPIRAL CABLE ".
  2. Remove steering angle sensor from spiral cable assembly.

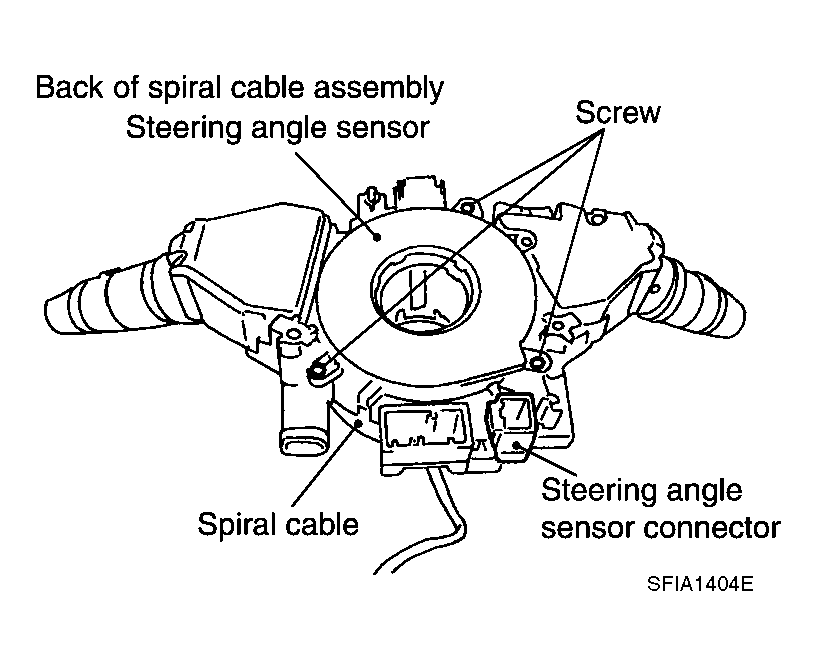

    Fig 1: Identifying Steering Angle Sensor
    G04144806Courtesy of NISSAN MOTOR CO., U.S.A.
