Removal and Installation
›
VK45DE Engine Models
›
Notes
VK45DE Engine Models: Notes

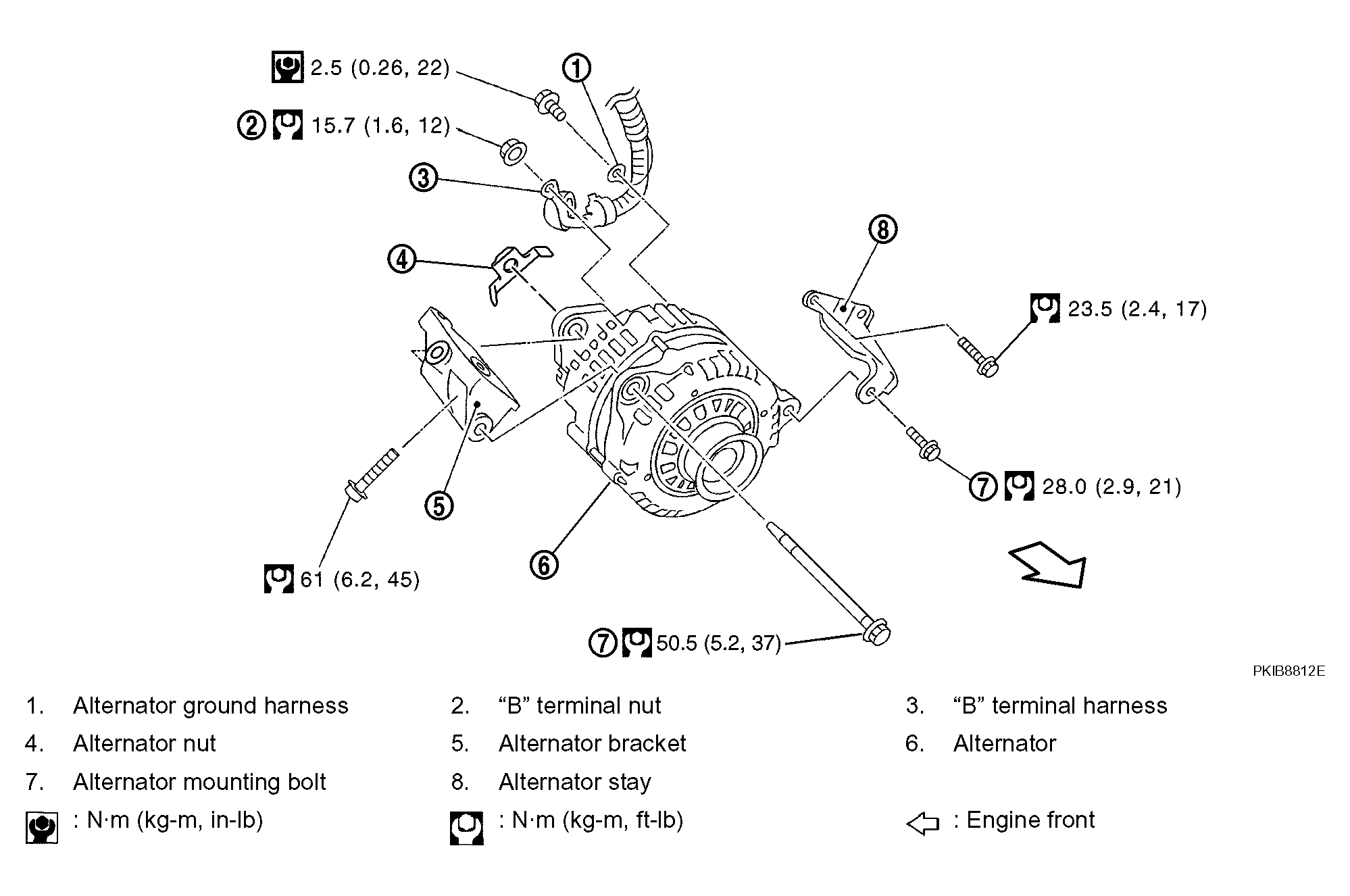

Fig 1: Alternator Replacement Components With Torque Specifications (VK45DE)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
