Alternator
›
Removal and Installation
›
VQ35DE Engine Models
›
Notes
VQ35DE Engine Models: Notes

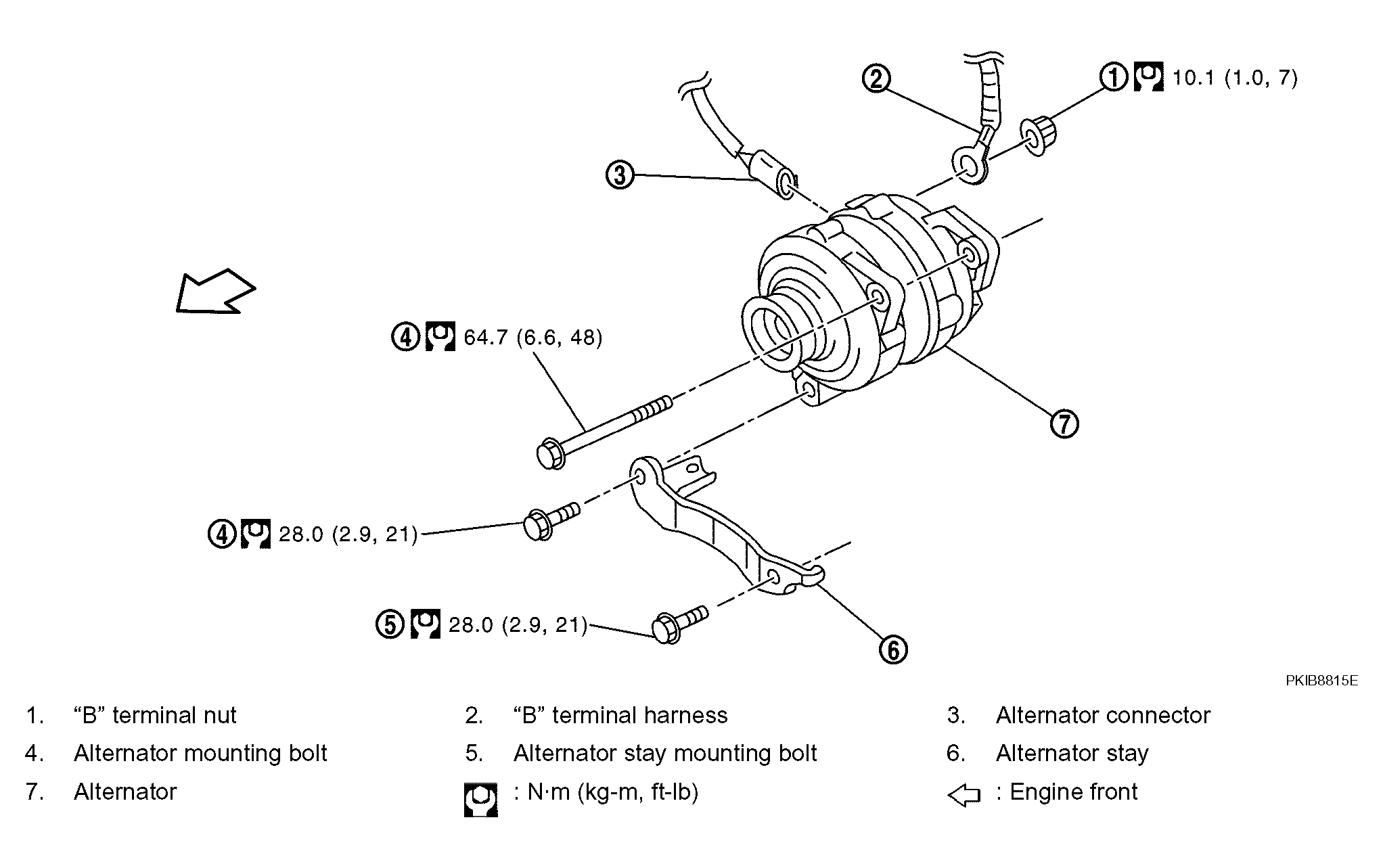

Fig 1: Alternator Replacement Components With Torque Specifications (VQ35DE)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
