Internal Circuit

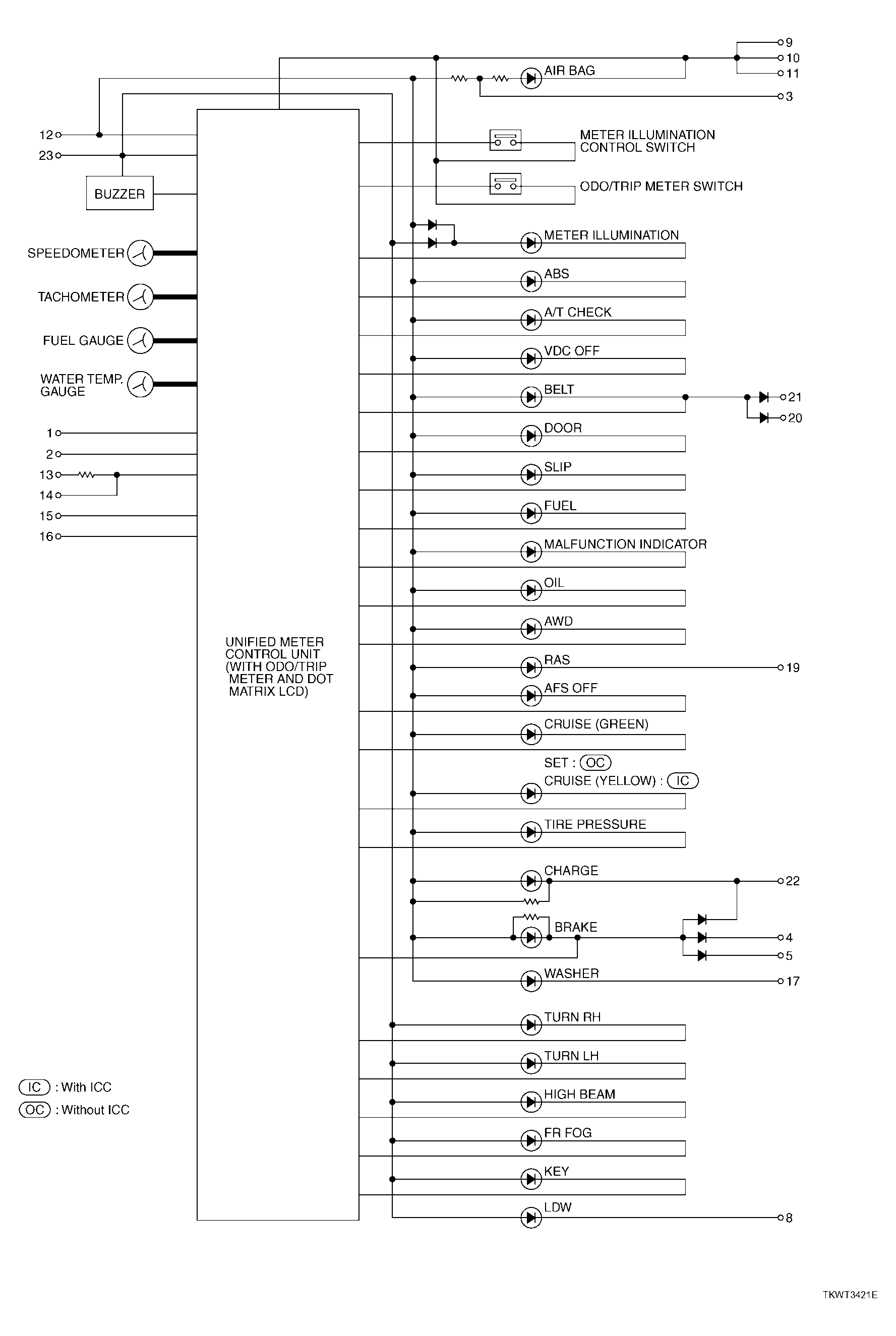

Fig 1: Combination Meter Internal Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
