Warning Chime: Schematic

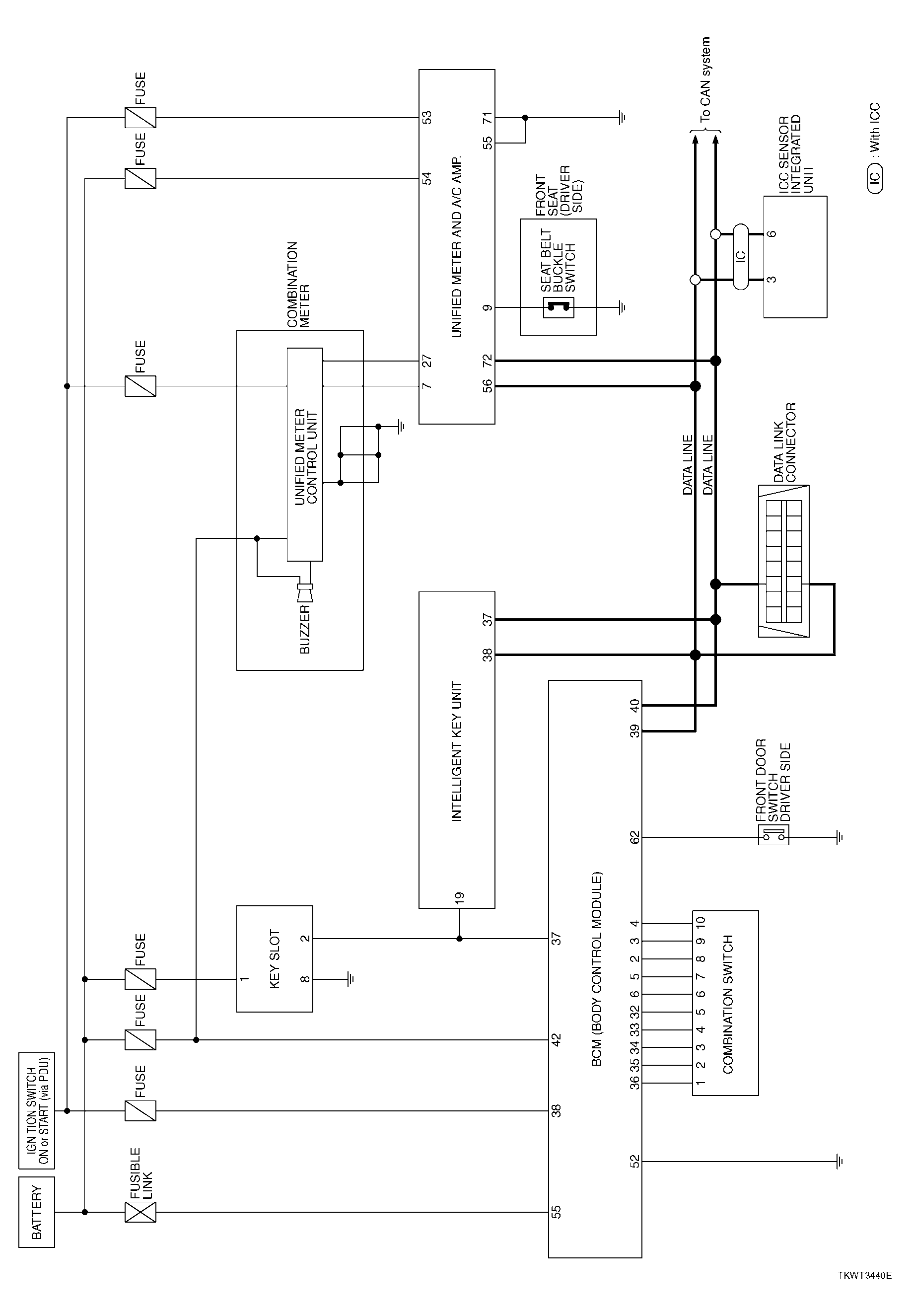

Fig 1: Warning Chime Schematic Diagram
G04140611Courtesy of NISSAN MOTOR CO., U.S.A.
