Engine Lubrication System (VQ35DE)
›
Lubrication System
›
System Chart
System Chart

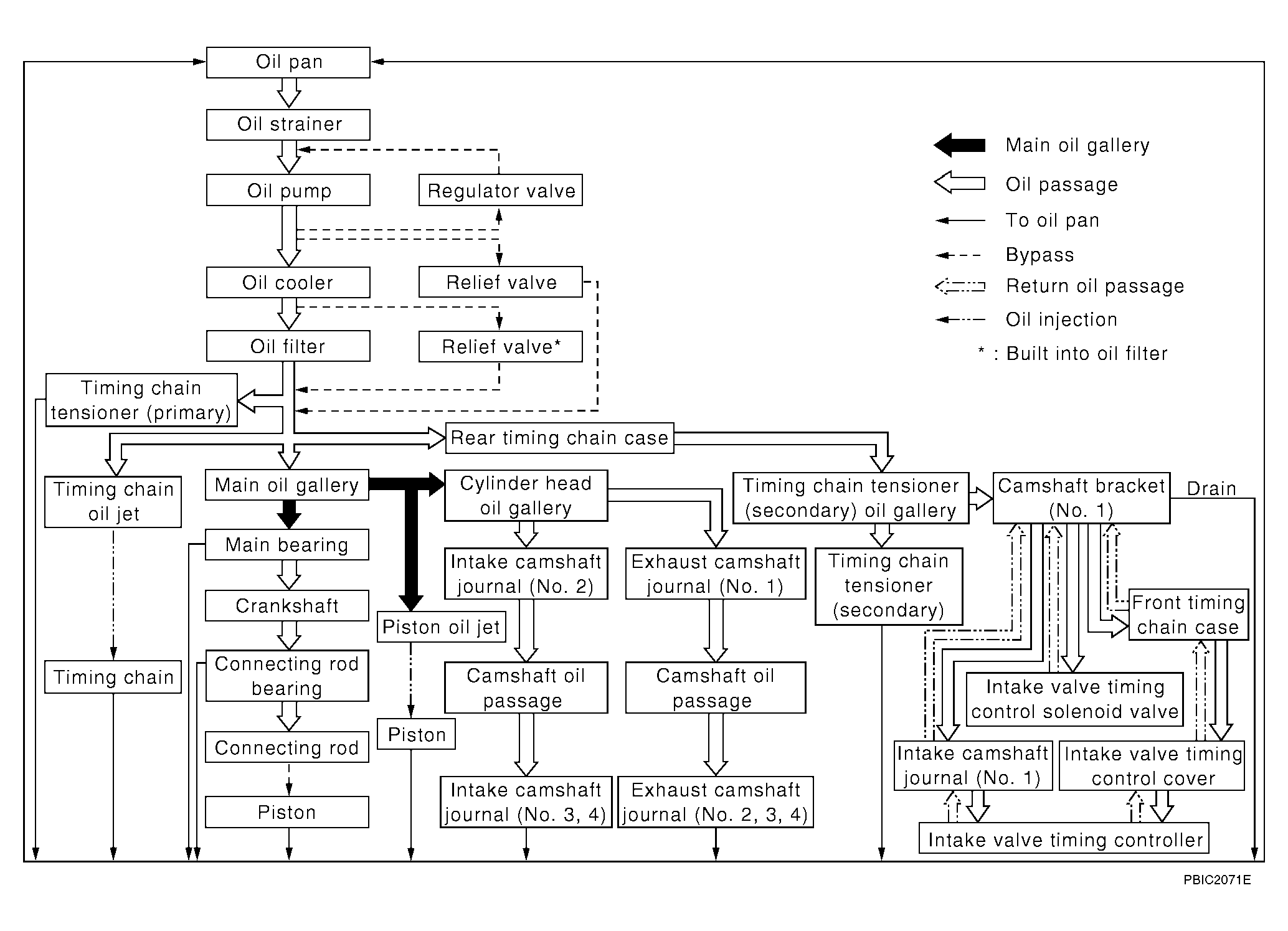

Fig 1: Lubrication System Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
