Cooling Fan Control Module
Cooling fan control module (1) receives ON/OFF pulse duty signal from IPDM E/R. Corresponding to this ON/OFF pulse duty signal, cooling fan control module sends cooling fan motor operating voltage to cooling fan motor. The revolution speed of cooling fan motor is controlled by duty cycle of the voltage.

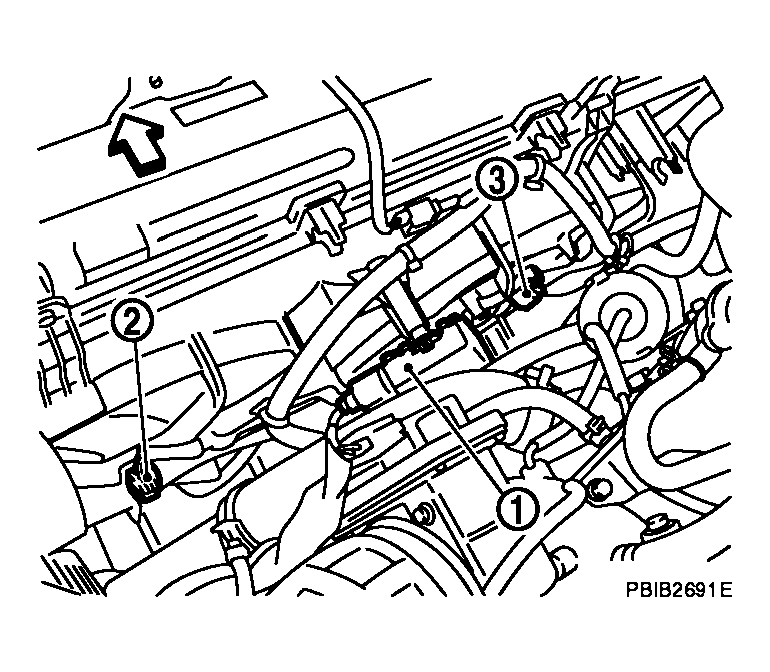

- <-: Vehicle front
- Cooling fan motor-1 harness connector (2)
- Cooling fan motor-2 harness connector (3)
