Fuel Pump Control Module

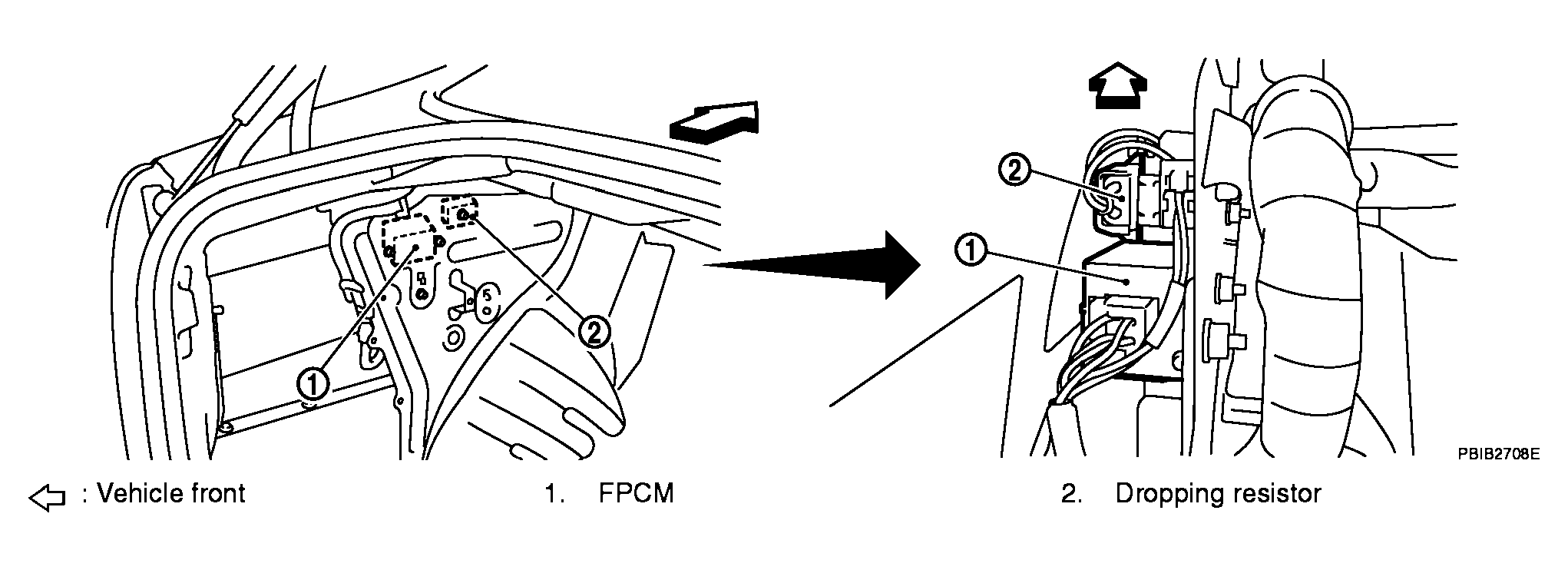

Fig 1: Identifying Fuel Pump Control Module
G04138779Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Check voltage between FPCM terminal 4 and ground under the following conditions.
    FPCM TERMINAL 4 AND GROUND

    Condition Voltage
    When engine cranking Approx. 0V
    After starting engine Approx. 5V
  4. If NG, replace fuel pump control module.
