Engine Control System (VQ35DE) - Introduction
›
Basic Service Procedure
›
Idle Mixture Ratio Adjustment
›
Overall Sequence
Overall Sequence

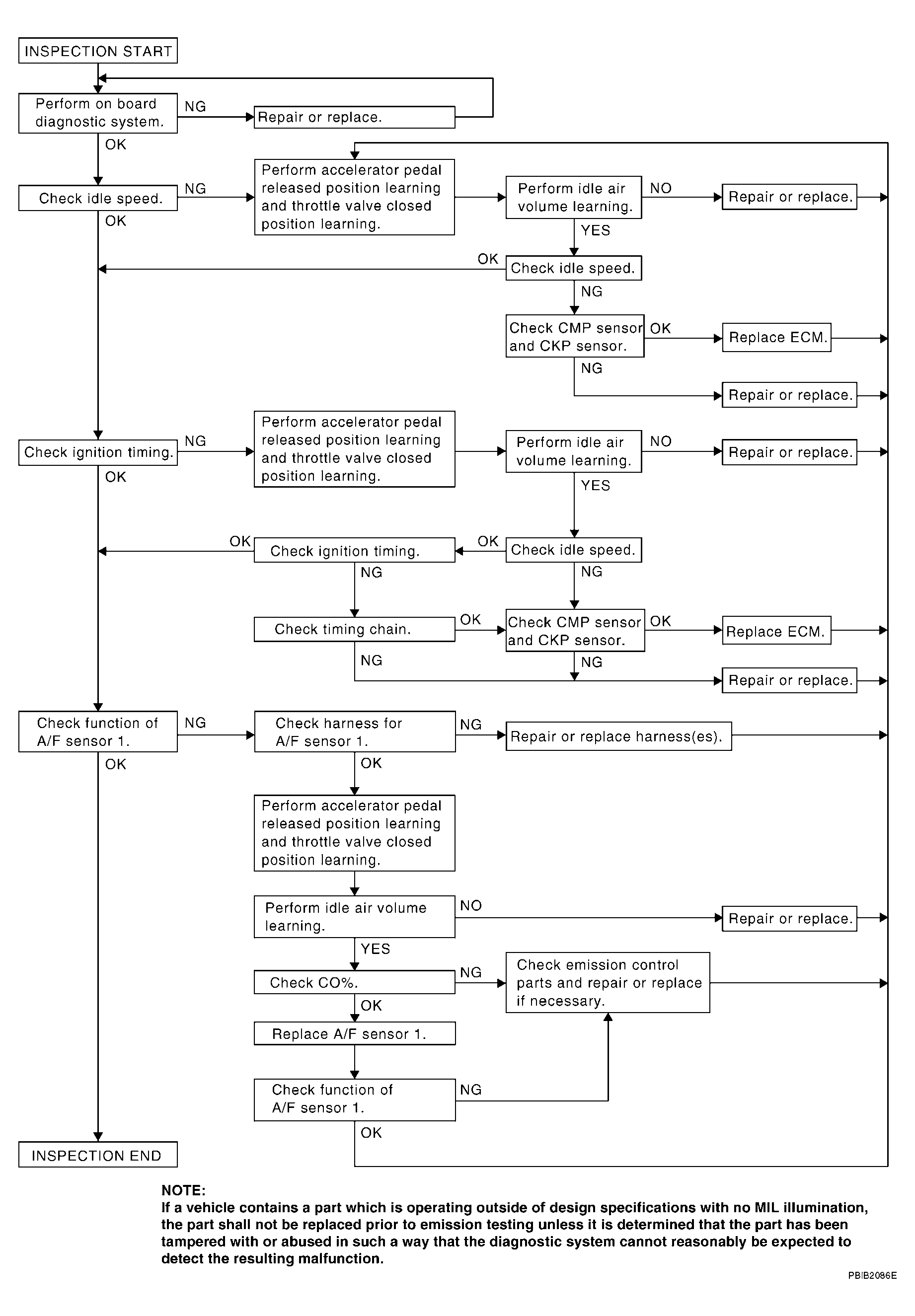

Fig 1: Basic Service Procedure Overall Sequence Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
