Method A

  1. Attach timing light to loop wire as shown.

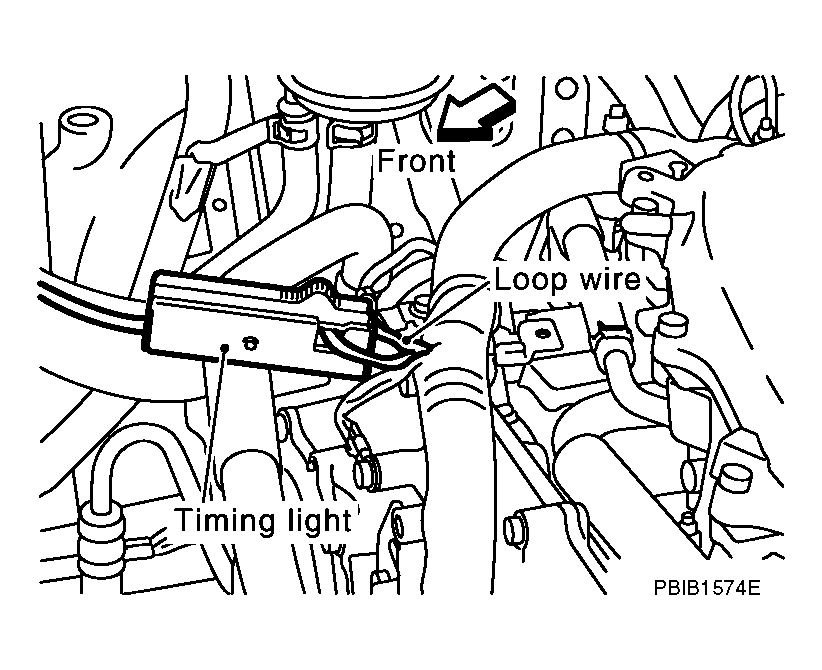

    Fig 1: Attaching Timing Light To Loop Wire
    G04138205Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.

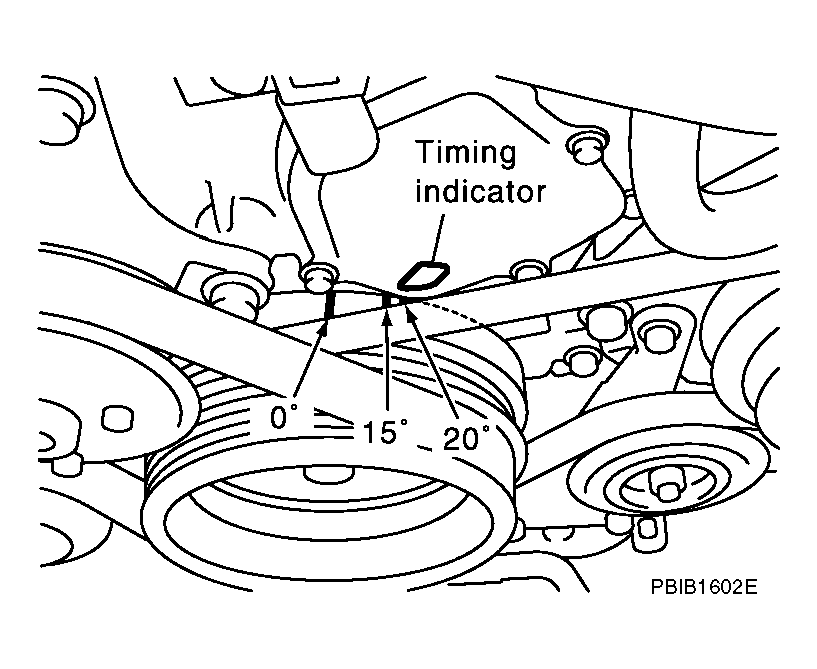

    Fig 2: Identifying Ignition Timing
    G04138206Courtesy of NISSAN MOTOR CO., U.S.A.
