Engine Control System (VQ35DE) - Introduction
›
Engine Control System
›
System Diagram
System Diagram

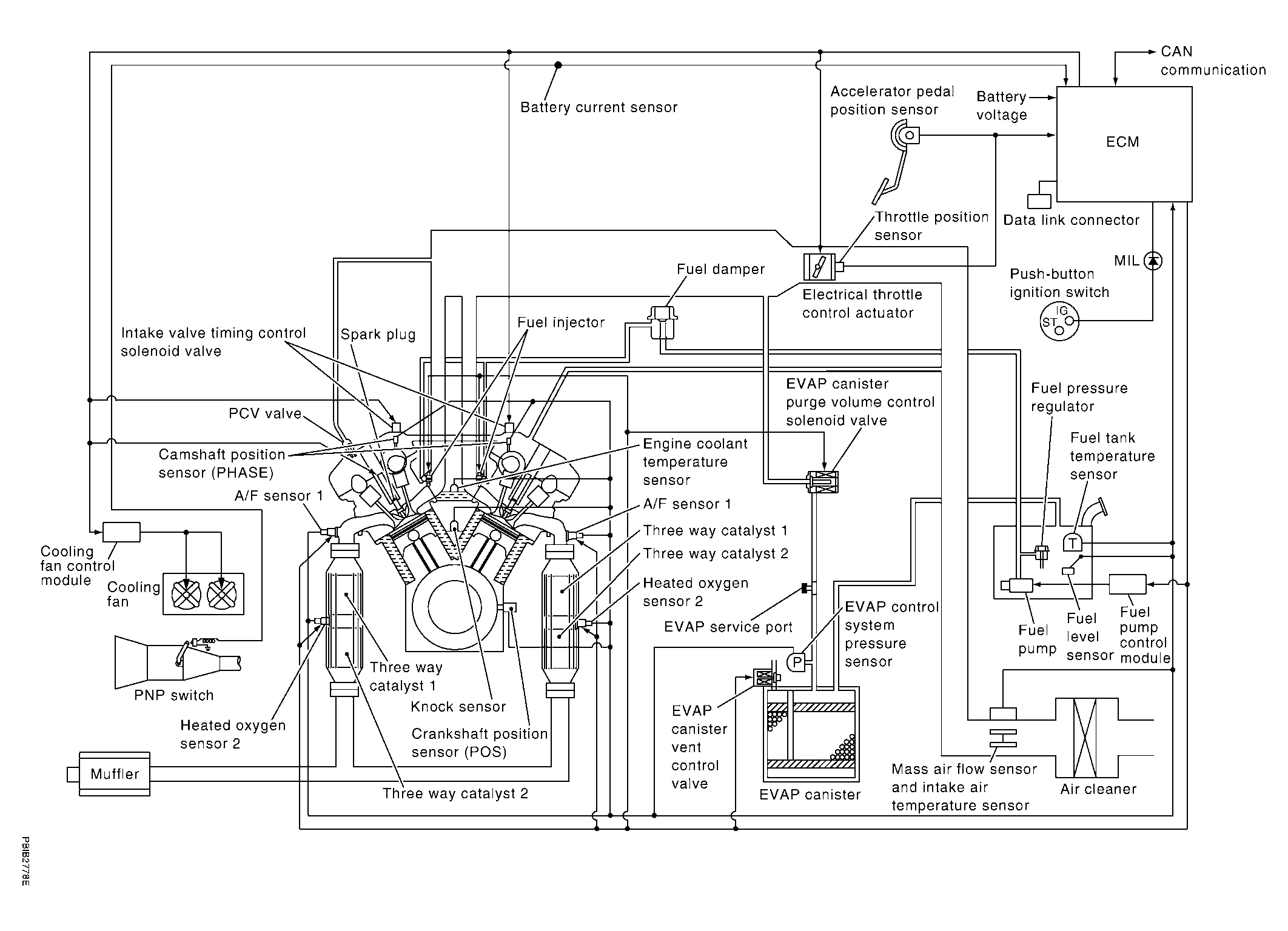

Fig 1: Identifying Engine Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
