Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

For SRS, go to SUPPLEMENTAL RESTRAINT SYSTEM .

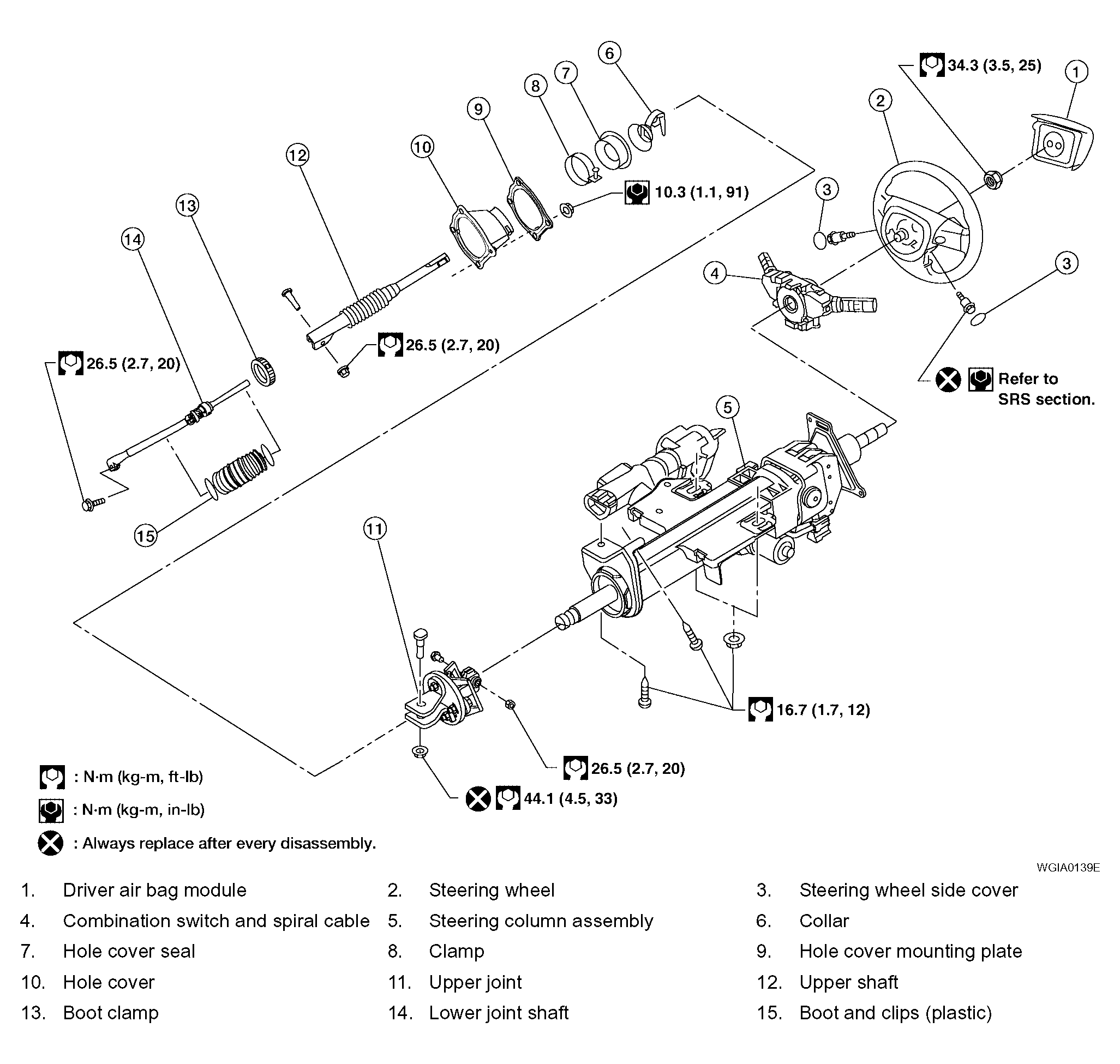

Fig 1: Steering Column Replacement Components With Torque Specifications

G04134799

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Do not exert any load or impact in the axial direction immediately before or after column removal.
Do not to move steering gear during removal of steering column assembly.
