Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove defrost grille. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Disconnect the connector.
Turn the optical sensor counterclockwise to remove it from defroster grille.

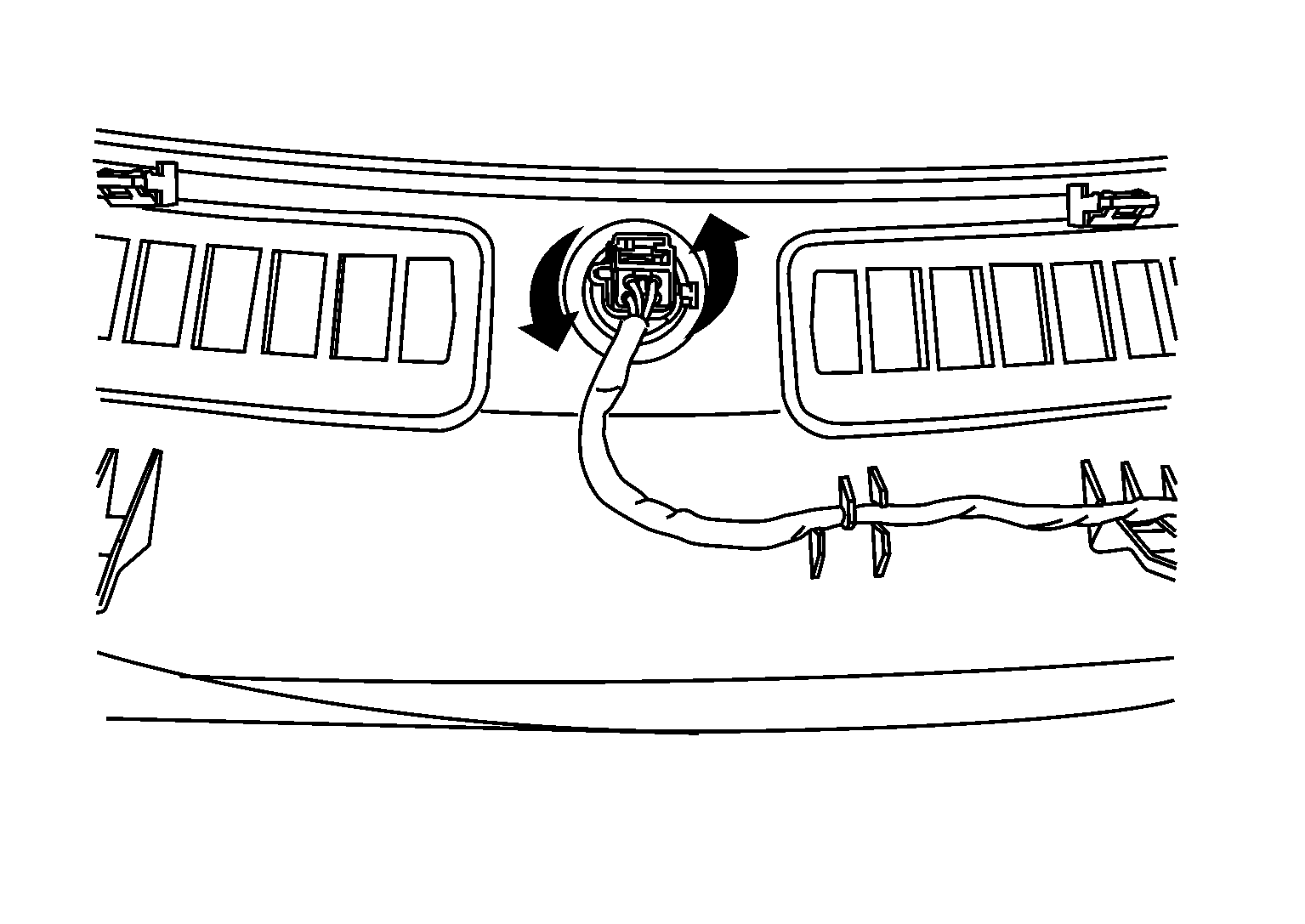

Fig 1: Identifying Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

Installation is in the reverse order of removal.
