Rear Final Drive Assembly: Components

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

For GI, go to GENERAL INFORMATION .

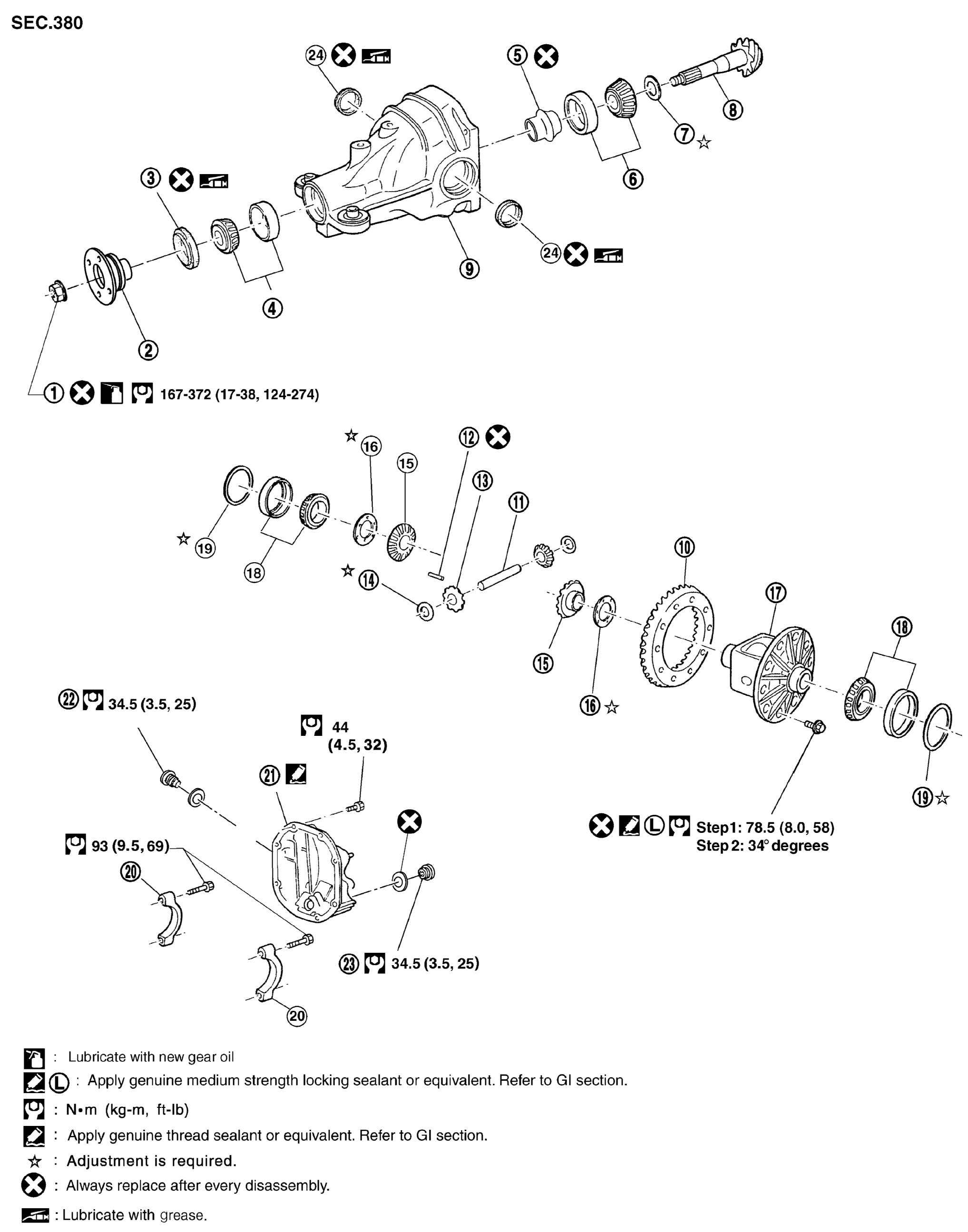

Fig 1: Exploded View Of Rear Final Drive Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Final drive pinion nut torque will be determined when adjusting the total preload. Refer to "TOTAL PRELOAD ".
