Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative terminal.
  2. Remove instrument lower panel LH. Refer to "INSTRUMENT LOWER COVER LH ".
  3. Remove knee protector. "INSTRUMENT PANEL ASSEMBLY ".
  4. Disconnect BCM electrical connectors.
  5. Remove BCM screws and remove BCM.

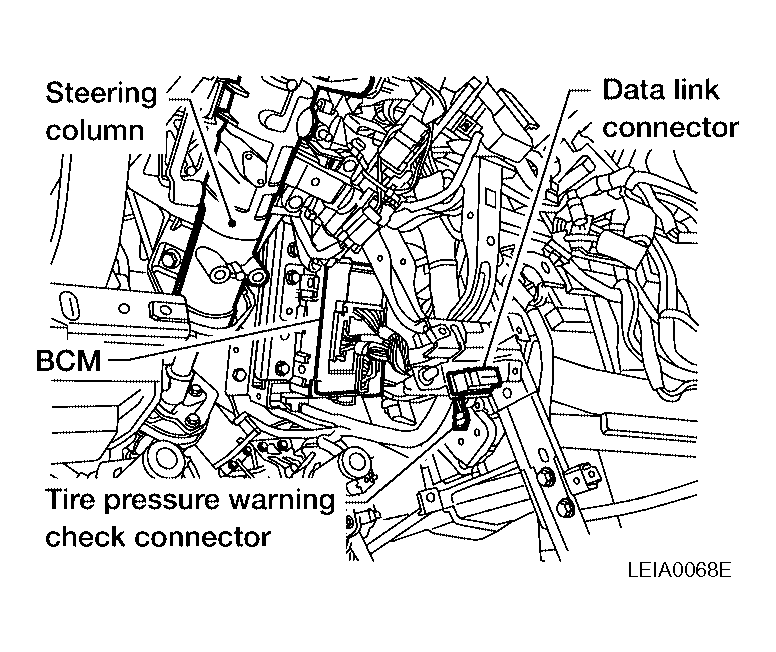

    Fig 1: Locating Connectors And BCM
    G04136587Courtesy of NISSAN MOTOR CO., U.S.A.
