Cross-Sectional View (VK45DE Models for 2WD)
Cross-Sectional View (VK45DE Models for 2WD)

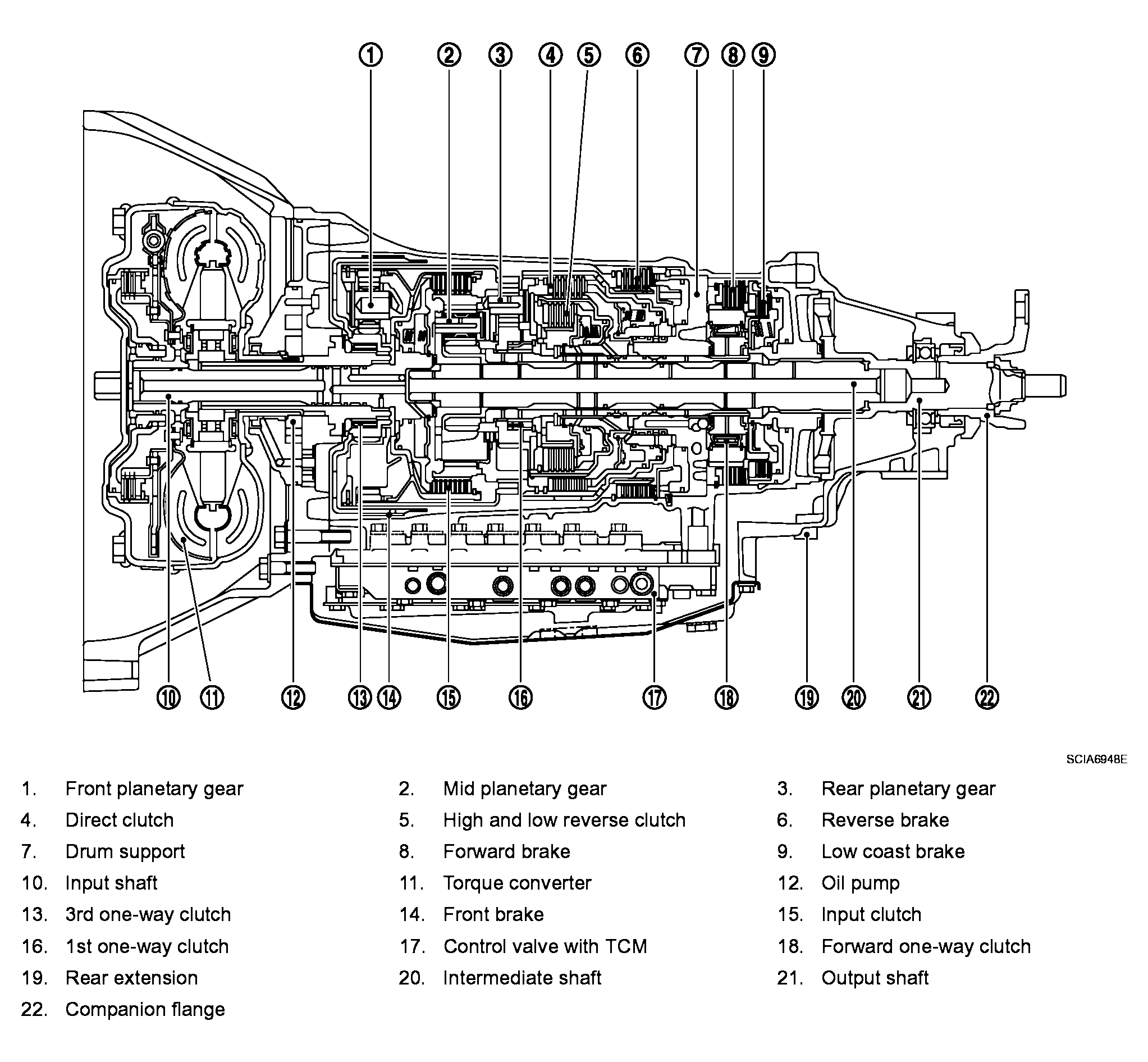

Fig 1: A/T Control System Cross-Sectional View (VK45DE Models For 2WD)
Courtesy of NISSAN MOTOR CO., U.S.A.
